YR22

Toyota VAN · 1985 · 4,905 parts · 171 categories
YR22 ×

← Back to categories

4,905 items

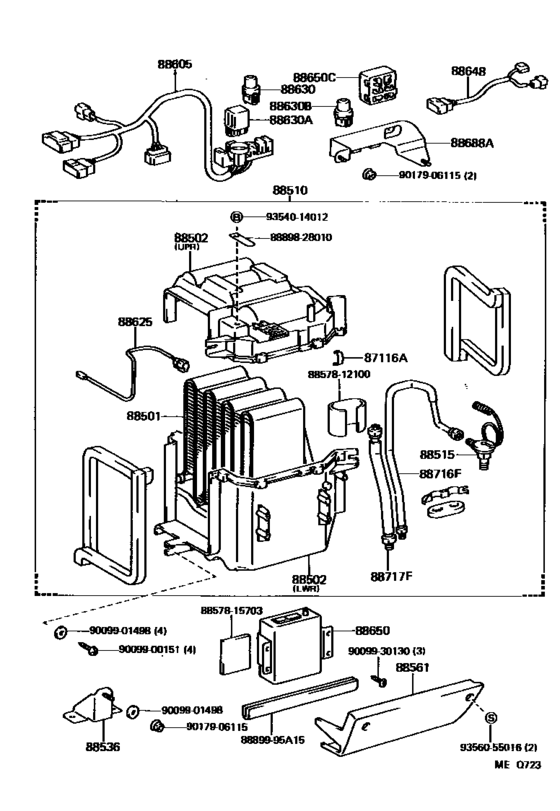

Heating & Air Conditioning - Cooler Unit ([08.1988 - ] FRONT,DEALER OPTION (8808- )YR2#,31) 54
#OEMPart name
87116 87116-14010 Spring, Heater Case Fastening
88501 88501-28011 Evaporator Sub-Assy, Cooler, No.1
88501 88501-87008 Evaporator Sub-Assy, Cooler, No.1
88501 88501-87011 Evaporator Sub-Assy, Cooler, No.1
88502 88502-28060 Case Sub-Assy, Cooling Unit
88502 88502-28330 Case Sub-Assy, Cooling Unit
88502 88502-28070 Case Sub-Assy, Cooling Unit
88502 88502-28080-24 Case Sub-Assy, Cooling Unit
88502 88502-28080-26 Case Sub-Assy, Cooling Unit
88510 88510-28111 Unit Assy, Cooler
88510 88510-28160 Unit Assy, Cooler
88510 88510-28131 Unit Assy, Cooler
88510 88510-87011 Unit Assy, Cooler
88510 88510-28360 Unit Assy, Cooling (Rear)
88510 88510-28121 Unit Assy, Cooler
88515 88515-87002 Valve, Cooler Expansion
88515 88515-87003 Valve, Cooler Expansion
88515 88515-87004 Valve, Cooler Expansion
88536 88536-28010 Bracket, Cooling Unit, No.1
88561 88899-28010 Cover, Cooler Unit
88605 88605-28131 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-28170 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-28141 Harness Sub-Assy, Cooler Wiring, No.1
88625 88625-20060 Thermistor, Cooler, No.1
88625 88625-87001 Thermistor, Cooler, No.1
88625 88625-87003 Thermistor, Cooler, No.1
88625 88625-95A00 Thermistor, Cooler, No.1
88625 88625-28150 Thermistor, Cooler No.2
88630 90987-03001 Relay
88630 85913-30020 Relay, Ignition, No.1
88630 90987-04002 Relay, Ignition, No.1
88630 88630-95702 Relay, Heater Radiator
88648 88648-28060 Wiring, Cooler, No.1
88650 88650-14051 Amplifier Assy, Cooler Stabilizer
88650 88650-28010 Amplifier Assy, Cooler Stabilizer
88650 88650-87011 Amplifier Assy, Cooler Stabilizer
88650 88650-28020 Amplifier Assy, Cooler Stabilizer
88688 88688-28060 Bracket, Cooler Stabilizer Amplifier
88716 88716-28120 Pipe, Cooler Refrigerant Liquid, F
88716 88716-87042 Pipe, Cooler Refrigerant Liquid, F
88717 88717-28110 Pipe, Cooler Refrigerant Suction, F
88717 88717-87036 Pipe, Cooler Refrigerant Suction, F
8889995 88899-95A15 Cover, Evaporator
8857812100 88578-12100 Packing, Cooling Unit, No.1
8857812100 88578-30360 Packing, Cooler Pipe, No.1
8857815703 88578-15703 Paking, Cooler Air Duct
8889828010 88898-28010 Clamp (for Cooler Relay)
8889828010 88569-87003 Clamp (for Cooler Relay)
9009900151 90099-00151 New Genuine Part
9009901498 90099-01498 New Genuine Part
9009930130 90099-30130 New Genuine Part
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9354014012 93540-14012 Screw
9356055016 93560-55016 Screw(For Mat Set Plate)
