YR20

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1982 · 5,198 parts · 200 categories

5,198 items

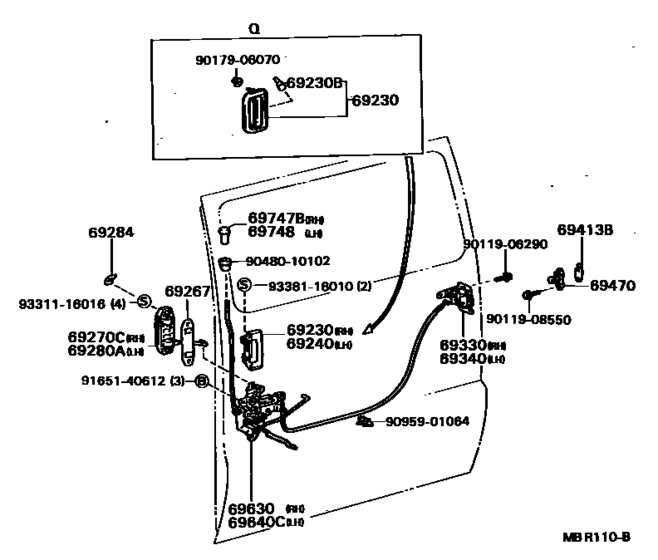

Rear Door Lock & Handle ([08.1988 - ] (8808- )) 25

#	OEM	Part name
69240	69240-87002	Handle Assy, Front Door Outside, Lh
69267	69267-87001	Seal, Slide Door Inside Handle, No.1
69280	69280-87001-06	Handle Assy, Slide Door, Inside Lh
69280	69280-87001-13	Handle Assy, Slide Door, Inside Lh
69284	69284-87001-13	Plug, Slide Door Inside Handle
69284	69284-87001-16	Plug, Slide Door Inside Handle
69340	69340-87001	Lock Assy, Slide Door, Lh
69413	69413-87002	Shim, Door Lock Striker
69413	69413-28020	Shim, Door Lock Striker
69470	69470-87001	Plate Assy, Slide Door Lock Striker
69470	69470-46010	Plate Assy, Slide Door Lock Striker
69640	69640-87004	Control Assy, Slide Door Lock Remote
69748	69743-87001	Button, Door Locking(For Rear Door)
69748	69747-87701	Button, Door Locking(For Slide Door)
9011906290	90119-06290	New Genuine Part
9011908550	90119-08550	New Genuine Part
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9048010102	90480-10102	Grommet(For Door Panel Lock Button)
9048010102	90480-10102-01	Grommet(For Rear Door Panel Lock Button)
9095901064	90959-01064	New Genuine Part
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part
9331116016	93311-16016	SCREW
9338116010	93381-16010	New Genuine Part

OEM	Part name	Category
69240-87002	Handle Assy, Front Door Outside, Lh	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69267-87001	Seal, Slide Door Inside Handle, No.1	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69280-87001-06	Handle Assy, Slide Door, Inside Lh	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69280-87001-13	Handle Assy, Slide Door, Inside Lh	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69284-87001-13	Plug, Slide Door Inside Handle	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69284-87001-16	Plug, Slide Door Inside Handle	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69340-87001	Lock Assy, Slide Door, Lh	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69413-28020	Shim, Door Lock Striker	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69413-87002	Shim, Door Lock Striker	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69470-46010	Plate Assy, Slide Door Lock Striker	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69470-87001	Plate Assy, Slide Door Lock Striker	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69640-87004	Control Assy, Slide Door Lock Remote	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69743-87001	Button, Door Locking(For Rear Door)	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
69747-87701	Button, Door Locking(For Slide Door)	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
90080-11225	New Genuine Part	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
90119-06290	New Genuine Part	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
90119-08550	New Genuine Part	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
90480-10102	Grommet(For Door Panel Lock Button)	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
90480-10102-01	Grommet(For Rear Door Panel Lock Button)	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
90959-01064	New Genuine Part	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
91651-40612	BOLT	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
93311-16016	SCREW	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
93381-16010	New Genuine Part	Rear Door Lock & Handle ([08.1988 - ] (8808- ))
