YR20

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1982 · 5,198 parts · 200 categories

← Back to categories

5,198 items

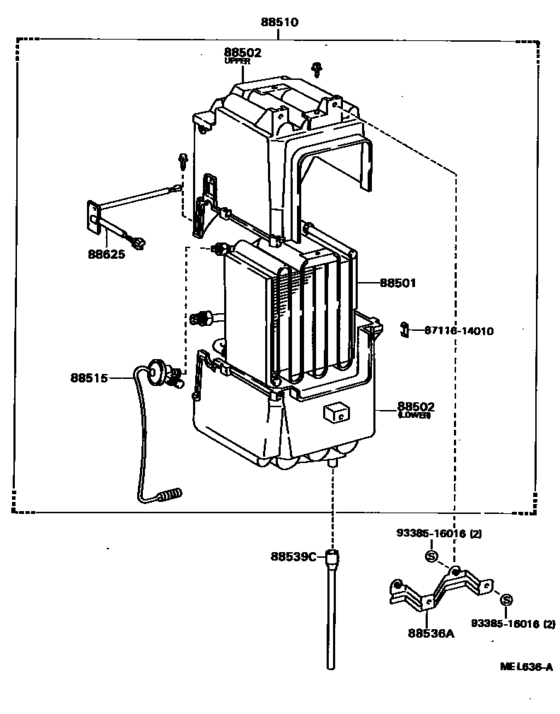

Heating & Air Conditioning - Cooler Unit ([08.1988 - ] REAR (8808- )E,G,Q) 17

#	OEM	Part name
88501	88501-87011	Evaporator Sub-Assy, Cooler, No.1
88501	88501-87012	Evaporator Sub-Assy, Cooler, No.1
88502	88305-87001	Case Sub-Assy, Cooling Unit
88502	88305-87002	Case Sub-Assy, Cooling Unit
88502	88502-28020	Case Sub-Assy, Cooling Unit
88502	88502-28090	Case Sub-Assy, Cooling Unit
88510	88510-87011	Unit Assy, Cooler
88510	88510-28360	Unit Assy, Cooling (Rear)
88510	88510-87038	Unit Assy, Cooler
88515	88515-87002	Valve, Cooler Expansion
88515	88515-87004	Valve, Cooler Expansion
88536	88536-87014	Bracket, Cooling Unit, No.2
88539	88539-95701	Hose, Cooler Unit Drain, No.1
88625	88625-95A00	Thermistor, Cooler, No.1
88625	88625-28150	Thermistor, Cooler No.2
8711614010	87116-14010	Spring, Heater Case Fastening
9338516016	93385-16016	New Genuine Part

OEM	Part name	Category
87116-14010	Spring, Heater Case Fastening	Heating & Air Conditioning - Cooler Unit ([08.1988 - ] REAR (8808- )E,G,Q)
88305-87001	Case Sub-Assy, Cooling Unit	Heating & Air Conditioning - Cooler Unit ([08.1988 - ] REAR (8808- )E,G,Q)
88305-87002	Case Sub-Assy, Cooling Unit	Heating & Air Conditioning - Cooler Unit ([08.1988 - ] REAR (8808- )E,G,Q)
88501-87011	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([08.1988 - ] REAR (8808- )E,G,Q)
88501-87012	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([08.1988 - ] REAR (8808- )E,G,Q)
88502-28020	Case Sub-Assy, Cooling Unit	Heating & Air Conditioning - Cooler Unit ([08.1988 - ] REAR (8808- )E,G,Q)
88502-28090	Case Sub-Assy, Cooling Unit	Heating & Air Conditioning - Cooler Unit ([08.1988 - ] REAR (8808- )E,G,Q)
88510-28360	Unit Assy, Cooling (Rear)	Heating & Air Conditioning - Cooler Unit ([08.1988 - ] REAR (8808- )E,G,Q)
88510-87011	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([08.1988 - ] REAR (8808- )E,G,Q)
88510-87038	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([08.1988 - ] REAR (8808- )E,G,Q)
88515-87002	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([08.1988 - ] REAR (8808- )E,G,Q)
88515-87004	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([08.1988 - ] REAR (8808- )E,G,Q)
88536-87014	Bracket, Cooling Unit, No.2	Heating & Air Conditioning - Cooler Unit ([08.1988 - ] REAR (8808- )E,G,Q)
88539-95701	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Cooler Unit ([08.1988 - ] REAR (8808- )E,G,Q)
88625-28150	Thermistor, Cooler No.2	Heating & Air Conditioning - Cooler Unit ([08.1988 - ] REAR (8808- )E,G,Q)
88625-95A00	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([08.1988 - ] REAR (8808- )E,G,Q)
93385-16016	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([08.1988 - ] REAR (8808- )E,G,Q)

Source: Public OEM parts-catalog data
Variants: 2 / 23
Category: 200
Collected: 2026-08-04
