Search › Model › YR20

YR20

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1982 · 5,198 parts · 200 categories

← Back to categories

5,198 items

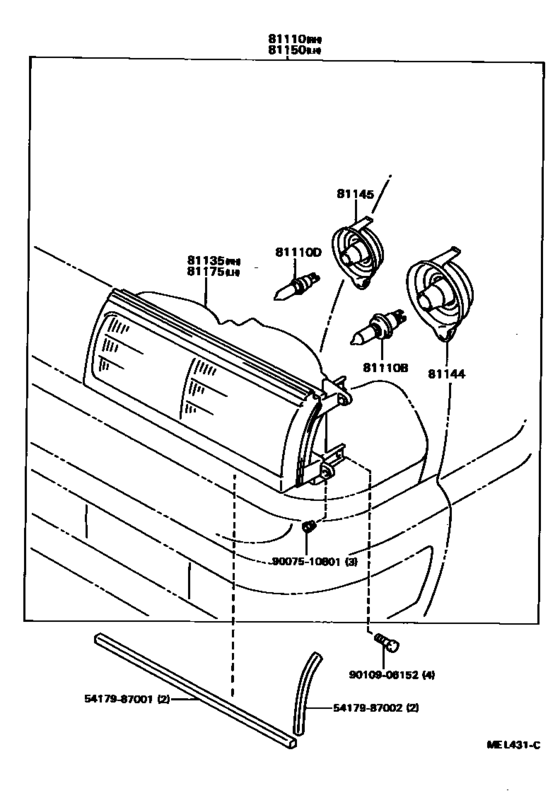

Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#) 19

#	OEM	Part name
81110	81110-87017	Headlamp Assy, Rh
81110	81110-87019	Headlamp Assy, Rh
81110	90981-13015	Bulb(For Headlamp, No.1)
81110	90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)
81110	90981-13027	Bulb(For Headlamp, No.2)
81135	81130-87017	Unit Assy, Headlamp, Rh
81135	81130-87019	Unit Assy, Headlamp, Rh
81144	81139-20730	Cover, Headlamp, No.1
81145	90075-99013	Cover, Headlamp, No.2
81150	81150-87017	Headlamp Assy, Lh
81150	81150-87019	Headlamp Assy, Lh
81175	81170-87017	Unit Assy, Headlamp, Lh
81175	81170-87019	Unit Assy, Headlamp, Lh
5417987001	54179-87001	New Genuine Part
5417987002	54179-87002	New Genuine Part
5417987002	54179-87004	New Genuine Part
9007510801	90075-10801	New Genuine Part
9007510801	90189-06111	CLIP
9010906152	90109-06152	New Genuine Part

OEM	Part name	Category
54179-87001	New Genuine Part	Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#)
54179-87002	New Genuine Part	Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#)
54179-87004	New Genuine Part	Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#)
81110-87017	Headlamp Assy, Rh	Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#)
81110-87019	Headlamp Assy, Rh	Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#)
81130-87017	Unit Assy, Headlamp, Rh	Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#)
81130-87019	Unit Assy, Headlamp, Rh	Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#)
81139-20730	Cover, Headlamp, No.1	Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#)
81150-87017	Headlamp Assy, Lh	Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#)
81150-87019	Headlamp Assy, Lh	Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#)
81170-87017	Unit Assy, Headlamp, Lh	Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#)
81170-87019	Unit Assy, Headlamp, Lh	Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#)
90075-10801	New Genuine Part	Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#)
90075-99013	Cover, Headlamp, No.2	Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#)
90109-06152	New Genuine Part	Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#)
90189-06111	CLIP	Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#)
90981-13015	Bulb(For Headlamp, No.1)	Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#)
90981-13027	Bulb(For Headlamp, No.2)	Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#)
90981-13058	Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)	Headlamp ([08.1988 - ] ﾏｽﾀｴｰｽ (8808- )CR21,28,30,37,YR20,21,28,3#)

Source: Public OEM parts-catalog data
Variants: 2 / 23
Category: 200
Collected: 2026-08-04
