YR20

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1982 · 5,198 parts · 200 categories
YR20 ×

← Back to categories

5,198 items

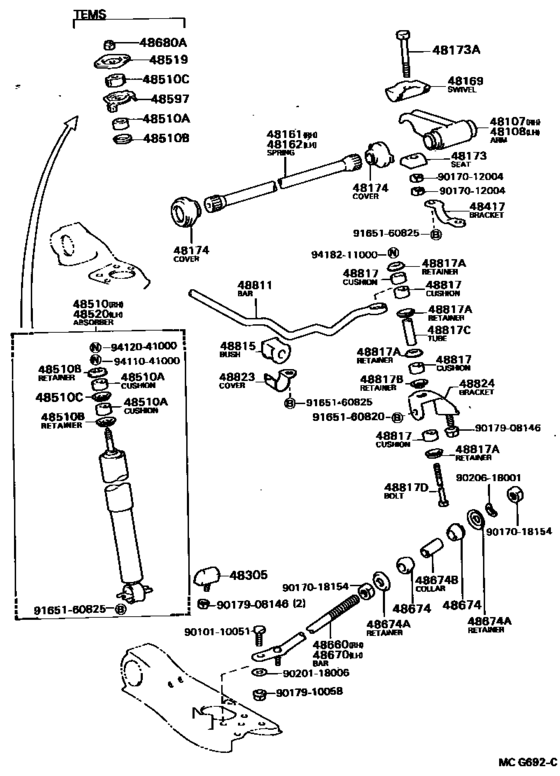

Front Spring & Shock Absorber ([08.1988 - 08.1990] (8808-9008)CR2#,KR26,YR2# ; (9008- )CR2#,KR27 ,YR2#) 64
#OEMPart name
48107 48107-28010 Arm Sub-Assy, Anchor, Rh
48107 48107-27060 Arm Sub-Assy, Anchor, Rh
48107 48175-27030 Cover, Torsion Bar Dust
48108 48108-28010 Arm Sub-Assy, Anchor, Lh
48108 48108-27060 Arm Sub-Assy, Anchor, Lh
48161 48161-28020 Spring, Torsion Bar, Rh
48161 48161-28030 Spring, Torsion Bar, Rh
48162 48162-28020 Spring, Torsion Bar, Lh
48162 48162-28030 Spring, Torsion Bar, Lh
48169 48169-28010 Swivel, Anchor Arm
48173 48173-27010 Seat, Anchor Arm Adjuster
48173 90101-12096 Bolt, Hexagon(For Anchor Arm Adjusting)
48174 48174-27010 Cover, Torsion Bar Dust
48174 48175-27010 Cover, Torsion Bar Dust
48305 48305-30030 Bumper Sub-Assy, Front Spring, No.2
48417 48417-28030 Bracket, Spring
48510 48500-29385 Absorber Assy, Shock, Front Rh
48510 48500-29546 Absorber Assy, Shock, Front Rh
48510 48500-29405 Absorber Assy, Shock, Front Rh
48510 48500-29406 Absorber Assy, Shock, Front Rh
48510 90948-01003 Rubber Cushion
48510 90948-01029 Cushion, Front Shock Absorber
48510 90948-01032 Cushion, Front Shock Absorber
48510 90948-02002 Retainer, Steering Damper Cushion
48510 90948-02070 Retainer, Cushion, No.1(For Front Shock Absorber)
48510 90948-02076 Retainer, Cushion, No.1(For Front Shock Absorber)
48510 90948-01039 Retainer, Cushion, No.2(For Front Shock Absorber)
48510 90948-02105 Retainer, Cushion, No.1(For Front Shock Absorber)
48519 48519-28010 Bracket, Actuator Support, Front
48597 48597-28010 Retainer, Shock Absorber Cushion
48660 48660-28020 Bar Assy, Strut, Rh
48670 48670-28020 Bar Assy, Strut, Lh
48674 48674-22021 Cushion, Strut Bar
48674 90948-02030 Retainer, Cushion(For Strut Bar Cushion)
48674 90387-18002 Collar(For Strut Bar Cushion)
48680 94187-11200 Nut
48680 90177-12002 Nut
48811 48811-28080 Bar, Stabilizer, Front
48815 48815-30100 Bush, Front Stabilizer Bar, No.1
48817 90948-01002 Cushion
48817 90948-02004 Cushion Retainer
48817 90948-02005 Retainer No.2
48817 90440-14004 Collar(For Stabilizer Bar)
48817 90101-10090 Bolt(For Front Stabilizer)
48823 48824-28061 Cover, Stabilizer Link(For Front)
48824 48824-27030 Bracket, Stabilizer, Front
48824 48829-27030 Bracket, Stabilizer, Front
9010110051 90101-10051 Bolt, Hexagon (For Lower Ball Joint Set)
9017012004 90170-12004 NUT
9017018154 90170-18154 New Genuine Part
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9017910058 90179-10058 NUT
9017910058 90179-10213 NUT W/WASHER
9020118006 90201-18006 New Genuine Part
9020618001 90206-18001 WASHER
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9165160825 91651-60825 Bolt, Hexagon(For Steering Column Bracket)
9165160825 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9411041000 94110-41000 Nut(For Steering Damper)
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
9418211000 94182-11000 Nut(For Front Support To Front Shock Absorber)
