Search › Model › YN63
YN63

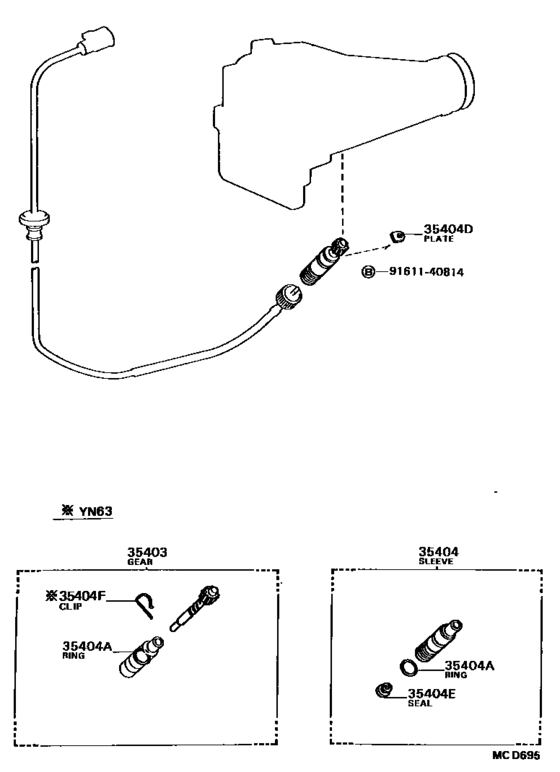

Speedometer Driven Gear (Atm) ([08.1983 - ] (8308- )4FC) 9
| # | OEM | Part name |
|---|---|---|
| 35403 | 33482-29055 | Gear Sub-Assy, Speedometer Driven (Mtm) |
| 35404 | 33404-35010 | Sleeve Sub-Assy, Speedometer Shaft (Mtm) |
| 35404 | 90301-18004 | Ring, O (For Atm Speedometer Driven Hole Cover) |
| 35404 | 90301-18018 | Ring, O (For Atm Speedometer Driven Hole Cover) |
| 35404 | 33485-30020 | Plate, Speedometer Sleeve Lock (For Atm) |
| 35404 | 90310-09001 | Seal, Oil (For Mtm Speedometer Shaft Sleeve) |
| 35404 | 90468-12005 | Clip (For Mtm Speedometer Shaft Sleeve) |
| 9161140814 | 91611-40814 | Bolt(For Manual Transmission Oil Pan Setting) |
| 9161140814 | 91611-60814 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 33404-35010 | Sleeve Sub-Assy, Speedometer Shaft (Mtm) | Speedometer Driven Gear (Atm) ([08.1983 - ] (8308- )4FC) |
| 33482-29055 | Gear Sub-Assy, Speedometer Driven (Mtm) | Speedometer Driven Gear (Atm) ([08.1983 - ] (8308- )4FC) |
| 33485-30020 | Plate, Speedometer Sleeve Lock (For Atm) | Speedometer Driven Gear (Atm) ([08.1983 - ] (8308- )4FC) |
| 90301-18004 | Ring, O (For Atm Speedometer Driven Hole Cover) | Speedometer Driven Gear (Atm) ([08.1983 - ] (8308- )4FC) |
| 90301-18018 | Ring, O (For Atm Speedometer Driven Hole Cover) | Speedometer Driven Gear (Atm) ([08.1983 - ] (8308- )4FC) |
| 90310-09001 | Seal, Oil (For Mtm Speedometer Shaft Sleeve) | Speedometer Driven Gear (Atm) ([08.1983 - ] (8308- )4FC) |
| 90468-12005 | Clip (For Mtm Speedometer Shaft Sleeve) | Speedometer Driven Gear (Atm) ([08.1983 - ] (8308- )4FC) |
| 91611-40814 | Bolt(For Manual Transmission Oil Pan Setting) | Speedometer Driven Gear (Atm) ([08.1983 - ] (8308- )4FC) |
| 91611-60814 | Bolt | Speedometer Driven Gear (Atm) ([08.1983 - ] (8308- )4FC) |
