Search › Model › YN61G

YN61G

Toyota HILUX-4RUNNER-TRUCK · 1986 · 5,445 parts · 170 categories

5,445 items

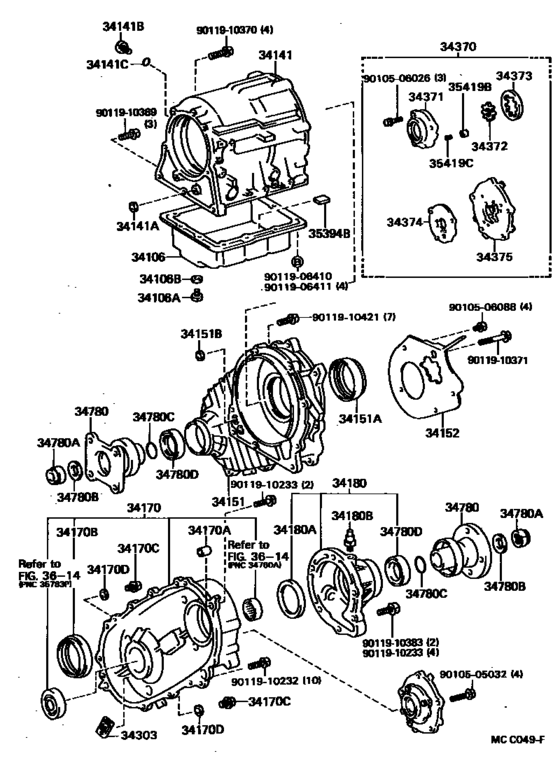

Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC) 50

#	OEM	Part name
34106	34106-35010	Pan Sub-Assy, Transfer Oil
34106	90341-10006	Plug (For Transfer Oil Pan)
34106	90341-10011	Drain Plug (No Type)
34106	35178-30010	Drain Plug Gasket
34141	34141-35010	Case, Automatic Transfer
34141	35148-16010	Gasket (For Automatic Transfer Case)
34141	90341-08001	Plug, Transaxle Case, No.1
34141	90301-06196	O Ring, Transaxle Case, No.1
34151	34151-35020	Case, Transfer Chain, Front
34151	90316-58002	Seal, Oil (For Transfer Chain Case)
34152	34152-35010	Receiver, Transfer Chain Oil
34170	34170-35020	Case Assy, Transfer Chain, Rear
34170	90250-13003	Pin, Straight (For Transfer Chain Case)
34170	90341-18021	Plug, Filler(Hv)
34170	90341-18049	Plug(For Oil Heater Houl)
34170	90430-18008	Gasket
34170	90430-T0021	Gasket(For Manual Transmission Filler Plug)
34180	34180-35010	Housing Assy, Transfer Extension
34180	34182-35010	Receiver, Extension Housing Oil
34180	34182-35011	Receiver, Extension Housing Oil
34180	90930-03031	Plug, Breather(For Parking Cover)
34303	34303-35010	Strainer Sub-Assy, Transfer Oil
34370	34370-35010	Pump Assy, Transfer Oil
34371	34371-35010	Body, Automatic Transfer Oil Pump
34372	34372-35010	Gear, Transfer Oil Pump Drive
34373	34373-35010	Gear, Transfer Oil Pump Driven
34374	34374-35010	Plate, Automatic Transfer Oil Pump
34375	34375-35010	Cover, Automatic Transfer Oil Pump
34780	34780-35010	Yoke Assy, Flange
34780	34780-35020	Yoke Assy, Flange
34780	90179-20001	Nut (For Manual Transmission Output Shaft Rear Set)
34780	90201-20005	Washer, Plate (For Flange Yoke)
34780	90301-26190	Ring, O (For Flange Yoke)
34780	90316-40001	Seal, Oil (For Flange Yoke)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
35419	35419-35010	Valve, Check
35419	90501-06015	Spring, Compression (For Check Valve)
9010505032	90105-05032	New Genuine Part
9010506026	90105-06026	Bolt (For Transaxle Case Upper Cover)
9010506026	91511-H0620	Bolt (For Transaxle Case Upper Cover)
9010506088	90105-06088	New Genuine Part
9011906410	90119-06410	Bolt (For Automatic Transmission Oil Pan)
9011906411	90119-06411	Bolt (For Automatic Transmission Oil Pan)
9011910232	90119-10232	Bolt (For Transmission Housing & Case Setting)
9011910233	90119-10233	New Genuine Part
9011910369	90119-10369	New Genuine Part
9011910370	90119-10370	New Genuine Part
9011910371	90119-10371	New Genuine Part
9011910383	90119-10383	New Genuine Part
9011910421	90119-10421	Bolt (For Transmission Housing & Case Setting)

OEM	Part name	Category
34106-35010	Pan Sub-Assy, Transfer Oil	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
34141-35010	Case, Automatic Transfer	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
34151-35020	Case, Transfer Chain, Front	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
34152-35010	Receiver, Transfer Chain Oil	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
34170-35020	Case Assy, Transfer Chain, Rear	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
34180-35010	Housing Assy, Transfer Extension	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
34182-35010	Receiver, Extension Housing Oil	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
34182-35011	Receiver, Extension Housing Oil	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
34303-35010	Strainer Sub-Assy, Transfer Oil	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
34370-35010	Pump Assy, Transfer Oil	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
34371-35010	Body, Automatic Transfer Oil Pump	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
34372-35010	Gear, Transfer Oil Pump Drive	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
34373-35010	Gear, Transfer Oil Pump Driven	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
34374-35010	Plate, Automatic Transfer Oil Pump	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
34375-35010	Cover, Automatic Transfer Oil Pump	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
34780-35010	Yoke Assy, Flange	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
34780-35020	Yoke Assy, Flange	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
35148-16010	Gasket (For Automatic Transfer Case)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
35178-30010	Drain Plug Gasket	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
35419-35010	Valve, Check	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90105-05032	New Genuine Part	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90105-06026	Bolt (For Transaxle Case Upper Cover)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90105-06088	New Genuine Part	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90119-06410	Bolt (For Automatic Transmission Oil Pan)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90119-06411	Bolt (For Automatic Transmission Oil Pan)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90119-10232	Bolt (For Transmission Housing & Case Setting)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90119-10233	New Genuine Part	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90119-10369	New Genuine Part	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90119-10370	New Genuine Part	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90119-10371	New Genuine Part	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90119-10383	New Genuine Part	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90119-10421	Bolt (For Transmission Housing & Case Setting)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90179-20001	Nut (For Manual Transmission Output Shaft Rear Set)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90201-20005	Washer, Plate (For Flange Yoke)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90250-13003	Pin, Straight (For Transfer Chain Case)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90301-06196	O Ring, Transaxle Case, No.1	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90301-26190	Ring, O (For Flange Yoke)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90316-40001	Seal, Oil (For Flange Yoke)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90316-58002	Seal, Oil (For Transfer Chain Case)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90341-08001	Plug, Transaxle Case, No.1	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90341-10006	Plug (For Transfer Oil Pan)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90341-10011	Drain Plug (No Type)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90341-18021	Plug, Filler(Hv)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90341-18049	Plug(For Oil Heater Houl)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90430-18008	Gasket	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90501-06015	Spring, Compression (For Check Valve)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
90930-03031	Plug, Breather(For Parking Cover)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
91511-H0620	Bolt (For Transaxle Case Upper Cover)	Transfer Case & Extension Housing ([08.1986 - ] (8608- )4FC)
