Search › Model › YN61G

YN61G

Toyota HILUX-4RUNNER-TRUCK · 1986 · 5,445 parts · 170 categories

5,445 items

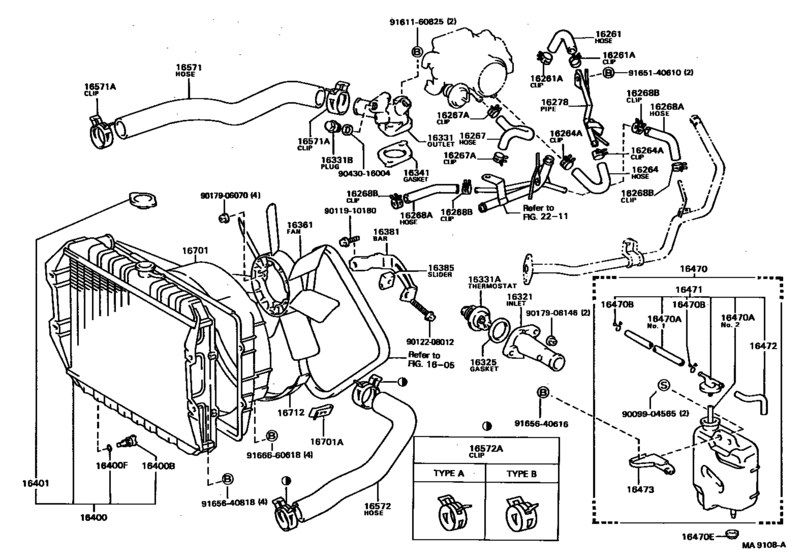

Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU) 58

#	OEM	Part name
16261	99556-10110	Hose, Water By-Pass
16261	99556-10200	Hose, Turbo Water, No.2
16261	90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	96135-51300	Clamp, Hose
16264	16264-73021	Hose, Water By-Pass, No.2
16267	16267-73010	Hose, Water By-Pass, No.3
16278	16278-73011	Pipe, Water By-Pass, No.2
16321	16321-71010	Inlet, Water
16325	16325-63010	Gasket, Water Inlet Housing, No.1
16325	16325-63011	Gasket, Water Inlet Housing, No.1
16331	16331-73010	Outlet, Water
16331	90916-03069	Thermostat
16331	90916-03046	Thermostat
16331	90341-16008	Plug(For Oil Heater Thermostat Hole)
16341	16341-71010	Gasket, Water Outlet
16341	16341-71011	Gasket, Water Outlet
16361	16361-38010	Fan
16381	16381-73011	Bar, Fan Belt Adjusting
16385	16385-71010	Slider, Fan Belt Adjusting
16400	16400-73250	Radiator Assy
16400	90910-09054	Plug, Radiator Drain Cock
16400	96711-19007	Packing(For Radiator Drain Cock)
16400	16400-73200	Radiator Assy
16400	16400-35350	Radiator Assy
16401	16401-63010	Cap Sub-Assy,
16470	16470-71030	Tank Assy, Radiator Reserve
16470	90445-12078	Hose(For Radiator Breather)
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16470	90480-25025	Grommet, Radiator Reserve Tank Hose
16471	16405-71010	Cap Sub-Assy, Reserve Tank
16472	85338-71030	Hose, Breather
16473	16473-71030	Support(For Radiator Reserve Tank)
16571	16571-71030	Hose, Radiator, Inlet
16571	90467-37001	Clip(For Water Inlet Hose)
16571	90467-37003	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-71031	Hose, Radiator, Outlet
16572	90467-37002	Clip(For Water Inlet Hose)
16572	90467-37005	Clip(For Water Inlet Hose)
16701	16711-71030	Shroud Sub-Assy, Fan
16701	90468-06013	Clip(For Fan Shroud)
16712	16712-54050	Shroud, Fan, No.2
9009904565	90099-04565	New Genuine Part
9011910180	90119-10180	Bolt (For Transfer Extension Rear Housing)
9012208012	90122-08012	BOLT
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9043016004	90430-16004	Gasket, Union Bolt
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9165140610	91651-40610	RIVET
9165640616	91656-40616	Bolt
9165640616	91651-60614	Bolt
9165640818	91656-40818	Clamp Or Clip, Hose(For Radiator Outlet No.1)
9165640818	91651-B0814	Bolt with washer
9166660618	91666-60618	New Genuine Part
9166660618	91661-B0614	New Genuine Part

OEM	Part name	Category
16264-73021	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16267-73010	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16278-73011	Pipe, Water By-Pass, No.2	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16321-71010	Inlet, Water	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16325-63010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16325-63011	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16331-73010	Outlet, Water	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16341-71010	Gasket, Water Outlet	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16341-71011	Gasket, Water Outlet	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16361-38010	Fan	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16381-73011	Bar, Fan Belt Adjusting	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16385-71010	Slider, Fan Belt Adjusting	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16400-35350	Radiator Assy	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16400-73200	Radiator Assy	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16400-73250	Radiator Assy	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16401-63010	Cap Sub-Assy,	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16405-71010	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16470-71030	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16473-71030	Support(For Radiator Reserve Tank)	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16571-71030	Hose, Radiator, Inlet	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16572-71031	Hose, Radiator, Outlet	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16711-71030	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
16712-54050	Shroud, Fan, No.2	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
85338-71030	Hose, Breather	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90099-04565	New Genuine Part	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90119-10180	Bolt (For Transfer Extension Rear Housing)	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90122-08012	BOLT	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90179-08146	Nut	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90179-08204	Nut	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90341-16008	Plug(For Oil Heater Thermostat Hole)	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90430-16004	Gasket, Union Bolt	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90445-12078	Hose(For Radiator Breather)	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90467-37001	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90467-37002	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90467-37003	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90467-37005	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90468-06013	Clip(For Fan Shroud)	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90480-25025	Grommet, Radiator Reserve Tank Hose	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90910-09054	Plug, Radiator Drain Cock	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90916-03046	Thermostat	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
90916-03069	Thermostat	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
91651-40610	RIVET	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
91651-60614	Bolt	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
91651-B0814	Bolt with washer	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
91656-40616	Bolt	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
91656-40818	Clamp Or Clip, Hose(For Radiator Outlet No.1)	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
91661-B0614	New Genuine Part	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
91666-60618	New Genuine Part	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
96135-51300	Clamp, Hose	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
96711-19007	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
99556-10110	Hose, Water By-Pass	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
99556-10200	Hose, Turbo Water, No.2	Radiator & Water Outlet ([08.1986 - ] (8608- )3YEU)
