Search › Model › YN135
YN135

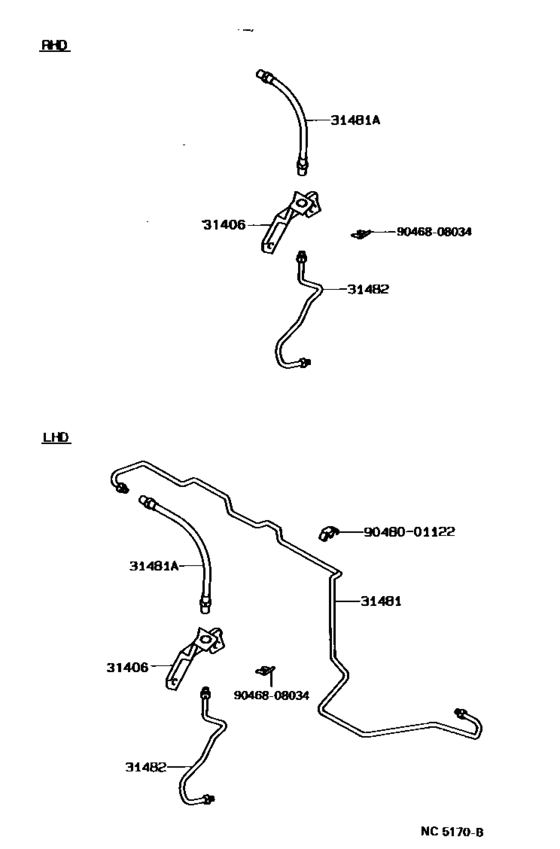

Clutch Pedal & Flexible Hose ([08.1988 - 08.1997] (8808-9708)YN106,135) 7
| # | OEM | Part name |
|---|---|---|
| 31406 | 31406-35010 | Bracket Sub-Assy, Flexible Hose |
| 31481 | 96812-50250 | Hose, Clutch, No.1 |
| 31481 | 31481-35310 | Tube, Clutch Master Cylinder To Flexible Hose |
| 31481 | 96814-50260 | Hose, Clutch, No.1 |
| 31482 | 31482-35260 | Tube, Clutch Release Cylinder To Flexible Hose |
| 9046808034 | 90468-08034 | CLIP |
| 9048001122 | 90480-01122 | Grommet(For Brake Tube) |
| OEM | Part name | Category |
|---|---|---|
| 31406-35010 | Bracket Sub-Assy, Flexible Hose | Clutch Pedal & Flexible Hose ([08.1988 - 08.1997] (8808-9708)YN106,135) |
| 31481-35310 | Tube, Clutch Master Cylinder To Flexible Hose | Clutch Pedal & Flexible Hose ([08.1988 - 08.1997] (8808-9708)YN106,135) |
| 31482-35260 | Tube, Clutch Release Cylinder To Flexible Hose | Clutch Pedal & Flexible Hose ([08.1988 - 08.1997] (8808-9708)YN106,135) |
| 90468-08034 | CLIP | Clutch Pedal & Flexible Hose ([08.1988 - 08.1997] (8808-9708)YN106,135) |
| 90480-01122 | Grommet(For Brake Tube) | Clutch Pedal & Flexible Hose ([08.1988 - 08.1997] (8808-9708)YN106,135) |
| 96812-50250 | Hose, Clutch, No.1 | Clutch Pedal & Flexible Hose ([08.1988 - 08.1997] (8808-9708)YN106,135) |
| 96814-50260 | Hose, Clutch, No.1 | Clutch Pedal & Flexible Hose ([08.1988 - 08.1997] (8808-9708)YN106,135) |
