YM65

Toyota LITE-TOWNACE · 1990 · 4,238 parts · 204 categories
YM65 ×

← Back to categories

4,238 items

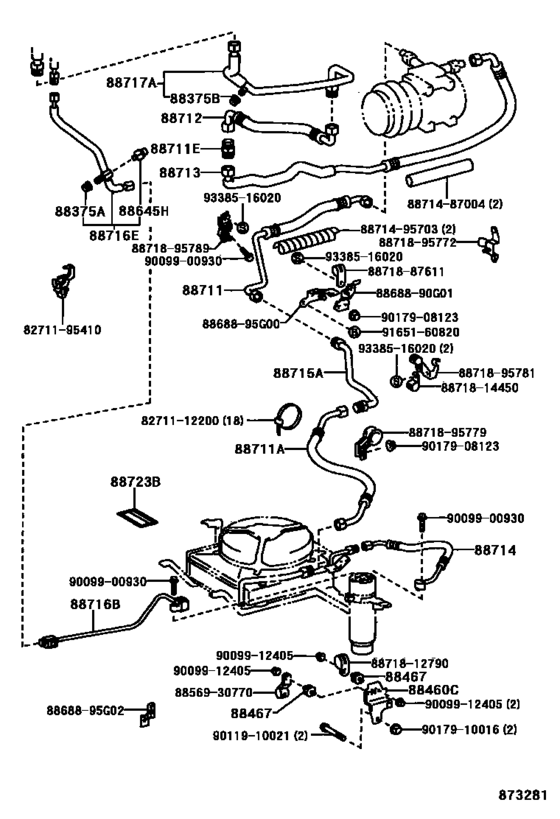

Heating & Air Conditioning - Cooler Piping ([10.1993 - ] (9310- )YM6#) 57
#OEMPart name
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88460 88688-95788 Bracket, Cooler Condenser, No.2
88467 88467-14040 Cushion, Cooler Condenser, No.1
88645 88645-10020 Switch, Pressure
88645 88645-34010 Switch, Pressure
88645 88645-04040 Switch, Pressure
88711 88711-27060 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-95743 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-27070 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-95742 Hose, Cooler Refrigerant Discharge, No.2
88711 90404-22005 Union, No.1(For Cooler Hose)
88712 88712-27060 Hose, Cooler Refrigerant Suction, No.1
88712 88712-95737 Hose, Cooler Refrigerant Suction, No.1
88713 88712-27070 Hose, Cooler Refrigerant Suction, No.2
88713 88712-95736 Hose, Cooler Refrigerant Suction, No.2
88714 88721-27050 Hose, Cooler Refrigerant Liquid, No.1
88714 88721-95714 Hose, Cooler Refrigerant Liquid, No.1
88715 88715-27060 Pipe, Cooler Refrigerant Discharge, A
88715 88715-95705 Pipe, Cooler Refrigerant Discharge, A
88716 88716-27110 Pipe, Cooler Refrigerant Liquid, B
88716 88716-95761 Pipe, Cooler Refrigerant Liquid, B
88716 88710-95701 Tube Assy, Air Conditioner
88716 88716-27090 Pipe, Cooler Refrigerant Liquid, E
88716 88716-95762 Pipe, Cooler Refrigerant Liquid, E
88717 88717-27040 Pipe, Cooler Refrigerant Suction, A
88717 88717-95750 Pipe, Cooler Refrigerant Suction, A
88723 88723-20010 Label, Cooler Service Caution
88723 88723-20030 Plate, Caution, No.1
88723 88733-30040 Label, Cooler Service Caution
8868890 88688-90G01 Bracket, Cooler Diaphragm
8868895 88688-95G00 Bracket, Cooler Diaphragm
8868895 88688-95G02 Bracket, Cooler Diaphragm
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
8271195410 82711-95410 Clamp, Choke Cable
8856930770 88569-30770 Clamp (for Cooler Relay)
8871487004 88714-87004 Insulator, Cooler Refrigerant Hose, No.1
8871487004 88714-24100 Insulator, Cooler Refrigerant Hose, No.2
8871495703 88714-95703 Insulator, Cooler Refrigerant Hose, No.1
8871495703 88714-16040 Insulator, Cooler Refrigerant Pipe, No.1
8871812790 88718-12790 Pipe, Cooler Refrigerant Suction, No.2
8871814450 88718-14450 Clamp(For Cooler Refrigerant Pipe), No.1
8871887611 88718-87611 Pipe, Cooler Refrigerant Suction, No.2
8871895772 88718-95772 Pipe, Cooler Refrigerant Suction, No.2
8871895779 88718-95779 Pipe, Cooler Refrigerant Suction, No.2
8871895781 88718-95781 Pipe, Cooler Refrigerant Suction, No.2
8871895789 88718-95789 Pipe, Cooler Refrigerant Suction, No.2
9009900930 90099-00930 New Genuine Part
9009912405 90099-12405 New Genuine Part
9011910021 90119-10021 Bolt, Hexagon(For Idler Arm Support Setting)
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9017910016 90179-10016 Nut(For Counter Gear Shaft)
9017910016 90179-10132 Nut
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9338516020 93385-16020 New Genuine Part
9338516020 93385-26020 New Genuine Part
