YM65

Toyota LITE-TOWNACE · 1990 · 4,238 parts · 204 categories
YM65 ×

← Back to categories

4,238 items

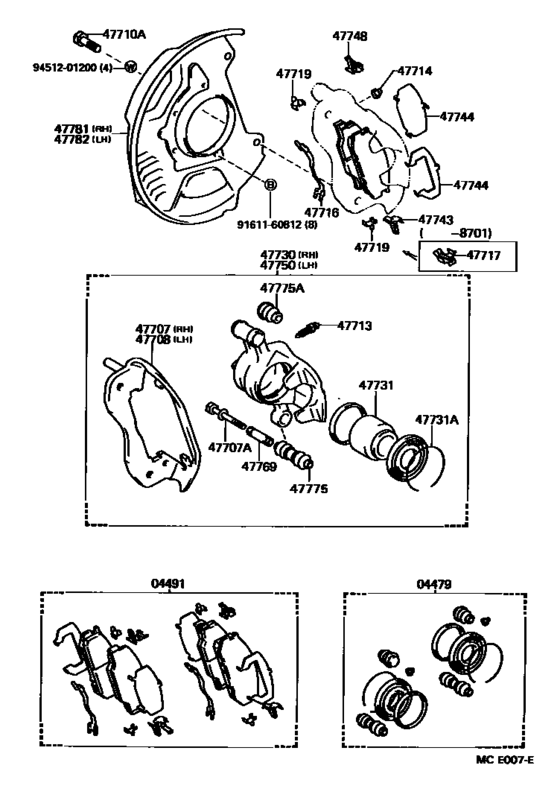

Front Disc Brake Caliper & Dust Cover ([10.1986 - 11.1991] (8610-9111)CM52,6#,YM6#) 31
#OEMPart name
4479 04479-28010 Cylinder Kit, Disc Brake, Front
4491 04491-27120 Pad Kit, Disc Brake, Front
4491 04465-27040 Pad Kit, Disc Brake, Front
47707 47707-27010 Plate Sub-Assy, Disc Brake Torque, Front Rh
47707 90119-08384 Bolt, Hexagon(For Front Disc Brake Torque Plate)
47708 47708-27010 Plate Sub-Assy, Disc Brake Torque, Front Lh
47710 90101-12123 Bolt, Hexagon(For Front Disc Brake Caliper)
47713 47547-27040 Plug, Bleeder(For Front Disc Brake)
47714 31478-30010 Bleeder Plug Cap
47716 47716-28020 Plate, Pad Support, No.1(For Front Disc Brake)
47719 47736-14030 Plate, Front Disc Brake Pad Guide
47730 47730-27050 Cylinder Assy, Front Disc Brake, Rh
47731 47731-28020 Piston, Front Disc Brake
47731 90522-67001 Ring, Set(For Front Disc Brake Piston)
47743 47743-14040 Spring, Anti-Rattle, No.2(For Front Disc Brake)
47743 47743-28010 Spring, Anti-Rattle, No.2(For Front Disc Brake)
47744 47744-14070 Shim, Anti-Squeal, No.1(For Front Disc Brake)
47744 47744-27020 Shim, Anti-Squeal, No.1(For Front Disc Brake)
47748 47748-14050 Spring, Anti-Rattle, No.2(For Rear Disc Brake)
47748 47748-28010 Spring, Anti-Rattle, No.1(For Front Disc Brake)
47750 47750-27050 Cylinder Assy, Disc Brake, Lh
47769 47769-28010 Bush, Cylinder Slide, No.1(For Front Disc Brake)
47775 47775-17010 Boot, Bush Dust(For Front Disc Brake)
47775 47776-14010 Boot, Pin
47781 47781-28080 Cover, Disc Brake Dust, Front Rh
47781 47781-28151 Cover Sub-Assy, Disc Brake Dust, Front Rh
47782 47782-28080 Cover, Disc Brake Dust, Front Lh
47782 47782-28151 Cover Sub-Assy, Disc Brake Dust, Front Lh
9161160812 91611-60812 Bolt(For Drive Plate & Torque Converter Setting)
9161160812 91611-B0812 Bolt
9451201200 94512-01200 Washer
