YM40

Toyota LITEACE · 1985 · 5,513 parts · 188 categories
YM40 ×

← Back to categories

5,513 items

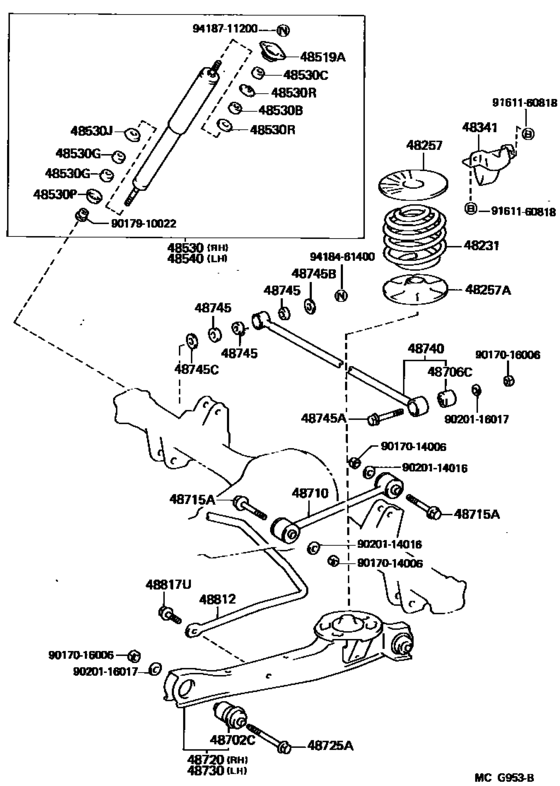

Rear Spring & Shock Absorber ([08.1988 - ] TEMS (8808- )FXV) 49
#OEMPart name
48231 48231-27050 Spring, Coil, Rear
48231 48231-27120 Spring, Coil, Rear
48231 48231-27160 Spring, Coil, Rear
48231 48231-27170 Spring, Coil, Rear
48257 48257-27010 Insulator, Rear Coil Spring
48257 48258-27010 Insulator, Rear Coil Spring, Lower
48341 48341-27070 Bumper, Rear Spring
48519 48519-30020 Bracket, Actuator Support, Front
48530 48531-80077 Absorber Assy, Shock, Rear Rh
48530 48531-80608 Absorber Assy, Shock, Rear Rh
48530 48531-80096 Absorber Assy, Shock, Rear Rh
48530 48531-80280 Absorber Assy, Shock, Rear
48530 48531-80624 Absorber Assy, Shock, Rear
48530 48531-80281 Absorber Assy, Shock, Rear Rh
48530 90948-01033 Cushion, Front Shock Absorber, No.1
48530 90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)
48530 90948-01034 Cushion, Front Shock Absorber, No.1
48530 90948-03007 Washer, Front Shock Absorber Cushion, No.1
48530 90540-10002 Bush(For Rear Shock Absorber)
48530 90540-10005 Bush(For Rear Shock Absorber)
48530 90948-02002 Retainer, Steering Damper Cushion
48530 90948-02045 Washer, Rear Shock Absorber Cushion, No.1
48530 90948-02091 Retainer, Cushion, No.1(For Front Shock Absorber)
48530 90948-02092 Retainer, Cushion, No.2(For Front Shock Absorber)
48702 48702-27040 Bush Sub-Assy, Lower Control Arm
48706 48706-22030 Bush Sub-Assy, Lateral Control Rod
48710 48710-27010 Arm Assy, Upper Control
48715 90105-14037 Bolt, Hexagon(For Upper Control Arm)
48720 48720-27020 Arm Assy, Lower Control, Rh
48725 90105-16025 Bolt(For Lower Control Arm)
48730 48730-27020 Arm Assy, Lower Control, Lh
48740 48740-27010 Rod Assy, Rear Lateral Control
48745 90385-20001 Bush Sub-Assy, Front Lateral Control Rod
48745 90386-20001 Bush Sub-Assy, Front Lateral Control Rod
48745 90105-16026 Bolt, Hexagon(For Lateral Control Rod)
48745 90201-15019 Washer, Plate, No.1(For Rear Lateral Control Rod)
48745 90201-24003 Washer, Lateral Control Rod Cushion
48812 48812-27050 Bar, Stabilizer, Rear
48817 90105-10236 Bolt(For Rear Stabilizer)
9017014006 90170-14006 Nut
9017016006 90170-16006 NUT
9017910022 90179-10022 Nut(For Rear Support To Rear Shock Absorber)
9020114016 90201-14016 WASHER
9020116017 90201-16017 WASHER
9161160818 91611-60818 Bolt(For Oil Receiver Pipe)
9161160818 90119-08830 Bolt(For Oil Receiver Pipe)
9418461400 94184-61400 Nut(For Idler Arm Support)
9418711200 94187-11200 Nut
9418711200 90177-12002 Nut
