YM40

Toyota LITEACE · 1985 · 5,513 parts · 188 categories
YM40 ×

← Back to categories

5,513 items

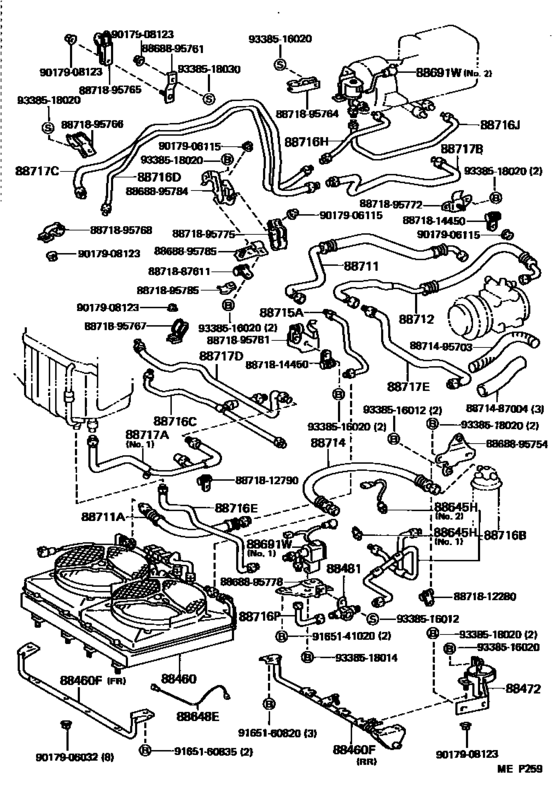

Heating & Air Conditioning - Cooler Piping ([08.1988 - ] (8808- )YM40) 80
#OEMPart name
88460 88460-95713 Condenser Assy, Cooler
88460 88688-95771 Bracket, Cooler Condenser, No.4
88460 88688-95776 Bracket, Cooler Condenser, No.4
88472 88472-95706 Bracket, Receiver Tank, No.1
88481 88481-87002 Glass Sub-Assy, Sight
88645 88645-10020 Switch, Pressure
88645 88645-95702 Switch, Pressure No.1
88648 88648-95721 Wiring, Cooler
88691 88690-95739 Valve, Magnet
88691 88690-95768 Valve, Magnet
88691 88690-95770 Valve, Magnet
88691 88690-95767 Valve, Magnet
88711 88711-95737 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-27190 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-95739 Hose, Cooler Refrigerant Discharge, No.2
88711 88711-27200 Hose, Cooler Refrigerant Discharge, No.2
88711 88711-95722 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-95723 Hose, Cooler Refrigerant Discharge, No.2
88712 88712-95732 Hose, Cooler Refrigerant Suction, No.1
88712 88712-27160 Hose, Cooler Refrigerant Suction, No.1
88712 88712-95721 Hose, Cooler Refrigerant Suction, No.1
88714 88721-95712 Hose, Cooler Refrigerant Liquid, No.1
88714 88721-27070 Hose, Cooler Refrigerant Liquid, No.1
88715 88715-95705 Pipe, Cooler Refrigerant Discharge, A
88716 88710-95703 Pipe, Cooler Refrigerant Liquid, B
88716 88710-95705 Pipe, Cooler Refrigerant Liquid, B
88716 88716-95703 Pipe, Cooler Refrigerant Liquid, B
88716 88716-95740 Pipe, Cooler Refrigerant Liquid, C
88716 88716-95772 Pipe, Cooler Refrigerant Liquid, C
88716 88716-95764 Pipe, Cooler Refrigerant Liquid, D
88716 88716-95738 Pipe, Cooler Refrigerant Liquid, E
88716 88716-95758 Pipe, Cooler Refrigerant Liquid, E
88716 88716-95769 Pipe, Cooler Refrigerant Liquid, H
88716 88716-95757 Pipe, Cooler Refrigerant Liquid, J
88716 88716-95723 Pipe, Cooler Refrigerant Liquid, P
88716 88716-95741 Pipe, Cooler Refrigerant Liquid, J
88717 88717-95741 Pipe, Cooler Refrigerant Suction, A
88717 88717-95751 Pipe, Cooler Refrigerant Suction, A
88717 88717-95753 Pipe, Cooler Refrigerant Suction, A
88717 88717-95726 Pipe, Cooler Refrigerant Suction, B
88717 88717-95737 Pipe, Cooler Refrigerant Suction, C
88717 88717-95733 Pipe, Cooler Refrigerant Suction, D
88717 88717-95755 Pipe, Cooler Refrigerant Suction, D
88717 88717-95725 Pipe, Cooler Refrigerant Suction, E
8868895754 88688-95754 Bracket, Cooler Diaphragm
8868895761 88688-95761 Bracket, Cooler Diaphragm
8868895778 88688-95778 Bracket, Cooler Diaphragm
8868895784 88688-95784 Bracket, Cooler Diaphragm
8868895785 88688-95785 Bracket, Cooler Diaphragm
8871487004 88714-87004 Insulator, Cooler Refrigerant Hose, No.1
8871487004 88714-24100 Insulator, Cooler Refrigerant Hose, No.2
8871495703 88714-95703 Insulator, Cooler Refrigerant Hose, No.1
8871495703 88714-16040 Insulator, Cooler Refrigerant Pipe, No.1
8871812280 88718-12280 Clamp(For Cooler Refrigerant Pipe), No.1
8871812790 88718-12790 Pipe, Cooler Refrigerant Suction, No.2
8871814450 88718-14450 Clamp(For Cooler Refrigerant Pipe), No.1
8871887611 88718-87611 Pipe, Cooler Refrigerant Suction, No.2
8871895764 88718-95764 Pipe, Cooler Refrigerant Suction, No.2
8871895765 88718-95765 Pipe, Cooler Refrigerant Suction, No.2
8871895766 88718-95766 Pipe, Cooler Refrigerant Suction, No.2
8871895767 88718-95767 Pipe, Cooler Refrigerant Suction, No.2
8871895768 88718-95768 Pipe, Cooler Refrigerant Suction, No.2
8871895772 88718-95772 Pipe, Cooler Refrigerant Suction, No.2
8871895775 88718-95775 Pipe, Cooler Refrigerant Suction, No.2
8871895781 88718-95781 Pipe, Cooler Refrigerant Suction, No.2
8871895785 88718-95785 Pipe, Cooler Refrigerant Suction, No.2
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9165141020 91651-41020 BOLT W-WASHER
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9338516012 93385-16012 New Genuine Part
9338516020 93385-16020 New Genuine Part
9338516020 93385-26020 New Genuine Part
9338518014 93385-18014 New Genuine Part
9338518020 93385-18020 New Genuine Part
9338518030 93385-18030 New Genuine Part
