YM35

Toyota LITEACE · 1985 · 4,166 parts · 187 categories
YM35 ×

← Back to categories

4,166 items

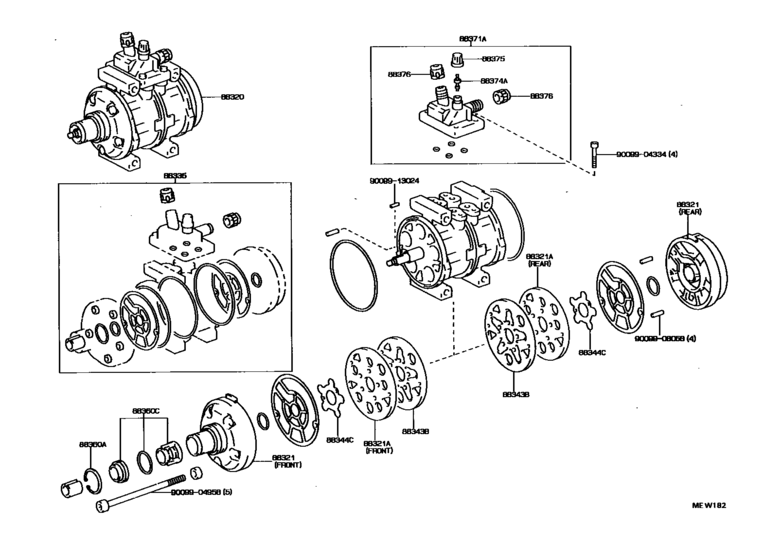

Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )YM30,35) 20
#OEMPart name
88320 88320-27060 Compressor Assy, Cooler
88321 88321-14011 Head, Cooler Compressor Cylinder
88321 88322-14011 Head, Cooler Compressor Cylinder
88321 88341-14010 Plate Sub-Assy, Valve
88321 88342-14010 Plate Sub-Assy, Valve
88343 88343-14011 Reed, Suction Valve
88344 88344-14011 Reed Sub-Assy, Valve
88360 90096-90022 Ring, Compressor Seal Plate Snap
88360 88360-40010 Seal Assy, Cooler Compressor Shaft
88360 88360-26020 Seal Assy, Cooler Compressor Shaft
88371 88371-27030 Valve, Cooler Compressor Suction Service
88374 88374-12020 Valve, Service, No.1
88374 88374-20020 Valve, Service, No.1
88375 88375-30270 Cap, Cooler Compressor Service Valve
88376 88376-26010 Cap, Blind
88376 88376-26020 Cap, Blind
9009904334 90099-04334 Bolt, Service Valve
9009904958 90099-04958 Bolt, Through
9009908058 90099-08058 Pin, Cylinder Block
9009913024 90099-13024 Key, Compressor Crankshaft
