YM30

Toyota LITEACE · 1985 · 4,160 parts · 179 categories
YM30 ×

← Back to categories

4,160 items

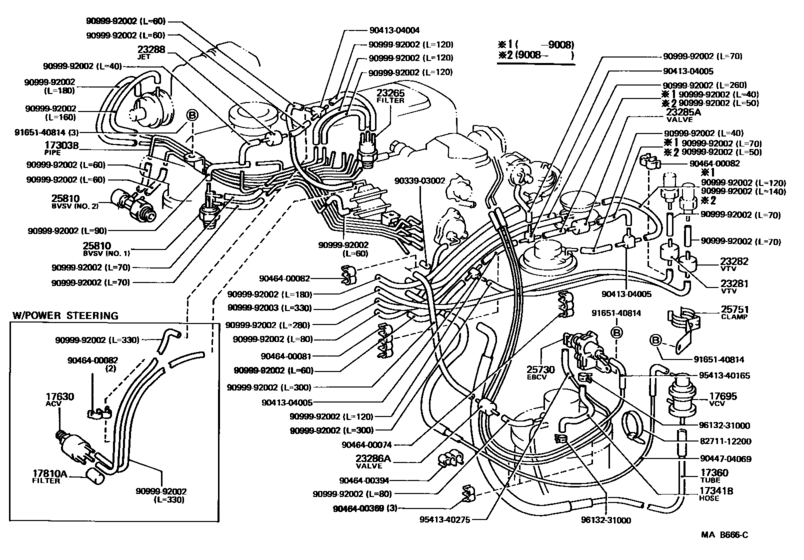

Vacuum Piping ([08.1988 - ] (8808- )2YC) 35
#OEMPart name
17303 17303-71011 Pipe Sub-Assy, Air, No.1
17341 17341-72020 Hose, No.1(For Air Injection System)
17360 17360-72010 Tube Assy, Air
17630 17630-28020 Valve Assy, Air Control
17695 90925-03182 Valve Assy, Vacuum Control
17695 90925-03165 Valve Assy, Vacuum Control - VACUUM CONTROL, NO.2
17810 90925-06007 Filter Assy, Air
23265 90917-11024 Filter, Gas, No.1
23265 90917-11027 Filter, Gas, No.1
23281 90925-01027 Valve, Vacuum Transmitting, No.1
23281 90925-01084 Valve, Vacuum Transmitting, No.1
23285 90917-10049 Valve, Check, No.1
23288 90925-04004 Valve, Vacuum Transmitting, No.1
25730 25730-72021 Valve Assy, Electric Bleed Air Control
25751 90929-01201 Clamp, Vacuum Control Valve, No.1
25810 25810-27010 Valve, Bimetal Vacuum Switching, No.1
25810 25820-37010 Valve Assy, Bimetal
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
9033903002 90339-03002 PLUG
9041304004 90413-04004 Way, 3(For Canister)
9041304005 90413-04005 Way, 3, No.1 (For Front Drive Shift)
9044704069 90447-04069 New Genuine Part
9046400074 90464-00074 Joint, No.1 (For Idle Up Divice)
9046400081 90464-00081 Clamp (For Idle Up Divice), No.1
9046400082 90464-00082 Clamp(For Resistive Cord)
9046400369 90464-00369 New Genuine Part
9046400394 90464-00394 New Genuine Part
9099992002 90999-92002 Air Hose (300 mm)
9099992003 90999-92003 Hose, Breather (For Transfer Case)
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9541340165 95413-40165 New Genuine Part
9541340275 95413-40275 New Genuine Part
9613231000 96132-31000 Clip(For Ventilation Tube)
9613231000 96132-41500 Clip(For Ventilation Tube)
