Search › Model › YM30
YM30

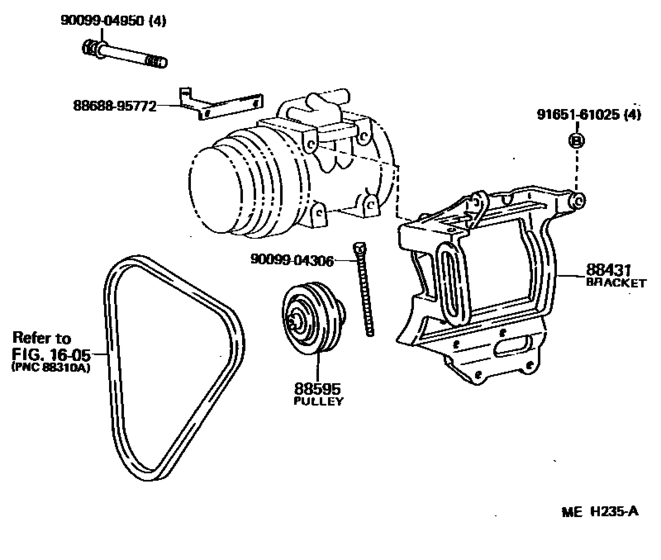

Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )YM3#) 6
| # | OEM | Part name |
|---|---|---|
| 88431 | 88431-28070 | Bracket, Compressor Mounting, No.1 |
| 88595 | 88440-35020 | Pulley Assy, Idle |
| 8868895772 | 88688-95772 | Bracket, Cooler Diaphragm |
| 9009904306 | 90099-04306 | Bolt, Idle Pulley |
| 9009904950 | 90099-04950 | BOLT |
| 9165161025 | 91651-61025 | Bolt with washer |
| OEM | Part name | Category |
|---|---|---|
| 88431-28070 | Bracket, Compressor Mounting, No.1 | Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )YM3#) |
| 88440-35020 | Pulley Assy, Idle | Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )YM3#) |
| 88688-95772 | Bracket, Cooler Diaphragm | Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )YM3#) |
| 90099-04306 | Bolt, Idle Pulley | Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )YM3#) |
| 90099-04950 | BOLT | Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )YM3#) |
| 91651-61025 | Bolt with washer | Heating & Air Conditioning - Compressor ([08.1988 - ] (8808- )YM3#) |
