Search › Model › YM30

YM30

Toyota LITEACE · 1985 · 4,160 parts · 179 categories

4,160 items

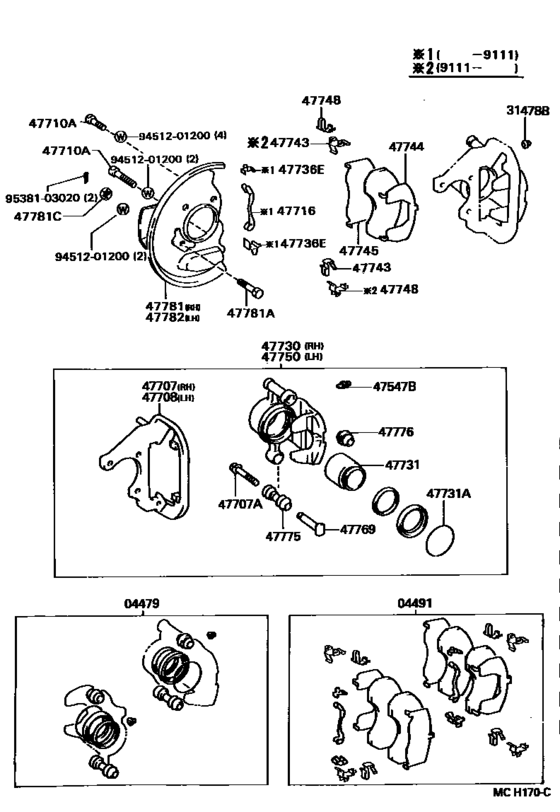

Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- )) 34

#	OEM	Part name
4479	04479-27010	Cylinder Kit, Disc Brake, Front
4491	04491-27090	Pad Kit, Disc Brake, Front
4491	04465-27010	Pad Kit, Disc Brake, Front
4491	04491-28260	Pad Kit, Disc Brake, Front
4945	04945-28120	Shim Kit, Anti Squeal, Front
4947	04947-14020	Fitting Kit, Disc Brake, Front
31478	31478-30010	Bleeder Plug Cap
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47707	47707-28060	Plate Sub-Assy, Disc Brake Torque, Front Rh
47707	90119-08384	Bolt, Hexagon(For Front Disc Brake Torque Plate)
47708	47708-28060	Plate Sub-Assy, Disc Brake Torque, Front Lh
47710	90101-12010	Bolt, Hexagon(For Front Disc Brake Caliper)
47710	90101-12030	Bolt, Hexagon(For Front Disc Brake Caliper)
47716	47716-28020	Plate, Pad Support, No.1(For Front Disc Brake)
47730	47730-27070	Cylinder Assy, Front Disc Brake, Rh
47731	47731-14090	Piston, Front Disc Brake
47731	90522-69002	Ring, Set(For Front Disc Brake Piston)
47736	47736-14030	Plate, Front Disc Brake Pad Guide
47743	47743-14040	Spring, Anti-Rattle, No.2(For Front Disc Brake)
47743	47743-28010	Spring, Anti-Rattle, No.2(For Front Disc Brake)
47744	47744-28020	Shim, Anti-Squeal, No.1(For Front Disc Brake)
47745	47744-28030	Shim, Anti-Squeal, No.1(For Front Disc Brake)
47748	47748-14050	Spring, Anti-Rattle, No.2(For Rear Disc Brake)
47748	47748-28010	Spring, Anti-Rattle, No.1(For Front Disc Brake)
47750	47750-27070	Cylinder Assy, Disc Brake, Lh
47769	47769-28010	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47775	47775-17010	Boot, Bush Dust(For Front Disc Brake)
47776	47776-14010	Boot, Pin
47781	47781-28060	Cover, Disc Brake Dust, Front Rh
47781	90102-12001	Bolt(For Backing Plate To Steering Knuckle Arm Setting)
47781	94145-71200	Nut(For Backing Plate To Steering Knuckle Arm Setting)
47782	47782-28060	Cover, Disc Brake Dust, Front Lh
9451201200	94512-01200	Washer
9538103020	95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)

OEM	Part name	Category
04465-27010	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
04479-27010	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
04491-27090	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
04491-28260	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
04945-28120	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
04947-14020	Fitting Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
31478-30010	Bleeder Plug Cap	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47547-20010	Plug, Bleeder(For Release Cylinder)	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47707-28060	Plate Sub-Assy, Disc Brake Torque, Front Rh	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47708-28060	Plate Sub-Assy, Disc Brake Torque, Front Lh	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47716-28020	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47730-27070	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47731-14090	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47736-14030	Plate, Front Disc Brake Pad Guide	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47743-14040	Spring, Anti-Rattle, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47743-28010	Spring, Anti-Rattle, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47744-28020	Shim, Anti-Squeal, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47744-28030	Shim, Anti-Squeal, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47748-14050	Spring, Anti-Rattle, No.2(For Rear Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47748-28010	Spring, Anti-Rattle, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47750-27070	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47769-28010	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47775-17010	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47776-14010	Boot, Pin	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47781-28060	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
47782-28060	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
90101-12010	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
90101-12030	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
90102-12001	Bolt(For Backing Plate To Steering Knuckle Arm Setting)	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
90119-08384	Bolt, Hexagon(For Front Disc Brake Torque Plate)	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
90522-69002	Ring, Set(For Front Disc Brake Piston)	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
94145-71200	Nut(For Backing Plate To Steering Knuckle Arm Setting)	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
94512-01200	Washer	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))
95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)	Front Disc Brake Caliper & Dust Cover ([08.1988 - ] (8808- ))

Source: Public OEM parts-catalog data
Variants: 2 / 13
Category: 179
Collected: 2026-08-04
