Search › Model › YM30
YM30

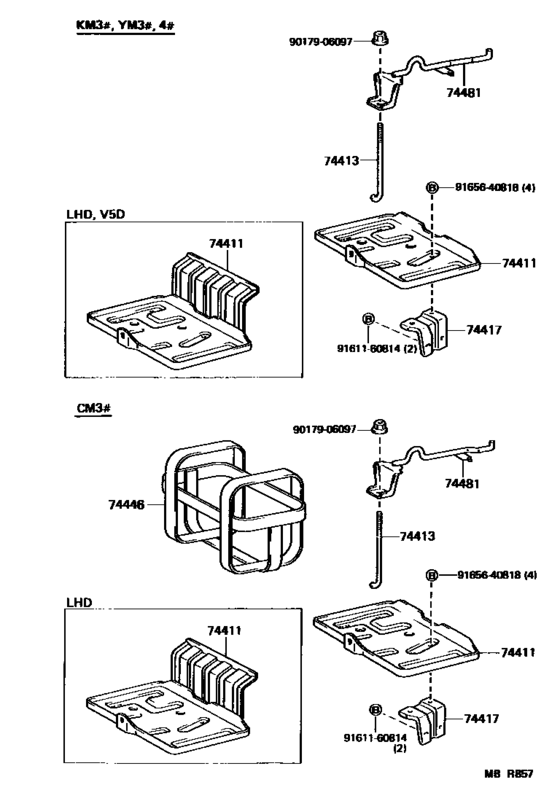

Battery Carrier ([08.1988 - ] (8808- )) 9
| # | OEM | Part name |
|---|---|---|
| 74411 | 74411-95710 | Carrier, Battery |
| 74413 | 74451-95J00 | Bolt, Battery Clamp |
| 74417 | 74417-95704 | Bracket, Battery Carrier |
| 74481 | 74404-95703 | Clamp, Battery Hold Down |
| 9017906097 | 90179-06097 | Clip(For Front Bumper), No.1 |
| 9017906097 | 90179-06206 | Nut |
| 9161160814 | 91611-60814 | Bolt |
| 9165640818 | 91656-40818 | Clamp Or Clip, Hose(For Radiator Outlet No.1) |
| 9165640818 | 91651-B0814 | Bolt with washer |
| OEM | Part name | Category |
|---|---|---|
| 74404-95703 | Clamp, Battery Hold Down | Battery Carrier ([08.1988 - ] (8808- )) |
| 74411-95710 | Carrier, Battery | Battery Carrier ([08.1988 - ] (8808- )) |
| 74417-95704 | Bracket, Battery Carrier | Battery Carrier ([08.1988 - ] (8808- )) |
| 74451-95J00 | Bolt, Battery Clamp | Battery Carrier ([08.1988 - ] (8808- )) |
| 90179-06097 | Clip(For Front Bumper), No.1 | Battery Carrier ([08.1988 - ] (8808- )) |
| 90179-06206 | Nut | Battery Carrier ([08.1988 - ] (8808- )) |
| 91611-60814 | Bolt | Battery Carrier ([08.1988 - ] (8808- )) |
| 91651-B0814 | Bolt with washer | Battery Carrier ([08.1988 - ] (8808- )) |
| 91656-40818 | Clamp Or Clip, Hose(For Radiator Outlet No.1) | Battery Carrier ([08.1988 - ] (8808- )) |
