YM25

Toyota LITE-TOWNACE · 1982 · 3,227 parts · 153 categories
YM25 ×

← Back to categories

3,227 items

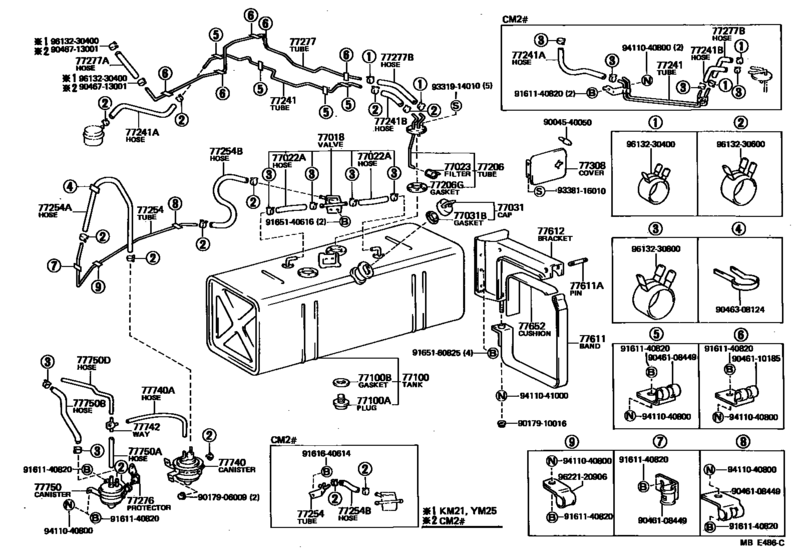

Fuel Tank & Tube ([10.1982 - ] (8210- )TR) 68
#OEMPart name
77018 77018-27010 Valve Sub-Assy, Fuel Vapour Separate
77022 95332-08020 Hose, Fuel Pipe, No.1
77022 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77023 77023-12050 Filter Sub-Assy, Fuel Suction Tube
77100 77001-27041 Tank Assy, Fuel
77100 90341-20003 Plug(For Fuel Tank)
77100 90341-20004 Plug(For Fuel Tank)
77100 90430-20006 Gasket(For Fuel Tank)
77206 77017-27070 Tube Sub-Assy, Fuel Tank Suction
77206 77169-14020 Gasket, Fuel Tank Vent
77241 77251-27031 Tube, Fuel Main, No.1
77241 95332-06030 Hose(For Carburetor)
77241 95333-06030 Hose, Fuel
77241 95332-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77241 95337-06020 Hose, Differential Pressure Control
77254 77263-27012 Tube, Fuel Emission, No.1
77254 90445-12042 Hose, Fuel, No.1 (For Emission Tube, No.1)
77254 90445-12170 Hose, Fuel, No.2 (For Emission Tube, No.1)
77254 77209-27010 Hose, Fuel, No.2 (For Emission Tube, No.1)
77254 95332-06040 Hose(For Valve To Timing Gear)
77254 95333-06040 Hose
77276 77276-27030 Protector, Fuel Hose
77277 77255-27090 Tube, Fuel Return, No.1
77277 95332-04030 Hose, No.2(For Lpg Regulator To Lpg Carburetor)
77277 95333-04030 Hose, No.2(For Lpg Regulator To Lpg Carburetor)
77611 77601-27011 Band Sub-Assy, Fuel Tank, No.1
77611 77629-25010 Pin (For Fuel Tank Band)
77612 77501-27010 Bracket Sub-Assy, Fuel Tank
77652 77651-27010 Cushion, Fuel Tank, No.1
77652 77651-27110 Packing, Fuel Tank Bracket
77740 77740-27090 Canister Assy, Charcoal
77740 95411-10660 Hose, Fuel, No.1(For Charcoal Canister)
77740 90999-92003 Hose, Breather (For Transfer Case)
77742 90413-04005 Way, 3, No.1 (For Front Drive Shift)
77750 77740-27080 Canister Assy, Charcoal
77750 95411-10630 Hose, Fuel, No.1(For Charcoal Canister)
77750 90999-92002 Air Hose (300 mm)
77750 90447-14008 Hose, Fuel, No.2 (For Charcoal Canister)
9004540050 90045-40050 Cushion(For Fuel Inlet Box Cover)
9017906009 90179-06009 Nut (For Transmission Control Cable)
9017906009 90179-06156 Nut (For Transmission Control Cable)
9017910016 90179-10016 Nut(For Counter Gear Shaft)
9017910016 90179-10132 Nut
9046108449 90461-08449 New Genuine Part
9046110185 90461-10185 Clamp, Brake Tube, No.3
9046308124 90463-08124 Clamp(For Oil Pipe)
9046713001 90467-13001 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713001 96135-51300 Clamp, Hose
9161140820 91611-40820 Bolt(For Intake Manifold To Exhaust Manifold)
9161640614 91616-40614 Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9161640614 91611-G0612 Bolt
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165160825 91651-60825 Bolt, Hexagon(For Steering Column Bracket)
9165160825 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9331914010 93319-14010 SCREW
9338116010 93381-16010 New Genuine Part
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9411041000 94110-41000 Nut(For Steering Damper)
9613230400 96132-30400 Clip Or Clamp(For Ventilation Hose)
9613230400 96132-51000 Clip Or Clamp(For Ventilation Hose)
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
9613230800 96132-30800 Clip, No.3(For Idle-Up Hose)
9613230800 96132-51300 Clip(For Ventilation Hose No.2)
9622120906 96221-20906 New Genuine Part
