YM25

Toyota LITE-TOWNACE · 1982 · 3,227 parts · 153 categories
YM25 ×

← Back to categories

3,227 items

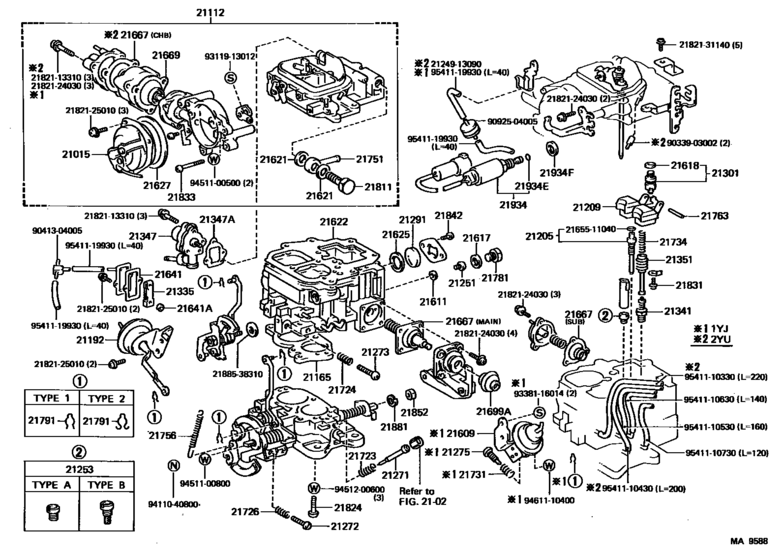

Carburetor ([10.1982 - 08.1985] (8210-8508)1YJ,2YU) 93
#OEMPart name
21015 21015-71010 Housing Sub-Assy, Coil
21112 21112-71011 Horn, Air
21112 21112-71012 Horn, Air
21165 21165-71010 Insulator
21165 21165-73100 Insulator
21192 21192-71010 Breaker
21192 21192-72020 Breaker
21205 21205-35240 Jet Sub-Assy, Slow
21209 21209-37041 Float Sub-Assy
21251 90999-41103 Jet, 1St Main
21253 21253-37040 Jet, 2Nd Main
21253 21253-35410 Jet, 2Nd Main
21271 21271-15230 Screw, Idle Adjusting
21272 21272-71010 Screw, 1St Idle Adjusting
21273 21273-71010 Screw, Throttle Adjusting
21273 21273-71011 Screw, Throttle Adjusting
21273 21273-35210 Screw, Throttle Adjusting
21275 21275-71010 Screw, Adjusting
21291 21291-34320 Glass, Level Gage
21301 21301-35010 Valve Sub-Assy, Needle
21335 21335-34660 Valve, Thermostatic
21341 21304-61060 Valve, Power
21347 21347-71010 Valve, Solenoid
21347 21347-71011 Valve, Solenoid
21347 21347-73090 Valve, Solenoid
21347 21641-35010 Gasket(For Valve, Solenoid)
21347 21641-35510 Gasket(For Valve, Solenoid)
21351 21351-37040 Piston, Power
21609 21609-71010 Opener
21611 21611-22010 Gasket, Main Jet
21617 21617-30010 Gasket, Main Passage Plug
21618 21618-14010 Gasket, Needle Valve Seat
21621 21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt
21622 21622-37040 Gasket, Air Horn
21622 21622-71010 Gasket, Air Horn
21625 21655-60200 Gasket, Level Gage
21627 21627-28150 Gasket, Coil Housing
21641 21641-37041 Gasket(For Thermostatic Valve Cover)
21641 21641-24030 Gasket(For Thermostatic Valve Cover No.2)
21667 21667-37040 Diaphragm
21667 21667-72200 Diaphragm
21667 21667-38310 Diaphragm
21667 21675-35510 Diaphragm
21669 21669-37040 Diaphragm
21669 21669-35510 Diaphragm
21699 21699-37040 Boot(For Acceleration Pump)
21723 21723-21030 Spring, Idle Adjusting
21724 21723-38330 Spring, Throttle Adjusting
21726 21726-38310 Spring, 1St Idle Adjusting
21731 21723-11041 Spring, Idle Adjusting
21734 21734-71010 Spring, Power Piston
21751 21894-71010 Union, Nipple
21756 21869-37040 Spring, Back(For Throttle Shaft)
21763 21763-34320 Pin, Float Lever
21781 21781-15230 Plug, Main Passage(For Carburetor Jet)
21791 21791-13010 Ring, Snap, No.1(For Carburetor Link)
21791 21791-60010 Ring, Snap, No.1(For Carburetor Link)
21811 21811-11060 Bolt, Union Nipple
21824 21844-26400 Screw, Set(For 1St Idle Cam Follower Set)
21831 21821-15060 Screw, 2Nd Throttle Valve Set
21833 21833-33010 Screw, Set, No.1(For Carburetor Body Set)
21842 21842-33010 Screw, Power Piston Stop
21852 21852-30010 Nut, Throttle Lever Set
21881 21881-60010 Washer, Lock(For Throttle Shaft)
21934 21062-71010 Solenoid, Throttle Valve
21934 21062-71011 Solenoid, Throttle Valve
21934 21655-44101 Ring, O(For Lifter Rod)
21934 21617-10010 Gasket
2124913090 21249-13090 Pipe Or Hose
2124913090 90999-92002 Air Hose (300 mm)
2165511040 21655-11040 Ring, O(For Pump Jet)
2182113310 21821-13310 Screw, 2Nd Throttle Valve Set
2182124030 21821-24030 Screw(For Vacuum Lock Diaphragm Ring Set)
2182125010 21821-25010 Screw, Coil Housing Set
2182131140 21821-31140 Screw(For 2Nd Regulator Cover Set)
2188538310 21885-38310 New Genuine Part
9033903002 90339-03002 PLUG
9041304005 90413-04005 Way, 3, No.1 (For Front Drive Shift)
9092504005 90925-04005 Jet(For Carburetor)
9311913012 93119-13012 New Genuine Part
9338116014 93381-16014 New Genuine Part
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9451100500 94511-00500 Washer, Cover Set, No.2
9451100800 94511-00800 WASHERSPRING
9451200600 94512-00600 Washer, Seal(For Head Cover Set)
9461110400 94611-10400 New Genuine Part
9541110330 95411-10330 Hose, Vacuum, No.1 (For Front Drive Shift)
9541110430 95411-10430 Hose (For Idle Up Device)
9541110530 95411-10530 Hose, No.1(For Opener)
9541110630 95411-10630 Hose, Fuel, No.1(For Charcoal Canister)
9541110730 95411-10730 Hose, Vacuum, No.7 (For Heater Or Air Conditioner)
9541119930 95411-19930 Hose(For Carburetor To Manifold)
