Search › Model › YM25

YM25

Toyota LITE-TOWNACE · 1982 · 3,227 parts · 153 categories

3,227 items

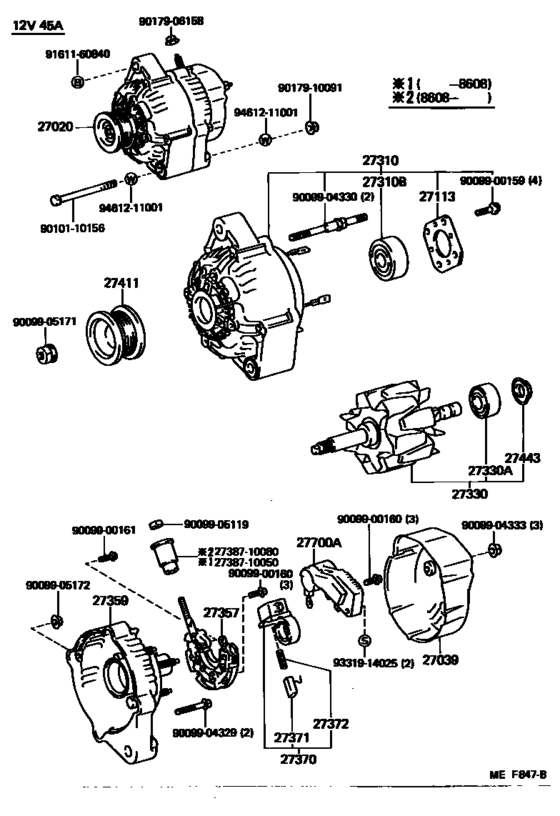

Alternator ([08.1985 - ] (8508- )1YJ) 55

#	OEM	Part name
27020	27020-72030	Alternator Assy
27020	27060-72110	Alternator Assy
27020	27060-72111	Alternator Assy
27039	27039-72150	Cover, Alternator Rear End
27113	27312-10050	Plate, Bearing Retainer, Alternator
27310	27310-15030	Frame Assy, Drive End, Alternator
27310	27310-72030	Frame Assy, Drive End, Alternator
27310	27310-72150	Frame Assy, Drive End, Alternator
27310	27310-72151	Frame Assy, Drive End, Alternator
27310	90099-10126	Bearing(For Alternator Drive End Frame)
27310	90099-10125	Bearing(For Alternator Drive End Frame)
27310	90099-10142	Bearing(For Alternator Drive End Frame)
27310	90099-10155	Bearing(For Alternator Drive End Frame)
27330	27330-26050	Rotor Assy, Alternator
27330	27330-72150	Rotor Assy, Alternator
27330	90099-10111	Bearing(For Alternator Rotor)
27330	90099-10116	Bearing(For Alternator Rotor)
27330	90099-10154	Bearing(For Alternator Rotor)
27357	27357-72150	Holder, Alternator, W/rectifier
27359	27359-72030	Frame, Alternator Rectifier End
27359	27359-72150	Frame, Alternator Rectifier End
27370	27370-63021	Holder Assy, Alternator Brush
27370	27370-35060	Holder Assy, Alternator Brush
27370	27370-72100	Holder Assy, Alternator Brush
27371	27371-31011	Brush, Alternator
27371	27371-63020	Brush, Alternator
27371	27371-70300	Brush, Alternator
27372	27372-31011	Spring, Alternator Brush
27372	27372-72100	Spring, Alternator Brush
27372	27372-87501	Spring, Alternator Brush
27411	27411-72040	Pulley, Alternator
27411	27411-72120	Pulley, Alternator
27443	27443-63020	Cover, Alternator Bearing
27700	27700-10050	Regulator Assy, Generator
27700	27700-66010	Regulator Assy, Generator
2738710050	27387-10050	Insulator, Terminal
2738710080	27387-10080	Insulator, Terminal
9009900159	90099-00159	New Genuine Part
9009900160	90099-00160	Bearing(For Alternator Rotor)
9009900160	90099-00197	Screw
9009900161	90099-00161	New Genuine Part
9009904329	90099-04329	New Genuine Part
9009904330	90099-04330	New Genuine Part
9009904333	90099-04333	New Genuine Part
9009904333	27795-87501	New Genuine Part
9009905119	90099-05119	New Genuine Part
9009905171	90099-05171	Nut(For Alternator Pulley)
9009905172	90099-05172	New Genuine Part
9010110156	90101-10156	Bolt(For Alternator)
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017910091	90179-10091	Nut (For Front Lower Ball Joint Setting)
9017910091	90179-10088	Nut
9161160840	91611-60840	BOLT
9331914025	93319-14025	Screw W Washer
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)

OEM	Part name	Category
27020-72030	Alternator Assy	Alternator ([08.1985 - ] (8508- )1YJ)
27039-72150	Cover, Alternator Rear End	Alternator ([08.1985 - ] (8508- )1YJ)
27060-72110	Alternator Assy	Alternator ([08.1985 - ] (8508- )1YJ)
27060-72111	Alternator Assy	Alternator ([08.1985 - ] (8508- )1YJ)
27310-15030	Frame Assy, Drive End, Alternator	Alternator ([08.1985 - ] (8508- )1YJ)
27310-72030	Frame Assy, Drive End, Alternator	Alternator ([08.1985 - ] (8508- )1YJ)
27310-72150	Frame Assy, Drive End, Alternator	Alternator ([08.1985 - ] (8508- )1YJ)
27310-72151	Frame Assy, Drive End, Alternator	Alternator ([08.1985 - ] (8508- )1YJ)
27312-10050	Plate, Bearing Retainer, Alternator	Alternator ([08.1985 - ] (8508- )1YJ)
27330-26050	Rotor Assy, Alternator	Alternator ([08.1985 - ] (8508- )1YJ)
27330-72150	Rotor Assy, Alternator	Alternator ([08.1985 - ] (8508- )1YJ)
27357-72150	Holder, Alternator, W/rectifier	Alternator ([08.1985 - ] (8508- )1YJ)
27359-72030	Frame, Alternator Rectifier End	Alternator ([08.1985 - ] (8508- )1YJ)
27359-72150	Frame, Alternator Rectifier End	Alternator ([08.1985 - ] (8508- )1YJ)
27370-35060	Holder Assy, Alternator Brush	Alternator ([08.1985 - ] (8508- )1YJ)
27370-63021	Holder Assy, Alternator Brush	Alternator ([08.1985 - ] (8508- )1YJ)
27370-72100	Holder Assy, Alternator Brush	Alternator ([08.1985 - ] (8508- )1YJ)
27371-31011	Brush, Alternator	Alternator ([08.1985 - ] (8508- )1YJ)
27371-63020	Brush, Alternator	Alternator ([08.1985 - ] (8508- )1YJ)
27371-70300	Brush, Alternator	Alternator ([08.1985 - ] (8508- )1YJ)
27372-31011	Spring, Alternator Brush	Alternator ([08.1985 - ] (8508- )1YJ)
27372-72100	Spring, Alternator Brush	Alternator ([08.1985 - ] (8508- )1YJ)
27372-87501	Spring, Alternator Brush	Alternator ([08.1985 - ] (8508- )1YJ)
27387-10050	Insulator, Terminal	Alternator ([08.1985 - ] (8508- )1YJ)
27387-10080	Insulator, Terminal	Alternator ([08.1985 - ] (8508- )1YJ)
27411-72040	Pulley, Alternator	Alternator ([08.1985 - ] (8508- )1YJ)
27411-72120	Pulley, Alternator	Alternator ([08.1985 - ] (8508- )1YJ)
27443-63020	Cover, Alternator Bearing	Alternator ([08.1985 - ] (8508- )1YJ)
27700-10050	Regulator Assy, Generator	Alternator ([08.1985 - ] (8508- )1YJ)
27700-66010	Regulator Assy, Generator	Alternator ([08.1985 - ] (8508- )1YJ)
27795-87501	New Genuine Part	Alternator ([08.1985 - ] (8508- )1YJ)
90099-00159	New Genuine Part	Alternator ([08.1985 - ] (8508- )1YJ)
90099-00160	Bearing(For Alternator Rotor)	Alternator ([08.1985 - ] (8508- )1YJ)
90099-00161	New Genuine Part	Alternator ([08.1985 - ] (8508- )1YJ)
90099-00197	Screw	Alternator ([08.1985 - ] (8508- )1YJ)
90099-04329	New Genuine Part	Alternator ([08.1985 - ] (8508- )1YJ)
90099-04330	New Genuine Part	Alternator ([08.1985 - ] (8508- )1YJ)
90099-04333	New Genuine Part	Alternator ([08.1985 - ] (8508- )1YJ)
90099-05119	New Genuine Part	Alternator ([08.1985 - ] (8508- )1YJ)
90099-05171	Nut(For Alternator Pulley)	Alternator ([08.1985 - ] (8508- )1YJ)
90099-05172	New Genuine Part	Alternator ([08.1985 - ] (8508- )1YJ)
90099-10111	Bearing(For Alternator Rotor)	Alternator ([08.1985 - ] (8508- )1YJ)
90099-10116	Bearing(For Alternator Rotor)	Alternator ([08.1985 - ] (8508- )1YJ)
90099-10125	Bearing(For Alternator Drive End Frame)	Alternator ([08.1985 - ] (8508- )1YJ)
90099-10126	Bearing(For Alternator Drive End Frame)	Alternator ([08.1985 - ] (8508- )1YJ)
90099-10142	Bearing(For Alternator Drive End Frame)	Alternator ([08.1985 - ] (8508- )1YJ)
90099-10154	Bearing(For Alternator Rotor)	Alternator ([08.1985 - ] (8508- )1YJ)
90099-10155	Bearing(For Alternator Drive End Frame)	Alternator ([08.1985 - ] (8508- )1YJ)
90101-10156	Bolt(For Alternator)	Alternator ([08.1985 - ] (8508- )1YJ)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([08.1985 - ] (8508- )1YJ)
90179-10088	Nut	Alternator ([08.1985 - ] (8508- )1YJ)
90179-10091	Nut (For Front Lower Ball Joint Setting)	Alternator ([08.1985 - ] (8508- )1YJ)
91611-60840	BOLT	Alternator ([08.1985 - ] (8508- )1YJ)
93319-14025	Screw W Washer	Alternator ([08.1985 - ] (8508- )1YJ)
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Alternator ([08.1985 - ] (8508- )1YJ)

Source: Public OEM parts-catalog data
Variants: 2 / 3
Category: 153
Collected: 2026-08-04
