Search › Model › YK110

YK110

Toyota STOUT · 1988 · 2,964 parts · 146 categories

2,964 items

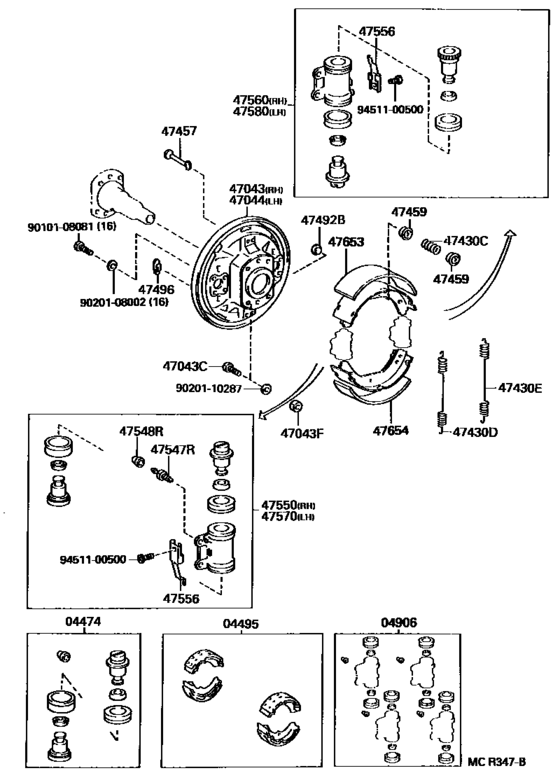

Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) 42

#	OEM	Part name
4474	04474-36160	Cylinder Kit, Rear Wheel
4474	04474-36170	Cylinder Kit, Rear Wheel
4495	04495-35071	Shoe Kit, Rear Brake
4495	04495-35072	Shoe Kit, Rear Brake
4906	04906-36030	Cup Kit, Rear Wheel Cylinder
4906	04906-36040	Cup Kit, Rear Wheel Cylinder
4906	04906-36200	Cup Kit, Front Wheel Cylinder
47043	47043-36050	Plate Sub-Assy, Brake Backing, Rear Rh
47043	47043-36051	Plate Sub-Assy, Brake Backing, Rear Rh
47043	47492-28010	Plug, Shoe Inspection(For Rear Brake)
47043	90114-10019	Bolt(For Backing Plate To Rear Axle Housing Setting)
47043	90114-10063	Bolt, No.1(For Rear Brake Backing Plate Rh)
47043	90170-10178	Nut(For Backing Plate To Rear Axle Housing Setting)
47043	94130-01002	Nut, Booster Sleeve Cylinder
47044	47044-36010	Plate Sub-Assy, Brake Backing, Rear Lh
47044	47044-36011	Plate Sub-Assy, Brake Backing, Rear Lh
47430	90501-20012	Spring(For Front Brake Shoe Hold Down)
47430	90506-29006	Spring, Tension(For Front Brake Shoe Return)
47457	47447-36020	Pin, Shoe Hold Down Spring(For Front Brake)
47459	47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)
47496	47491-36010	Plug, Hole(For Front Brake)
47496	47491-36020	Plug, Hole(For Rear Brake)
47547	47547-12010	Plug, Bleeder(For Release Cylinder)
47548	31478-30010	Bleeder Plug Cap
47550	47550-36040	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-36050	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-36051	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47556	47555-36020	Spring, Adjuster Lock(For Front Brake)
47560	47560-36040	Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560	47560-36050	Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560	47560-36051	Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47570	47570-36040	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570	47570-36050	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570	47570-36051	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47580	47580-36040	Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580	47580-36050	Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580	47580-36051	Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47653	47651-60020	Lining, Front Brake Shoe(For Front Or Upper) - REAR BRAKE SHOE(FOR FRONT OR UPPER)
9010108081	90101-08081	Bolt(For Front Wheel Cylinder)
9020108002	90201-08002	Washer(For Front Wheel Cylinder)
9020110287	90201-10287	Washer(For Front Wheel Cylinder)
9451100500	94511-00500	Washer, Cover Set, No.2

OEM	Part name	Category
04474-36160	Cylinder Kit, Rear Wheel	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
04474-36170	Cylinder Kit, Rear Wheel	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
04495-35071	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
04495-35072	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
04906-36030	Cup Kit, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
04906-36040	Cup Kit, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
04906-36200	Cup Kit, Front Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
31478-30010	Bleeder Plug Cap	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47043-36050	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47043-36051	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47044-36010	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47044-36011	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47447-36020	Pin, Shoe Hold Down Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47491-36010	Plug, Hole(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47491-36020	Plug, Hole(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47492-28010	Plug, Shoe Inspection(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47547-12010	Plug, Bleeder(For Release Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47550-36040	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47550-36050	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47550-36051	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47555-36020	Spring, Adjuster Lock(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47560-36040	Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47560-36050	Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47560-36051	Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47570-36040	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47570-36050	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47570-36051	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47580-36040	Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47580-36050	Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47580-36051	Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
47651-60020	Lining, Front Brake Shoe(For Front Or Upper) - REAR BRAKE SHOE(FOR FRONT OR UPPER)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
90101-08081	Bolt(For Front Wheel Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
90114-10019	Bolt(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
90114-10063	Bolt, No.1(For Rear Brake Backing Plate Rh)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
90170-10178	Nut(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
90201-08002	Washer(For Front Wheel Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
90201-10287	Washer(For Front Wheel Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
90501-20012	Spring(For Front Brake Shoe Hold Down)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
90506-29006	Spring, Tension(For Front Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
94130-01002	Nut, Booster Sleeve Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
94511-00500	Washer, Cover Set, No.2	Rear Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- ))
