| 04473-35050 |
Cylinder Kit, Front Wheel |

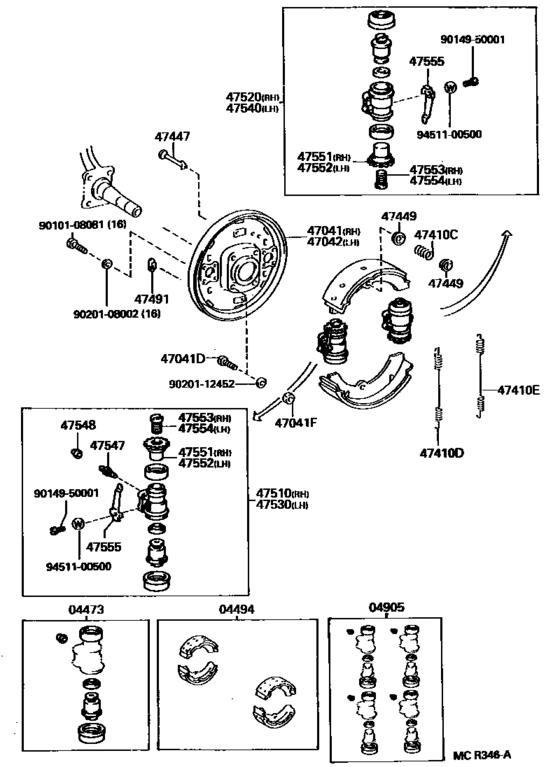

Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 04494-25020 |
Shoe Kit, Rear Brake |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 04494-25060 |
Shoe Kit, Rear Brake - FRONT BRAKE |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 04905-35060 |
Cup Kit, Front Wheel Cylinder |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 04905-35070 |
Cup Kit, Front Wheel Cylinder |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 31478-30010 |
Bleeder Plug Cap |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47041-35060 |
Plate Sub-Assy, Brake Backing, Front Rh |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47041-35061 |
Plate Sub-Assy, Brake Backing, Front Rh |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47042-35050 |
Plate Sub-Assy, Brake Backing, Front Lh |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47042-35051 |
Plate Sub-Assy, Brake Backing, Front Lh |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47447-20010 |
Pin, Shoe Hold Down Spring(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47449-30020 |
Cup, Shoe Hold Down Spring(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47491-36010 |
Plug, Hole(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47491-36020 |
Plug, Hole(For Rear Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47510-35070 |
Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47510-35071 |
Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47520-35040 |
Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47520-35041 |
Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47530-35070 |
Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47530-35071 |
Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47540-35040 |
Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47540-35041 |
Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47547-12010 |
Plug, Bleeder(For Release Cylinder) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47551-25050 |
Nut, Front Wheel Cylinder Adjusting, Rh(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47552-25050 |
Nut, Front Wheel Cylinder Adjusting, Lh(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47553-36021 |
Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47554-36021 |
Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 47555-25010 |
Spring, Adjuster Lock(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 90101-08081 |
Bolt(For Front Wheel Cylinder) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 90101-12021 |
Bolt(For Backing Plate To Steering Knuckle Setting) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 90101-12175 |
Bolt(For Backing Plate To Rear Axle Housing Setting) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 90149-50001 |
New Genuine Part |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 90201-08002 |
Washer(For Front Wheel Cylinder) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 90201-12452 |
Nut(For Backing Plate To Steering Knuckle Setting) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 90501-20756 |
Spring(For Front Brake Shoe Hold Down) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 90506-26009 |
Spring, Tension(For Front Brake Shoe Return) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 94115-71200 |
Nut(For Backing Plate To Steering Knuckle Setting) |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
| 94511-00500 |
Washer, Cover Set, No.2 |
Front Drum Brake Wheel Cylinder & Backing Plate ([05.1993 - ] CYLINDER CUP:RING TYPE (9305- )) |
