YH80

Toyota HIACE-TRUCK · 1985 · 3,246 parts · 145 categories
YH80 ×

← Back to categories

3,246 items

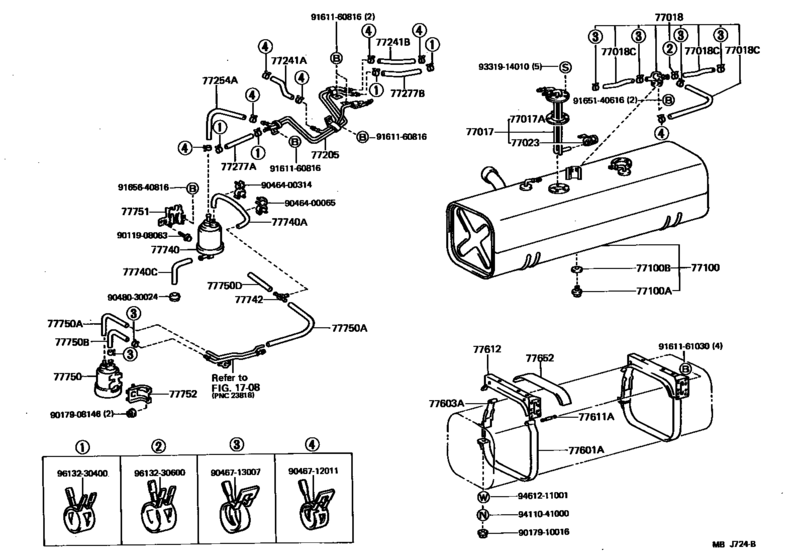

Fuel Tank & Tube ([08.1985 - ] (8508- )YH80) 71
#OEMPart name
77017 77017-26110 Tube Sub-Assy, Fuel And Evaporation Vent
77017 77169-14020 Gasket, Fuel Tank Vent
77018 77018-26130 Valve Sub-Assy, Fuel Vapour Separate
77018 95332-06040 Hose(For Valve To Timing Gear)
77018 95333-06040 Hose
77018 95332-08020 Hose, Fuel Pipe, No.1
77018 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77023 77023-14030 Filter Sub-Assy, Fuel Suction Tube
77100 77001-26290 Tank Assy, Fuel
77100 90105-12116 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77100 77001-26330 Tank Assy, Fuel
77205 77205-26020 Tube Sub-Assy, Fuel Main
77205 77205-25170 Tube, Fuel Main
77241 77259-26030 Hose, Fuel, No.1 (For Main Tube, No.1)
77241 95332-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77241 95337-06020 Hose, Differential Pressure Control
77241 95333-06014 Hose, Fuel(For Fuel Evaporative Separator)
77254 77259-26020 Hose, Fuel, No.1 (For Emission Tube, No.1)
77277 90447-11004 Hose, Fuel, No.1(For Return Tube, No.1)
77277 95332-04020 Hose, Lpg Injector
77277 95333-04020 Hose, Lpg Injector
77277 95333-04014 Hose, Fuel, No.2(For Return Tube, No.1)
77601 77601-26050 Band Sub-Assy, Fuel Tank, No.1
77603 77603-28010 Band Sub-Assy, Fuel Tank, No.2
77611 77629-25010 Pin (For Fuel Tank Band)
77612 77501-28011 Bracket Sub-Assy, Fuel Tank
77612 77501-25091 Bracket Sub-Assy, Fuel Tank
77652 77651-26040 Packing, Fuel Tank Bracket
77740 77704-60050 Canister Assy, Charcoal
77740 95411-10695 Hose, Fuel, No.1(For Charcoal Canister)
77740 90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)
77740 90910-05180 Hose, Fuel, No.3(For Charcoal Canister)
77742 90413-04005 Way, 3, No.1 (For Front Drive Shift)
77750 77740-26060 Canister Assy, Charcoal
77750 95411-10630 Hose, Fuel, No.1(For Charcoal Canister)
77750 90999-92002 Air Hose (300 mm)
77750 95411-10660 Hose, Fuel, No.1(For Charcoal Canister)
77750 90999-92003 Hose, Breather (For Transfer Case)
77750 90445-14136 Hose, Fuel, No.1(For Charcoal Canister)
77751 77705-26031 Bracket Sub-Assy, Charcoal Canister
77752 77705-26021 Bracket Sub-Assy, Charcoal Canister
77752 77705-26022 Bracket Sub-Assy, Charcoal Canister
9011908063 90119-08063 BOLT
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9017910016 90179-10016 Nut(For Counter Gear Shaft)
9017910016 90179-10132 Nut
9046400065 90464-00065 Clamp, Throttle Cable
9046400314 90464-00314 Clip(For Water By-Pass Hose)
9046712011 90467-12011 Clip(For Actuator Hose)
9046712011 96132-51100 Clip (For Hose)
9046713007 90467-13007 Clamp Or Clip(For Water By-Pass Hose No.2)
9046713007 96132-51300 Clip(For Ventilation Hose No.2)
9048030024 90480-30024 New Genuine Part
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9161161030 91611-61030 Bolt (For Transmission Control Cable Bracket)
9161161030 91612-61030 Bolt (For Transmission Control Cable Bracket)
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165640816 91656-40816 New Genuine Part
9165640816 91651-B0814 Bolt with washer
9165640816 90119-A0109 New Genuine Part
9331914010 93319-14010 SCREW
9411041000 94110-41000 Nut(For Steering Damper)
9461211001 94612-11001 Washer, Plate (For Center Support Bearing Housing)
9613230400 96132-30400 Clip Or Clamp(For Ventilation Hose)
9613230400 96132-51000 Clip Or Clamp(For Ventilation Hose)
9613230600 96132-30600 Clip(For Actuator Hose)
