Search › Model › YH80

YH80

Toyota HIACE-TRUCK · 1985 · 3,246 parts · 145 categories

3,246 items

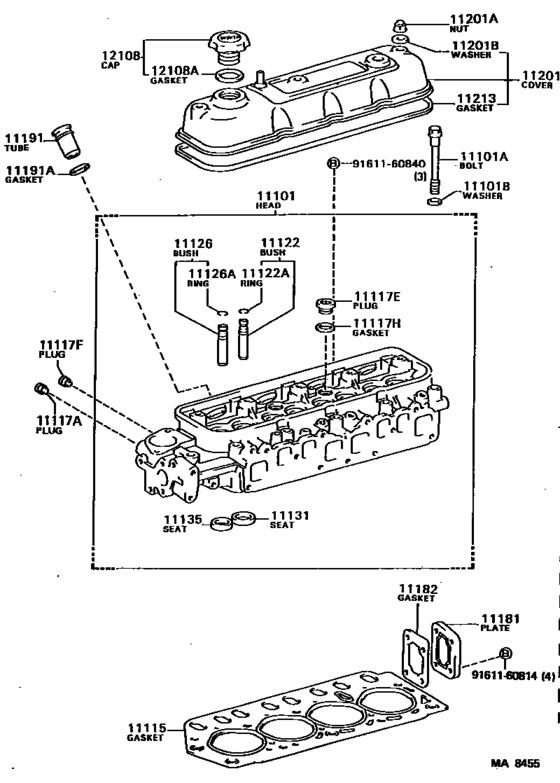

Cylinder Head ([08.1985 - ] (8508- )1YJ) 35

#	OEM	Part name
11101	11101-71010	Head Sub-Assy, Cylinder
11101	90105-12056	Bolt(For Cylinder Head Set)
11101	90201-13021	Washer, Plate(For Cylinder Head Set)
11115	11115-71011	Gasket, Cylinder Head
11115	11115-73041	Gasket, Cylinder Head
11117	90344-53011	Plug, W/head Taper Screw, No.1
11117	90341-20002	Plug, W/head Taper Screw, No.1
11117	90340-16002	Plug, W/head Straight Screw, No.2
11117	90430-20004	Gasket(For Cylinder Head Screw Plug)
11122	11122-71020	Bush, Intake Valve Guide
11122	11123-71020	Bush, Intake Valve Guide
11122	90520-12049	Ring, Shaft Snap (For Valve Guide Bush)
11126	11126-71020	Bush, Exhaust Valve Guide
11126	11127-71020	Bush, Exhaust Valve Guide
11131	11131-63010	Seat, Intake Valve
11131	11132-63010	Seat, Intake Valve
11135	11135-71010	Seat, Exhaust Valve
11135	11136-71010	Seat, Exhaust Valve
11181	11181-71010	Plate, Cylinder Head, Rear
11182	11182-71010	Gasket, Cylinder Head Rear Plate
11182	11182-71011	Gasket, Cylinder Head Rear Plate
11191	11191-22010	Tube, Spark Plug
11191	90430-31141	Gasket(For Spark Plug Tube)
11191	90430-31003	Gasket(For Spark Plug Tube)
11201	11201-79035	Cover Sub-Assy, Cylinder Head
11201	11201-71012	Cover Sub-Assy, Cylinder Head
11201	90210-09019	Washer, Seal(For Cylinder Head Cover)
11201	11213-71020	Gasket, Cylinder Head Cover
11201	90176-08007	Nut, Cap(For Cylinder Head Cover)
11201	90210-09001	Washer, Seal(For Cylinder Head Cover)
12108	12180-71011	Cap Sub-Assy, Oil Filler
12108	12180-70020	Cap Sub-Assy, Oil Filler
12108	12195-71020	Gasket(For Oil Filler Cap)
9161160814	91611-60814	Bolt
9161160840	91611-60840	BOLT

OEM	Part name	Category
11101-71010	Head Sub-Assy, Cylinder	Cylinder Head ([08.1985 - ] (8508- )1YJ)
11115-71011	Gasket, Cylinder Head	Cylinder Head ([08.1985 - ] (8508- )1YJ)
11115-73041	Gasket, Cylinder Head	Cylinder Head ([08.1985 - ] (8508- )1YJ)
11122-71020	Bush, Intake Valve Guide	Cylinder Head ([08.1985 - ] (8508- )1YJ)
11123-71020	Bush, Intake Valve Guide	Cylinder Head ([08.1985 - ] (8508- )1YJ)
11126-71020	Bush, Exhaust Valve Guide	Cylinder Head ([08.1985 - ] (8508- )1YJ)
11127-71020	Bush, Exhaust Valve Guide	Cylinder Head ([08.1985 - ] (8508- )1YJ)
11131-63010	Seat, Intake Valve	Cylinder Head ([08.1985 - ] (8508- )1YJ)
11132-63010	Seat, Intake Valve	Cylinder Head ([08.1985 - ] (8508- )1YJ)
11135-71010	Seat, Exhaust Valve	Cylinder Head ([08.1985 - ] (8508- )1YJ)
11136-71010	Seat, Exhaust Valve	Cylinder Head ([08.1985 - ] (8508- )1YJ)
11181-71010	Plate, Cylinder Head, Rear	Cylinder Head ([08.1985 - ] (8508- )1YJ)
11182-71010	Gasket, Cylinder Head Rear Plate	Cylinder Head ([08.1985 - ] (8508- )1YJ)
11182-71011	Gasket, Cylinder Head Rear Plate	Cylinder Head ([08.1985 - ] (8508- )1YJ)
11191-22010	Tube, Spark Plug	Cylinder Head ([08.1985 - ] (8508- )1YJ)
11201-71012	Cover Sub-Assy, Cylinder Head	Cylinder Head ([08.1985 - ] (8508- )1YJ)
11201-79035	Cover Sub-Assy, Cylinder Head	Cylinder Head ([08.1985 - ] (8508- )1YJ)
11213-71020	Gasket, Cylinder Head Cover	Cylinder Head ([08.1985 - ] (8508- )1YJ)
12180-70020	Cap Sub-Assy, Oil Filler	Cylinder Head ([08.1985 - ] (8508- )1YJ)
12180-71011	Cap Sub-Assy, Oil Filler	Cylinder Head ([08.1985 - ] (8508- )1YJ)
12195-71020	Gasket(For Oil Filler Cap)	Cylinder Head ([08.1985 - ] (8508- )1YJ)
90105-12056	Bolt(For Cylinder Head Set)	Cylinder Head ([08.1985 - ] (8508- )1YJ)
90176-08007	Nut, Cap(For Cylinder Head Cover)	Cylinder Head ([08.1985 - ] (8508- )1YJ)
90201-13021	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([08.1985 - ] (8508- )1YJ)
90210-09001	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([08.1985 - ] (8508- )1YJ)
90210-09019	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([08.1985 - ] (8508- )1YJ)
90340-16002	Plug, W/head Straight Screw, No.2	Cylinder Head ([08.1985 - ] (8508- )1YJ)
90341-20002	Plug, W/head Taper Screw, No.1	Cylinder Head ([08.1985 - ] (8508- )1YJ)
90344-53011	Plug, W/head Taper Screw, No.1	Cylinder Head ([08.1985 - ] (8508- )1YJ)
90430-20004	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([08.1985 - ] (8508- )1YJ)
90430-31003	Gasket(For Spark Plug Tube)	Cylinder Head ([08.1985 - ] (8508- )1YJ)
90430-31141	Gasket(For Spark Plug Tube)	Cylinder Head ([08.1985 - ] (8508- )1YJ)
90520-12049	Ring, Shaft Snap (For Valve Guide Bush)	Cylinder Head ([08.1985 - ] (8508- )1YJ)
91611-60814	Bolt	Cylinder Head ([08.1985 - ] (8508- )1YJ)
91611-60840	BOLT	Cylinder Head ([08.1985 - ] (8508- )1YJ)

Source: Public OEM parts-catalog data
Variants: 2 / 7
Category: 145
Collected: 2026-08-03
