Search › Model › YH66

YH66

Toyota HIACE · 1986 · 3,949 parts · 148 categories

3,949 items

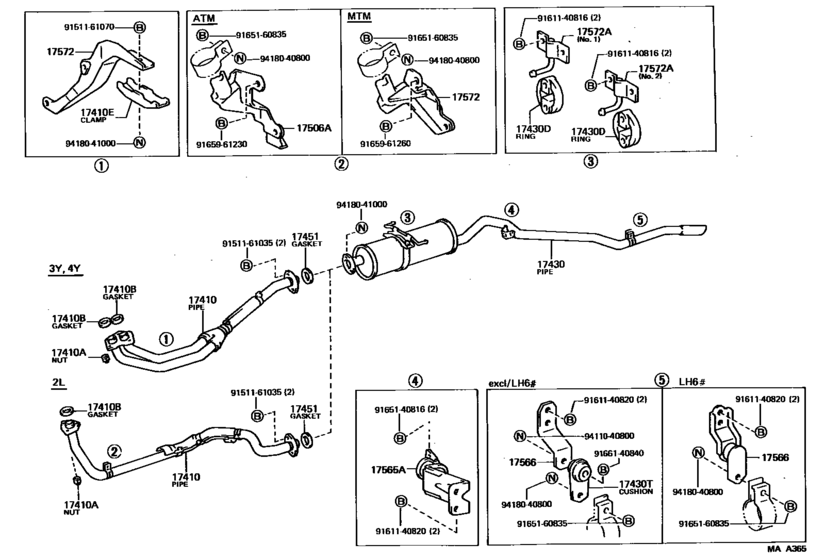

Exhaust Pipe ([08.1987 - ] (8708- )) 35

#	OEM	Part name
17410	17410-71140	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06001	Gasket(For Manifold Extension)
17410	90917-06038	Gasket, Exhaust Pipe
17410	90917-04030	Clamp No.1, Exhaust Pipe Front (For Front)
17410	17565-15010	Bolt Or Ring, Exhaust Pipe Front (For Center)
17430	17430-71221	Pipe Assy, Exhaust, Tail
17430	17565-13030	Ring, Catalytic Converter
17451	90917-06004	Gasket(For Manifold Extension)
17451	90917-06039	Gasket, Exhaust Pipe
17566	17575-54030	Bracket, Exhaust Tail Pipe (For Rear)
17572	17571-71060	Bracket, Exhaust Pipe No.1 Support
17572	17563-54100	Bracket, Exhaust Tail Pipe(For Front)
17572	17573-54070	Bracket, Exhaust Tail Pipe(For Front)
17572	17572-71070	Bracket, Exhaust Pipe Support, No.2
9151161035	91511-61035	Bolt(For Transaxle Case & Engine Setting)
9151161035	91512-61035	Bolt(For Transaxle Case & Engine Setting)
9151161070	91511-61070	Bolt Or Ring, Exhaust Pipe Front (For Front)
9151161070	91512-61070	Bolt Or Ring, Exhaust Pipe Front (For Front)
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9161140820	91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9165140816	91651-40816	BOLT
9165160835	91651-60835	Bolt(For Front Suspension Control Accumulator)
9165961230	91659-61230	New Genuine Part
9165961230	90119-12297	New Genuine Part
9165961260	91659-61260	Bolt(For Transaxle & Engine Setting)
9166140840	91661-40840	New Genuine Part
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9418040800	94180-40800	NUT
9418041000	94180-41000	Nut

OEM	Part name	Category
17410-71140	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.1987 - ] (8708- ))
17430-71221	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1987 - ] (8708- ))
17563-54100	Bracket, Exhaust Tail Pipe(For Front)	Exhaust Pipe ([08.1987 - ] (8708- ))
17565-13030	Ring, Catalytic Converter	Exhaust Pipe ([08.1987 - ] (8708- ))
17565-15010	Bolt Or Ring, Exhaust Pipe Front (For Center)	Exhaust Pipe ([08.1987 - ] (8708- ))
17571-71060	Bracket, Exhaust Pipe No.1 Support	Exhaust Pipe ([08.1987 - ] (8708- ))
17572-71070	Bracket, Exhaust Pipe Support, No.2	Exhaust Pipe ([08.1987 - ] (8708- ))
17573-54070	Bracket, Exhaust Tail Pipe(For Front)	Exhaust Pipe ([08.1987 - ] (8708- ))
17575-54030	Bracket, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([08.1987 - ] (8708- ))
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1987 - ] (8708- ))
90119-12297	New Genuine Part	Exhaust Pipe ([08.1987 - ] (8708- ))
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1987 - ] (8708- ))
90917-04030	Clamp No.1, Exhaust Pipe Front (For Front)	Exhaust Pipe ([08.1987 - ] (8708- ))
90917-06001	Gasket(For Manifold Extension)	Exhaust Pipe ([08.1987 - ] (8708- ))
90917-06004	Gasket(For Manifold Extension)	Exhaust Pipe ([08.1987 - ] (8708- ))
90917-06038	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1987 - ] (8708- ))
90917-06039	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1987 - ] (8708- ))
91511-61035	Bolt(For Transaxle Case & Engine Setting)	Exhaust Pipe ([08.1987 - ] (8708- ))
91511-61070	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([08.1987 - ] (8708- ))
91512-61035	Bolt(For Transaxle Case & Engine Setting)	Exhaust Pipe ([08.1987 - ] (8708- ))
91512-61070	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([08.1987 - ] (8708- ))
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Exhaust Pipe ([08.1987 - ] (8708- ))
91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)	Exhaust Pipe ([08.1987 - ] (8708- ))
91611-60820	Bolt(For Transaxle & Engine Setting)	Exhaust Pipe ([08.1987 - ] (8708- ))
91611-B0816	Bolt	Exhaust Pipe ([08.1987 - ] (8708- ))
91611-G0820	Bolt	Exhaust Pipe ([08.1987 - ] (8708- ))
91651-40816	BOLT	Exhaust Pipe ([08.1987 - ] (8708- ))
91651-60835	Bolt(For Front Suspension Control Accumulator)	Exhaust Pipe ([08.1987 - ] (8708- ))
91659-61230	New Genuine Part	Exhaust Pipe ([08.1987 - ] (8708- ))
91659-61260	Bolt(For Transaxle & Engine Setting)	Exhaust Pipe ([08.1987 - ] (8708- ))
91661-40840	New Genuine Part	Exhaust Pipe ([08.1987 - ] (8708- ))
94110-40800	Nut(For Steering Damper)	Exhaust Pipe ([08.1987 - ] (8708- ))
94130-00802	Nut, No.1 (For Center Support Bearing)	Exhaust Pipe ([08.1987 - ] (8708- ))
94180-40800	NUT	Exhaust Pipe ([08.1987 - ] (8708- ))
94180-41000	Nut	Exhaust Pipe ([08.1987 - ] (8708- ))
