Search › Model › YH66

YH66

Toyota HIACE · 1986 · 3,949 parts · 148 categories
YH66 ×

← Back to categories

3,949 items

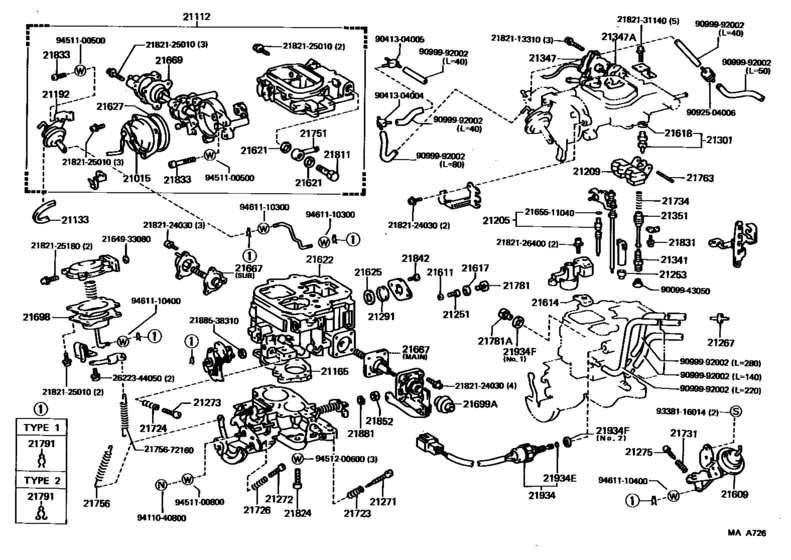

Carburetor ([08.1987 - ] (8708- )4Y) 95
#OEMPart name
21015 21015-73160 Housing Sub-Assy, Coil
21112 21112-73240 Horn, Air
21112 21112-73250 Horn, Air
21112 21112-73251 Horn, Air
21133 21133-72160 Cover(For Diaphragm)
21165 21165-72160 Insulator
21165 21165-72200 Insulator
21192 21192-72160 Breaker
21205 21205-35210 Jet Sub-Assy, Slow
21205 21205-35410 Jet Sub-Assy, Slow
21209 21209-72160 Float Sub-Assy
21251 90999-41102 Jet, 1St Main
21253 21253-73250 Jet, 2Nd Main
21267 21267-72030 Jet
21271 21271-26440 Screw, Idle Adjusting
21272 21272-71010 Screw, 1St Idle Adjusting
21273 21273-72160 Screw, Throttle Adjusting
21273 21273-72290 Screw, Throttle Adjusting
21291 21291-34320 Glass, Level Gage
21301 21301-35010 Valve Sub-Assy, Needle
21341 21304-30010 Valve, Power
21347 21347-73250 Valve, Solenoid
21347 21347-73101 Valve, Solenoid
21347 21347-73280 Valve, Solenoid
21347 21347-71012 Valve, Solenoid
21347 21641-35010 Gasket(For Valve, Solenoid)
21347 21641-35510 Gasket(For Valve, Solenoid)
21351 21351-37040 Piston, Power
21609 21609-72030 Diaphragm Sub-Assy
21611 21611-22010 Gasket, Main Jet
21614 21614-72160 Gasket, Venturi
21614 21614-72200 Gasket, Venturi
21617 21617-30010 Gasket, Main Passage Plug
21618 21618-14010 Gasket, Needle Valve Seat
21621 21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt
21622 21622-73230 Gasket, Air Horn
21622 21622-72200 Gasket, Air Horn
21625 21655-60200 Gasket, Level Gage
21627 21627-28150 Gasket, Coil Housing
21667 21667-72050 Diaphragm
21667 21667-73330 Diaphragm
21667 21667-72080 Diaphragm
21667 21675-35510 Diaphragm
21669 21669-37040 Diaphragm
21669 21669-35510 Diaphragm
21698 21667-72170 Diaphragm Sub-Assy
21699 21699-37040 Boot(For Acceleration Pump)
21723 21723-21030 Spring, Idle Adjusting
21724 21723-38330 Spring, Throttle Adjusting
21726 21726-38310 Spring, 1St Idle Adjusting
21731 21723-11041 Spring, Idle Adjusting
21734 21734-33080 Spring, Power Piston
21751 21894-71010 Union, Nipple
21756 21869-71110 Spring, Back(For Throttle Shaft)
21763 21763-34320 Pin, Float Lever
21781 21781-15230 Plug, Main Passage(For Carburetor Jet)
21781 21781-72151 Plug, Main Passage, No.2(For Carburetor Jet)
21791 21791-13010 Ring, Snap, No.1(For Carburetor Link)
21791 21791-60010 Ring, Snap, No.1(For Carburetor Link)
21811 21811-11060 Bolt, Union Nipple
21824 21844-26400 Screw, Set(For 1St Idle Cam Follower Set)
21831 21821-15060 Screw, 2Nd Throttle Valve Set
21833 21833-33010 Screw, Set, No.1(For Carburetor Body Set)
21842 21842-33010 Screw, Power Piston Stop
21852 21852-30010 Nut, Throttle Lever Set
21881 21881-60010 Washer, Lock(For Throttle Shaft)
21934 21062-72150 Solenoid, Throttle Valve
21934 21062-73250 Solenoid, Throttle Valve
21934 21655-44101 Ring, O(For Lifter Rod)
21934 21617-10010 Gasket
21934 21649-38010 Gasket
2164933080 21649-33080 Gasket, Diaphragm Housing Cap
2165511040 21655-11040 Ring, O(For Pump Jet)
2175672160 21756-72160 Spring, Back(For Throttle Shaft)
2182113310 21821-13310 Screw, 2Nd Throttle Valve Set
2182124030 21821-24030 Screw(For Vacuum Lock Diaphragm Ring Set)
2182125010 21821-25010 Screw, Coil Housing Set
2182125180 21821-25180 Screw, Set, No.2(For Carburetor Body Set)
2182126400 21821-26400 Screw, 2nd Throttle Valve Set
2182131140 21821-31140 Screw(For 2Nd Regulator Cover Set)
2188538310 21885-38310 New Genuine Part
2622344050 26223-44050 Screw, Set(for Power Valve Cam)
9009943050 90099-43050 New Genuine Part
9041304004 90413-04004 Way, 3(For Canister)
9041304005 90413-04005 Way, 3, No.1 (For Front Drive Shift)
9092504006 90925-04006 Jet(For Opener)
9099992002 90999-92002 Air Hose (300 mm)
9338116014 93381-16014 New Genuine Part
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9451100500 94511-00500 Washer, Cover Set, No.2
9451100800 94511-00800 WASHERSPRING
9451200600 94512-00600 Washer, Seal(For Head Cover Set)
9461110300 94611-10300 New Genuine Part
9461110400 94611-10400 New Genuine Part
