Search › Model › YH66

YH66

Toyota HIACE · 1986 · 3,949 parts · 148 categories

3,949 items

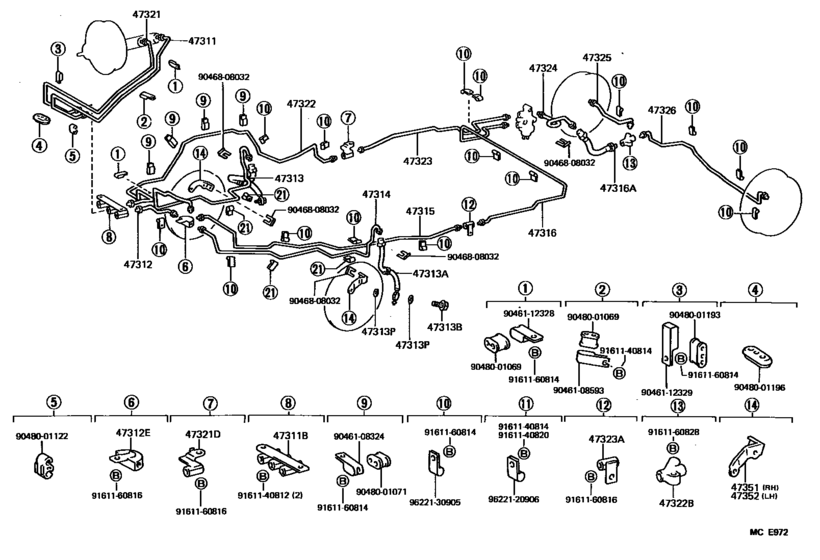

Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66) 45

#	OEM	Part name
47311	47311-26290	Tube, Front Brake, No.1
47311	90412-10105	Way, No.1(For Front Brake Tube)
47312	47312-26230	Tube, Front Brake, No.2
47312	90414-10012	Way, No.2(For Front Brake Tube)
47313	47313-26120	Tube, Front Brake, No.3
47313	90947-02534	Hose, Flexible, No.1(For Front)
47313	90947-02928	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47314	47314-26120	Tube, Front Brake, No.4
47315	47315-26100	Tube, Front Brake, No.5
47316	47316-26101	Tube, Front Brake, No.6
47316	90947-02535	Hose, Flexible(For Rear Brake Tube)
47316	90947-02927	Hose, Flexible(For Rear Brake Tube)
47321	47321-26200	Tube, Rear Brake, No.1
47321	90412-10103	Way, No.1(For Rear Brake Tube)
47322	47322-26150	Tube, Rear Brake, No.2
47322	90413-10147	Way, 3(For Rear Brake Tube)
47323	47323-26211	Tube, Rear Brake, No.3
47323	90412-10006	Way(For Front Brake Tube)
47324	47324-26101	Tube, Rear Brake, No.4
47325	47325-26220	Tube, Rear Brake, No.5
47326	47326-26210	Tube, Rear Brake, No.6
47351	47351-26090	Bracket, Flexible Hose(For Front Rh)
47352	47352-26090	Bracket, Flexible Hose(For Front Lh)
9046108324	90461-08324	New Genuine Part
9046108593	90461-08593	New Genuine Part
9046112328	90461-12328	New Genuine Part
9046112329	90461-12329	New Genuine Part
9046808032	90468-08032	CLIP
9048001069	90480-01069	Grommet(For Brake Tube)
9048001071	90480-01071	Grommet, No.2(For Front Brake Tube)
9048001122	90480-01122	Grommet(For Brake Tube)
9048001193	90480-01193	New Genuine Part
9048001196	90480-01196	New Genuine Part
9161140812	91611-40812	Bolt(for Drive Plate & Torque Converter Setting)
9161140812	91611-B0812	Bolt
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9161140820	91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161160828	91611-60828	Bolt(For Clutch Release Cylinder Setting)
9622120906	96221-20906	New Genuine Part
9622130905	96221-30905	CLAMP

OEM	Part name	Category
47311-26290	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
47312-26230	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
47313-26120	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
47314-26120	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
47315-26100	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
47316-26101	Tube, Front Brake, No.6	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
47321-26200	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
47322-26150	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
47323-26211	Tube, Rear Brake, No.3	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
47324-26101	Tube, Rear Brake, No.4	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
47325-26220	Tube, Rear Brake, No.5	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
47326-26210	Tube, Rear Brake, No.6	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
47351-26090	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
47352-26090	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90412-10006	Way(For Front Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90412-10103	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90412-10105	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90413-10147	Way, 3(For Rear Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90414-10012	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90461-08324	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90461-08593	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90461-12328	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90461-12329	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90468-08032	CLIP	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90480-01069	Grommet(For Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90480-01071	Grommet, No.2(For Front Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90480-01122	Grommet(For Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90480-01193	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90480-01196	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90947-02534	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90947-02535	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90947-02927	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
90947-02928	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
91611-40812	Bolt(for Drive Plate & Torque Converter Setting)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
91611-60814	Bolt	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
91611-60828	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
91611-B0812	Bolt	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
91611-B0816	Bolt	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
96221-20906	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
96221-30905	CLAMP	Brake Tube & Clamp ([08.1987 - ] (8708- )LH56,66,YH56,66)
