Search › Model › YC11S
YC11S

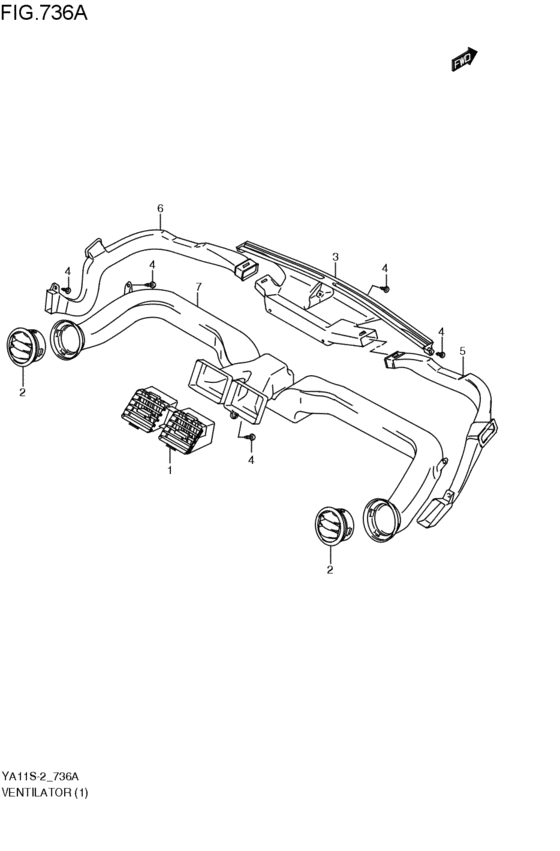

ventilator (2WD; 2008-07-01~) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 73610-80J00-FC6 | LOUVER,CTR VENT |
| 2 | 73630-58J01-BWN | LOUVER,SIDE VENT |
| 3 | 73661-80J20-000 | NOZZLE,DFR |
| 4 | 03541-0516A-000 | SCREW |
| 5 | 73681-80J00-000 | DUCT,DMR,R |
| 6 | 73691-80J00-000 | DUCT,DMR,L |
| 7 | 74620-79J20-000 | ダクト,ベント |
| 7 | 74620-54L20-000 | DUCT,VENT |
| OEM | Part name | Category |
|---|---|---|
| 03541-0516A-000 | SCREW | ventilator (2WD; 2008-07-01~) |
| 73610-80J00-FC6 | LOUVER,CTR VENT | ventilator (2WD; 2008-07-01~) |
| 73630-58J01-BWN | LOUVER,SIDE VENT | ventilator (2WD; 2008-07-01~) |
| 73661-80J20-000 | NOZZLE,DFR | ventilator (2WD; 2008-07-01~) |
| 73681-80J00-000 | DUCT,DMR,R | ventilator (2WD; 2008-07-01~) |
| 73691-80J00-000 | DUCT,DMR,L | ventilator (2WD; 2008-07-01~) |
| 74620-54L20-000 | DUCT,VENT | ventilator (2WD; 2008-07-01~) |
| 74620-79J20-000 | ダクト,ベント | ventilator (2WD; 2008-07-01~) |
