Search › Model › YC11S
YC11S

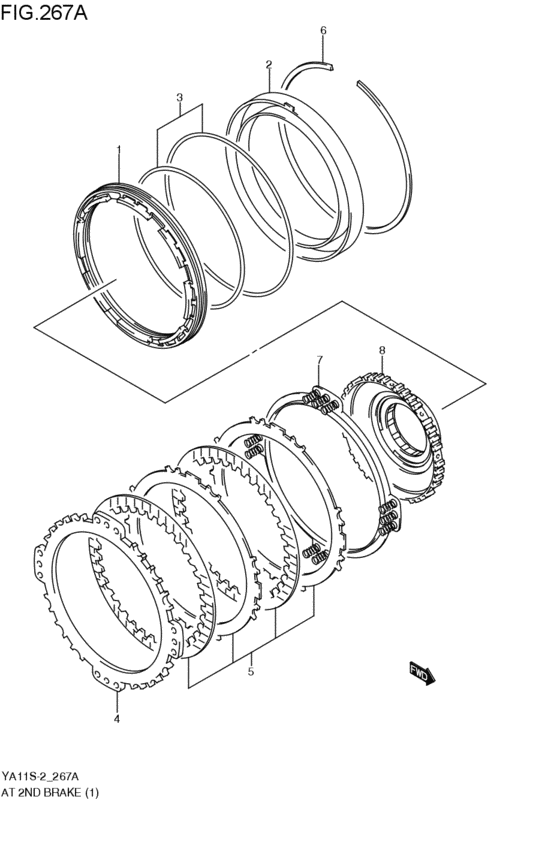

at - second brakes (M15A; 2008-07-01~) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 26731-70H10-000 | PISTON,2ND BRAKE |
| 2 | 26732-79C10-000 | CYLINDER,2ND BRAKE PISTON |
| 3 | 26733-79CT0-000 | O-RING SET,2ND BRAKE |
| 4 | 26741-79C10-000 | PLATE,2ND BRAKE RETAINER |
| 5 | 26742-68JT0-000 | DISC SET,2ND BRAKE |
| 6 | 26744-79C10-000 | RING,2ND BRAKE PLATE |
| 7 | 26750-79C10-000 | SPRING ASSY,2ND BRAKE |
| 8 | 26760-68J10-000 | CLUTCH ASSY,2ND BK |
| OEM | Part name | Category |
|---|---|---|
| 26731-70H10-000 | PISTON,2ND BRAKE | at - second brakes (M15A; 2008-07-01~) |
| 26732-79C10-000 | CYLINDER,2ND BRAKE PISTON | at - second brakes (M15A; 2008-07-01~) |
| 26733-79CT0-000 | O-RING SET,2ND BRAKE | at - second brakes (M15A; 2008-07-01~) |
| 26741-79C10-000 | PLATE,2ND BRAKE RETAINER | at - second brakes (M15A; 2008-07-01~) |
| 26742-68JT0-000 | DISC SET,2ND BRAKE | at - second brakes (M15A; 2008-07-01~) |
| 26744-79C10-000 | RING,2ND BRAKE PLATE | at - second brakes (M15A; 2008-07-01~) |
| 26750-79C10-000 | SPRING ASSY,2ND BRAKE | at - second brakes (M15A; 2008-07-01~) |
| 26760-68J10-000 | CLUTCH ASSY,2ND BK | at - second brakes (M15A; 2008-07-01~) |
