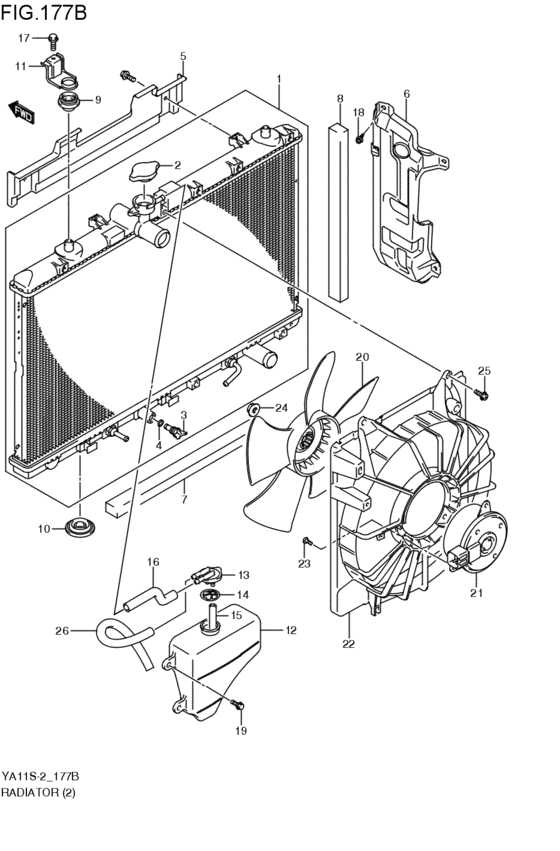

| 02142-0510A-000 |
SCREW - Bolt, oil pump rotor plate |
radiator (J20A; 2008-07-01~) |
| 02142-0510B-000 |
SCREW - Bolt |
radiator (J20A; 2008-07-01~) |
| 02162-0616B-000 |
SCREW - Bolt, adjust |
radiator (J20A; 2008-07-01~) |
| 08316-2005A-000 |
NUT |
radiator (J20A; 2008-07-01~) |
| 09103-08382-000 |
BOLT(8X12) |
radiator (J20A; 2008-07-01~) |
| 09352-70111-600 |
HOSE(7X11X600) |
radiator (J20A; 2008-07-01~) |
| 09409-08327-000 |
CLIP |
radiator (J20A; 2008-07-01~) |
| 17111-63J00-000 |
FAN,COOLING |
radiator (J20A; 2008-07-01~) |
| 17120-80J00-000 |
MOTOR ASSY,COOLING FAN |
radiator (J20A; 2008-07-01~) |
| 17700-80J10-000 |
RADIATOR ASSY |
radiator (J20A; 2008-07-01~) |
| 17751-61A00-000 |
PLUG,DRAIN |
radiator (J20A; 2008-07-01~) |
| 17759-72010-000 |
O-RING |
radiator (J20A; 2008-07-01~) |
| 17760-80J00-000 |
SHROUD |
radiator (J20A; 2008-07-01~) |
| 17790-80J00-000 |
SHROUD,RADIATOR UPPER |
radiator (J20A; 2008-07-01~) |
| 17791-80J00-000 |
SEAL,RADIATOR NO.1 |
radiator (J20A; 2008-07-01~) |
| 17792-80J00-000 |
SEAL,RADIATOR NO.2 |
radiator (J20A; 2008-07-01~) |
| 17793-80J00-000 |
SHROUD,RADIATOR,R |
radiator (J20A; 2008-07-01~) |
| 17812-54G00-000 |
MOUNT,RDTR SUPPORT UPR |
radiator (J20A; 2008-07-01~) |
| 17861-79J00-000 |
BRACKET,RDTR SUPPORT UPPER |
radiator (J20A; 2008-07-01~) |
| 17878-75F00-000 |
MOUNT,RDTR SUPPORT LWR |
radiator (J20A; 2008-07-01~) |
| 17920-75F00-000 |
CAP,RADIATOR |
radiator (J20A; 2008-07-01~) |
| 17931-79J00-000 |
TANK,WATER RESERVE |
radiator (J20A; 2008-07-01~) |
| 17932-60B10-000 |
CAP,WATER RESERVE TANK |
radiator (J20A; 2008-07-01~) |
| 17933-60B00-000 |
RUBBER,WTR RSV TANK CAP - Rubber, tank cap |
radiator (J20A; 2008-07-01~) |
| 17936-80JA0-000 |
HOSE,RSVR TANK VENT |
radiator (J20A; 2008-07-01~) |
| 17939-80JA0-000 |
HOSE,RDTR TO RSV TANK |
radiator (J20A; 2008-07-01~) |
