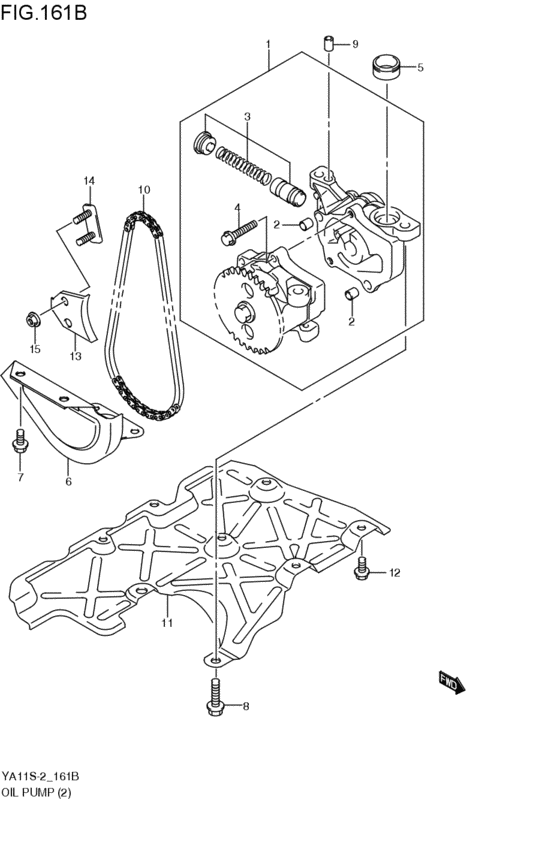

| 01550-0612A-000 |
Bolt |
Oil pump (J20A; 2008-07-01~) |
| 01550-0830A-000 |
Bolt - Bolt, mount oil seal cover |
Oil pump (J20A; 2008-07-01~) |
| 04211-09109-000 |
PIN - Knock pin |
Oil pump (J20A; 2008-07-01~) |
| 07120-0625A-000 |
Bolt - Bolt, cylinder head (l25) |
Oil pump (J20A; 2008-07-01~) |
| 08316-1006A-000 |
NUT |
Oil pump (J20A; 2008-07-01~) |
| 09206-08001-000 |
PIN(8X11) |
Oil pump (J20A; 2008-07-01~) |
| 16100-65D00-000 |
PUMP ASSY,OIL |
Oil pump (J20A; 2008-07-01~) |
| 16114-85FA2-000 |
PIN,OIL PUMP CASE |
Oil pump (J20A; 2008-07-01~) |
| 16150-85FA0-000 |
VALVE SET,OIL PUMP RELIEF |
Oil pump (J20A; 2008-07-01~) |
| 16160-77E00-000 |
Cover comp,oil pump sprocket |
Oil pump (J20A; 2008-07-01~) |
| 16160-77E01-000 |
COVER,OIL PUMP SPROCKET |
Oil pump (J20A; 2008-07-01~) |
| 16171-59J01-000 |
PLATE,OIL PUMP BAFFLE |
Oil pump (J20A; 2008-07-01~) |
| 16760-77E01-000 |
CHAIN,OIL PUMP DRIVE |
Oil pump (J20A; 2008-07-01~) |
| 16781-77E01-000 |
GUIDE,OIL PUMP CHAIN |
Oil pump (J20A; 2008-07-01~) |
| 16790-77E00-000 |
PLATE,OIL PUMP CHAIN GUIDE |
Oil pump (J20A; 2008-07-01~) |
