Search › Model › YB41S
YB41S

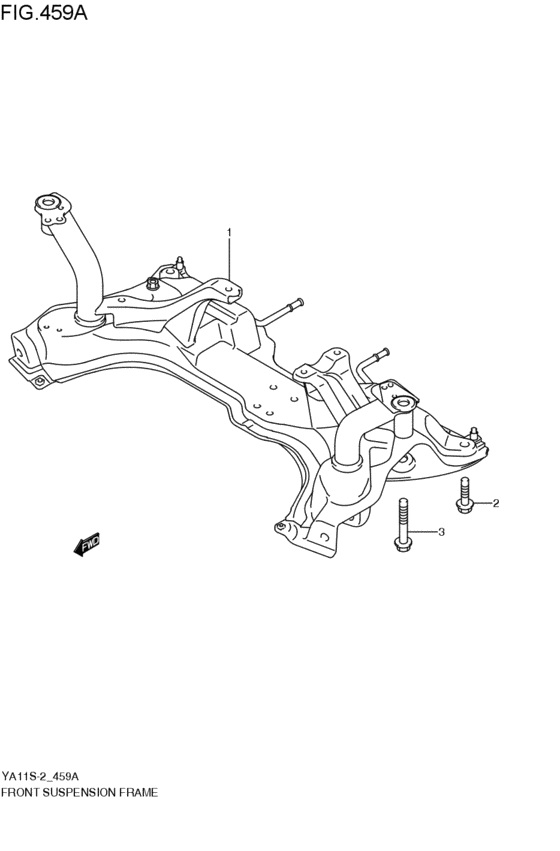

front suspension frame (2008-07-01~) 4
| # | OEM | Part name |
|---|---|---|
| 1 | 45810-80J10-000 | フレーム,フロントサスペンション |
| 1 | 45810-80J11-000 | FRAME,FR SUSPENSION |
| 2 | 09135-14017-000 | BOLT(14X48) |
| 3 | 09135-14018-000 | BOLT(14X77) |
| OEM | Part name | Category |
|---|---|---|
| 09135-14017-000 | BOLT(14X48) | front suspension frame (2008-07-01~) |
| 09135-14018-000 | BOLT(14X77) | front suspension frame (2008-07-01~) |
| 45810-80J10-000 | フレーム,フロントサスペンション | front suspension frame (2008-07-01~) |
| 45810-80J11-000 | FRAME,FR SUSPENSION | front suspension frame (2008-07-01~) |
