Search › Model › YB41S
YB41S

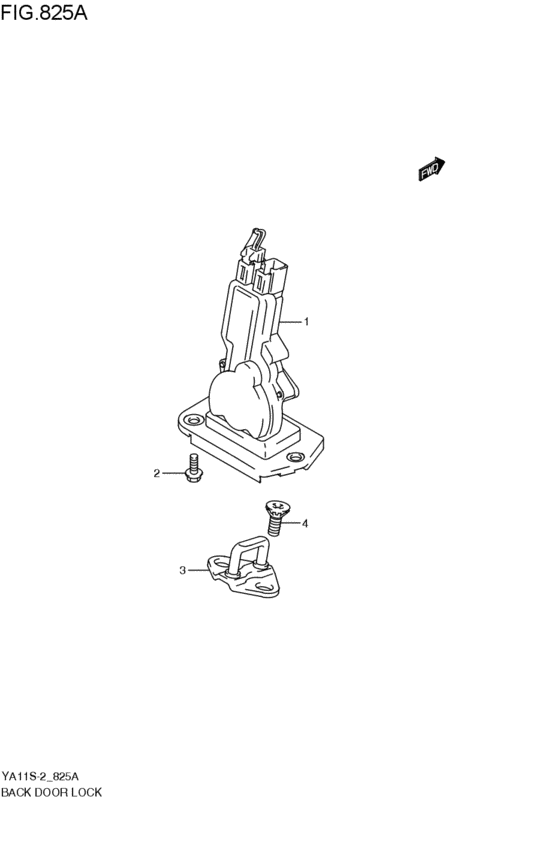

back door lock (5DR; 2008-07-01~) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 82510-80J00-000 | LATCH,BACK DR |
| 2 | 02162-0616A-000 | SCREW |
| 2 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 3 | 82650-79J10-000 | STRIKER,BACK DOOR LATCH |
| 4 | 09137-08004-000 | SCREW(8X18) |
| 4 | 09137-08011-000 | SCREW(8X18) |
| OEM | Part name | Category |
|---|---|---|
| 02162-0616A-000 | SCREW | back door lock (5DR; 2008-07-01~) |
| 02162-0616B-000 | SCREW - Bolt, adjust | back door lock (5DR; 2008-07-01~) |
| 09137-08004-000 | SCREW(8X18) | back door lock (5DR; 2008-07-01~) |
| 09137-08011-000 | SCREW(8X18) | back door lock (5DR; 2008-07-01~) |
| 82510-80J00-000 | LATCH,BACK DR | back door lock (5DR; 2008-07-01~) |
| 82650-79J10-000 | STRIKER,BACK DOOR LATCH | back door lock (5DR; 2008-07-01~) |
