Search › Model › YB11S
YB11S

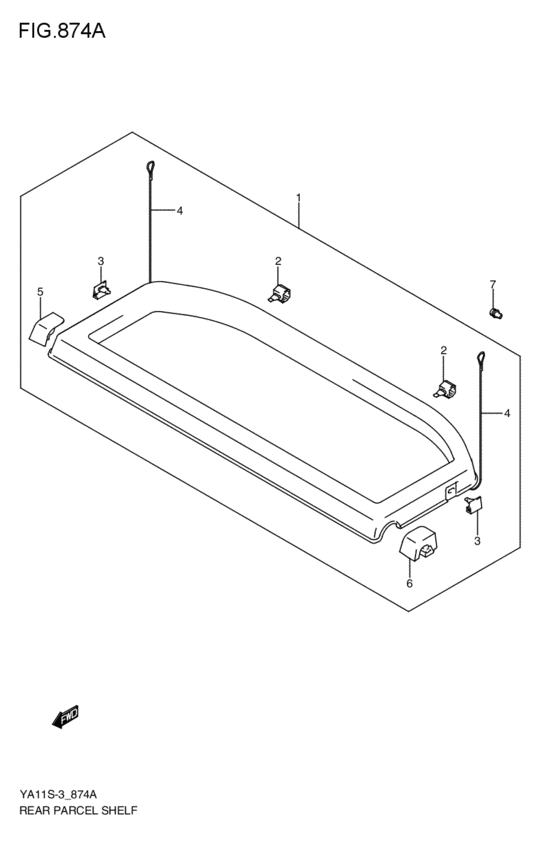

rear purcell shelf (5DR; 2009-01-01~) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 88910-80J00-P8G | SHELF,RR PARCEL |
| 2 | 88912-80J00-000 | CUSHION,REAR PARCEL REAR |
| 3 | 88914-80J00-000 | CUSHION,REAR PARCEL SIDE |
| 4 | 88915-80J00-000 | STRING,RR PARCEL |
| 5 | 88913-80J00-000 | HOLDER,RR PARCEL,R |
| 6 | 88917-80J00-000 | HOLDER,RR PARCEL,L |
| 7 | 88919-80J00-000 | HOOK,RR PARCEL STRING |
| OEM | Part name | Category |
|---|---|---|
| 88910-80J00-P8G | SHELF,RR PARCEL | rear purcell shelf (5DR; 2009-01-01~) |
| 88912-80J00-000 | CUSHION,REAR PARCEL REAR | rear purcell shelf (5DR; 2009-01-01~) |
| 88913-80J00-000 | HOLDER,RR PARCEL,R | rear purcell shelf (5DR; 2009-01-01~) |
| 88914-80J00-000 | CUSHION,REAR PARCEL SIDE | rear purcell shelf (5DR; 2009-01-01~) |
| 88915-80J00-000 | STRING,RR PARCEL | rear purcell shelf (5DR; 2009-01-01~) |
| 88917-80J00-000 | HOLDER,RR PARCEL,L | rear purcell shelf (5DR; 2009-01-01~) |
| 88919-80J00-000 | HOOK,RR PARCEL STRING | rear purcell shelf (5DR; 2009-01-01~) |
