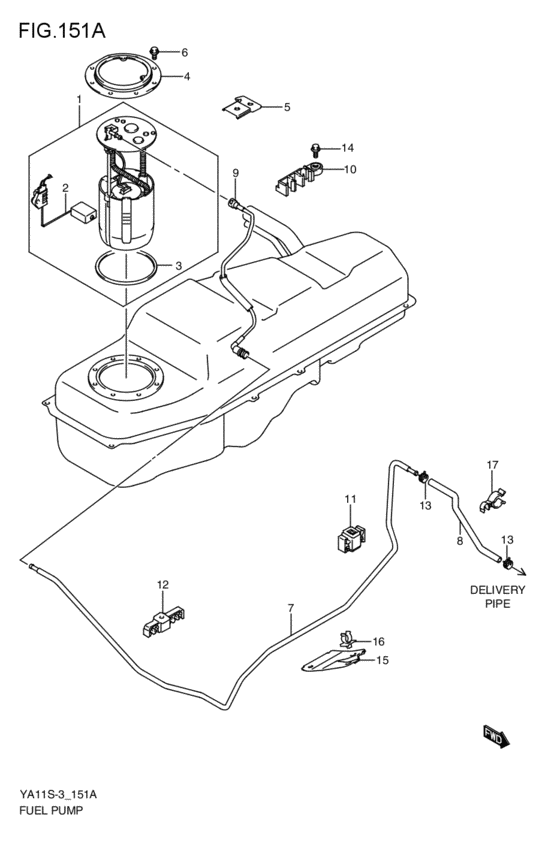

Fuel Pump (2009-01-01~)
16
| # | OEM | Part name |
|---|
| 1 |
15100-80840-000 |
PUMP SET,FUEL |
| 2 |
34810-80J00-000 |
GAUGE ASSY,FUEL LEVEL |
| 3 |
15111-80J00-000 |
GASKET,FUEL PUMP |
| 4 |
15121-61J00-000 |
PLATE,FUEL PUMP |
| 5 |
15131-63J00-000 |
BRACKET,FUEL TANK EARTH |
| 6 |
02162-0610A-000 |
SCREW |
| 7 |
15811-79J00-000 |
PIPE,FUEL FEED,R |
| 8 |
15815-54LA0-000 |
HOSE,FUEL PIPE TO ENG |
| 9 |
15821-80J00-000 |
PIPE,FUEL TANK SIDE |
| 10 |
15824-80J00-000 |
CLAMP,FUEL PIPE |
| 11 |
15881-54L00-000 |
CLAMP ASSY |
| 12 |
15892-65J00-000 |
CLAMP,FUEL PIPE |
| 13 |
09401-11420-000 |
CLIP |
| 15 |
15873-79J00-000 |
COVER,FUEL PIPE |
| 16 |
09403-10324-000 |
CLAMP |
| 17 |
09408-00157-000 |
CLAMP |
| OEM |
Part name |
Category |
| 02162-0610A-000 |
SCREW |
Fuel Pump (2009-01-01~) |
| 09401-11420-000 |
CLIP |
Fuel Pump (2009-01-01~) |
| 09403-10324-000 |
CLAMP |
Fuel Pump (2009-01-01~) |
| 09408-00157-000 |
CLAMP |
Fuel Pump (2009-01-01~) |
| 15100-80840-000 |
PUMP SET,FUEL |
Fuel Pump (2009-01-01~) |
| 15111-80J00-000 |
GASKET,FUEL PUMP |
Fuel Pump (2009-01-01~) |
| 15121-61J00-000 |
PLATE,FUEL PUMP |
Fuel Pump (2009-01-01~) |
| 15131-63J00-000 |
BRACKET,FUEL TANK EARTH |
Fuel Pump (2009-01-01~) |
| 15811-79J00-000 |
PIPE,FUEL FEED,R |
Fuel Pump (2009-01-01~) |
| 15815-54LA0-000 |
HOSE,FUEL PIPE TO ENG |
Fuel Pump (2009-01-01~) |
| 15821-80J00-000 |
PIPE,FUEL TANK SIDE |
Fuel Pump (2009-01-01~) |
| 15824-80J00-000 |
CLAMP,FUEL PIPE |
Fuel Pump (2009-01-01~) |
| 15873-79J00-000 |
COVER,FUEL PIPE |
Fuel Pump (2009-01-01~) |
| 15881-54L00-000 |
CLAMP ASSY |
Fuel Pump (2009-01-01~) |
| 15892-65J00-000 |
CLAMP,FUEL PIPE |
Fuel Pump (2009-01-01~) |
| 34810-80J00-000 |
GAUGE ASSY,FUEL LEVEL |
Fuel Pump (2009-01-01~) |
