Search › Model › YB11S
YB11S

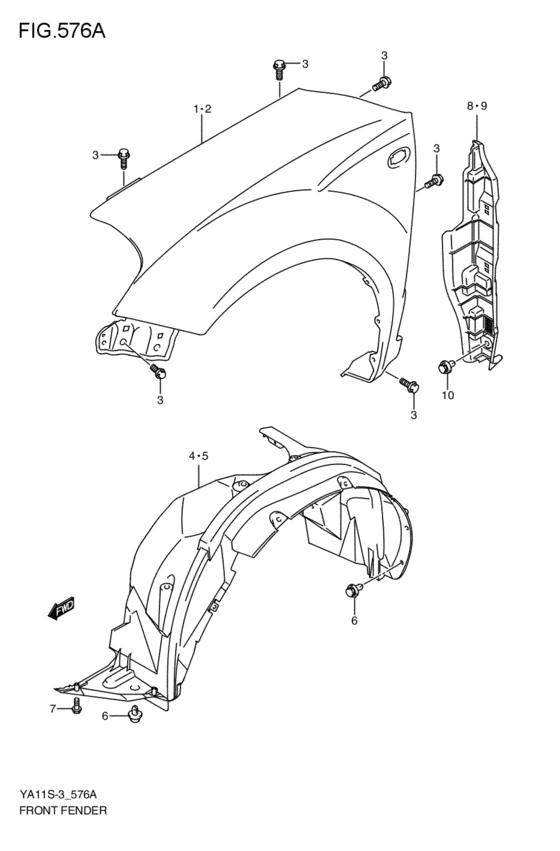

front fender (2009-01-01~) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 57600-80860-000 | PANEL SET,FR FENDER,R |
| 1 | 57600-80870-000 | PANEL SET,FR FENDER,R |
| 2 | 57700-80810-000 | PANEL SET,FR FENDER,L |
| 2 | 57700-80820-000 | PANEL SET,FR FENDER,L |
| 3 | 01550-0612A-000 | Bolt |
| 4 | 72321-54L00-000 | LINING,FR FENDER,R |
| 5 | 72322-54L00-000 | LINING,FR FENDER,L |
| 6 | 09409-07332-000 | CLIP |
| 7 | 09136-05068-000 | SCREW(5X20) |
| 8 | 72351-80J00-000 | COVER,FR FENDER,R |
| 9 | 72352-80J00-000 | COVER,FR FENDER,L |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | front fender (2009-01-01~) |
| 09136-05068-000 | SCREW(5X20) | front fender (2009-01-01~) |
| 09409-07332-000 | CLIP | front fender (2009-01-01~) |
| 57600-80860-000 | PANEL SET,FR FENDER,R | front fender (2009-01-01~) |
| 57600-80870-000 | PANEL SET,FR FENDER,R | front fender (2009-01-01~) |
| 57700-80810-000 | PANEL SET,FR FENDER,L | front fender (2009-01-01~) |
| 57700-80820-000 | PANEL SET,FR FENDER,L | front fender (2009-01-01~) |
| 72321-54L00-000 | LINING,FR FENDER,R | front fender (2009-01-01~) |
| 72322-54L00-000 | LINING,FR FENDER,L | front fender (2009-01-01~) |
| 72351-80J00-000 | COVER,FR FENDER,R | front fender (2009-01-01~) |
| 72352-80J00-000 | COVER,FR FENDER,L | front fender (2009-01-01~) |
