| 01550-1025A-000 |
Bolt - Bolt, drive gear |

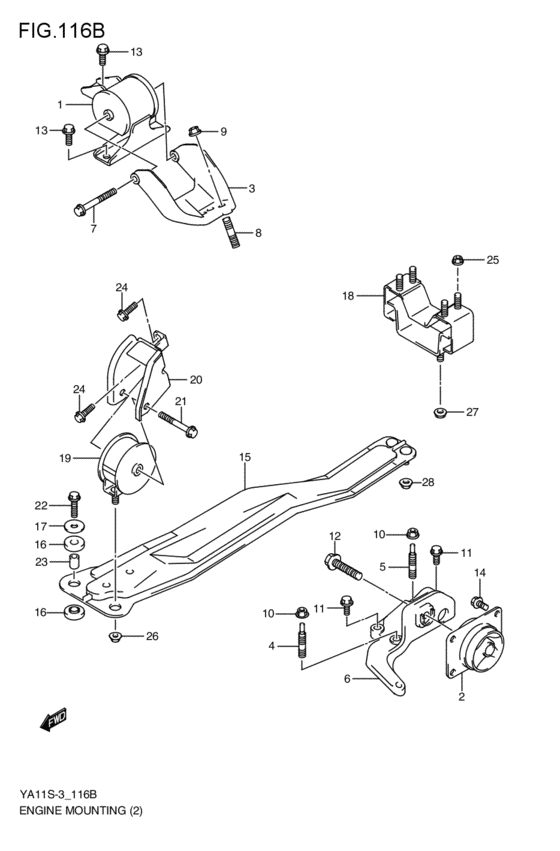

engine mounting (4WD; 2009-01-01~) |
| 01550-1035A-000 |
Bolt - Bolt, fr fork upper |
engine mounting (4WD; 2009-01-01~) |
| 01550-1245A-000 |
Bolt |
engine mounting (4WD; 2009-01-01~) |
| 01551-1025A-000 |
Bolt |
engine mounting (4WD; 2009-01-01~) |
| 08316-1008A-000 |
NUT - Nut, idle gear shaft |
engine mounting (4WD; 2009-01-01~) |
| 08316-1010A-000 |
NUT - Nut, kick starter |
engine mounting (4WD; 2009-01-01~) |
| 09103-10322-000 |
BOLT(10X125) |
engine mounting (4WD; 2009-01-01~) |
| 09103-10341-000 |
BOLT(10X80) |
engine mounting (4WD; 2009-01-01~) |
| 09103-10401-000 |
BOLT(10X40) |
engine mounting (4WD; 2009-01-01~) |
| 09108-10136-000 |
BOLT,STUD(10X50) |
engine mounting (4WD; 2009-01-01~) |
| 09159-10115-000 |
NUT |
engine mounting (4WD; 2009-01-01~) |
| 09180-10302-000 |
SPACER(10.2X16X20) |
engine mounting (4WD; 2009-01-01~) |
| 11610-80JA0-000 |
MOUNTING, ENGINE RH |
engine mounting (4WD; 2009-01-01~) |
| 11620-80JA0-000 |
MOUNTING, ENGINE LH |
engine mounting (4WD; 2009-01-01~) |
| 11630-79J40-000 |
Member comp,mounting |
engine mounting (4WD; 2009-01-01~) |
| 11630-79J41-000 |
MEMBER,MTG |
engine mounting (4WD; 2009-01-01~) |
| 11641-79J00-000 |
BRACKET,ENG MTG,R |
engine mounting (4WD; 2009-01-01~) |
| 11653-79J50-000 |
BOLT,ENG,L MTG BRKT STUD |
engine mounting (4WD; 2009-01-01~) |
| 11653-80JA0-000 |
BOLT,ENG,L MTG BRKT STUD |
engine mounting (4WD; 2009-01-01~) |
| 11671-79J10-000 |
BRACKET,ENG MTG,L |
engine mounting (4WD; 2009-01-01~) |
| 11684-80J00-000 |
CUSHION,MTG MEMBER |
engine mounting (4WD; 2009-01-01~) |
| 11685-79J00-000 |
WASHER |
engine mounting (4WD; 2009-01-01~) |
| 11710-80J40-000 |
MOUNTING,ENG REAR |
engine mounting (4WD; 2009-01-01~) |
| 11720-80JA0-000 |
MOUNTING,ENG FRONT |
engine mounting (4WD; 2009-01-01~) |
| 11761-79J00-000 |
BRACKET,ENG FR MTG |
engine mounting (4WD; 2009-01-01~) |
