Search › Model › YA41S
YA41S

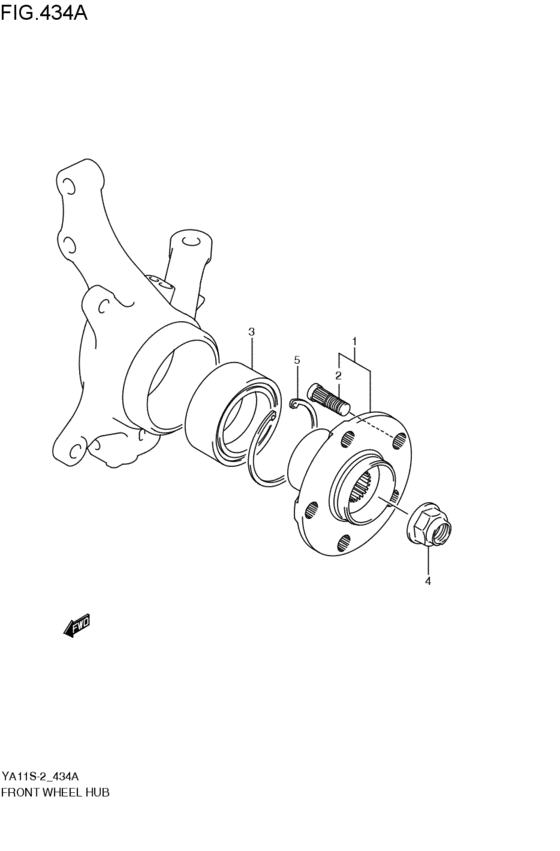

front wheel hub (2008-07-01~) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 43420-80800-000 | Hub set,front wheel |
| 1 | 43420-80801-000 | HUB SET,FR WHL |
| 2 | 09119-12012-000 | BOLT(12X38) |
| 3 | 43440-80J00-000 | BEARING,FR WHEEL |
| 4 | 43459-65J00-000 | NUT,FR AXLE |
| 5 | 09381-84004-000 | RING,SNAP |
| OEM | Part name | Category |
|---|---|---|
| 09119-12012-000 | BOLT(12X38) | front wheel hub (2008-07-01~) |
| 09381-84004-000 | RING,SNAP | front wheel hub (2008-07-01~) |
| 43420-80800-000 | Hub set,front wheel | front wheel hub (2008-07-01~) |
| 43420-80801-000 | HUB SET,FR WHL | front wheel hub (2008-07-01~) |
| 43440-80J00-000 | BEARING,FR WHEEL | front wheel hub (2008-07-01~) |
| 43459-65J00-000 | NUT,FR AXLE | front wheel hub (2008-07-01~) |
