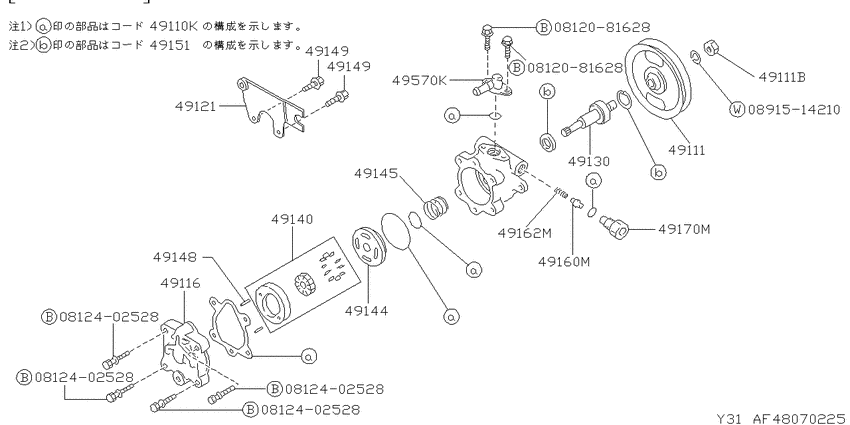

| 08120-81628 |
Bolt-hexagon |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 08124-02528 |
Bolt-hexagon |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 08915-14210 |
WASHER-LOCK |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49116-15V00 |
Cover-Rear, Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49116-28N00 |
Cover-Rear, Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49116-51E00 |
COVER-REAR,POWER STEERING PUMP |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49121-16V00 |
Bracket Assy-Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49130-19V00 |
Shaft-Drive, Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49130-29C00 |
Shaft-Drive, Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49132-16V00 |
Pulley-Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49133-50L00 |
Nut-Pulley, Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49140-15V00 |
Rotor & Camring Set-Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49140-28N00 |
Rotor & Camring Set-Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49144-15V00 |
Plate-Side, Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49144-63U10 |
Plate-Side, Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49145-15V00 |
Spring-Side Plate |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49148-15V00 |
Pin-Camring, Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49148-28N00 |
Pin-Camring, Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49149-15V00 |
Bolt-Bracket, Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49161-22J10 |
Connector Assy-Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49161-71V15 |
Connector Assy-Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49165-15V00 |
Valve Assy-Flow Control |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49165-F6400 |
Valve Assy-Flow Control |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49167-15V00 |
Spring-Flow Control Valve |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49167-63U00 |
Spring-Flow Control Valve |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49171-40P00 |
Connector-Outlet |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49580-09G00 |
Pipe Kit-Suction, Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49591-03U26 |
Seal Kit-Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49591-50L29 |
Seal Kit-Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
| 49591-50L88 |
Seal Kit-Power Steering Pump |
power steering control (1989-08-01 ~ ; 標準型(ポンプ構成部品); VG30D#) |
