| 01555-00211 |
CLAMP-HOSE |

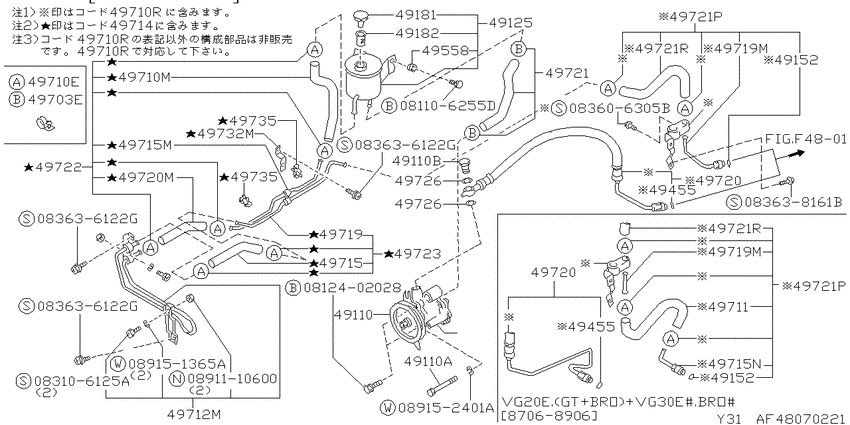

power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 01555-00241 |
CLIP |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 08110-6255D |
Bolt-hexagon |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 08124-02028 |
Bolt-hexagon |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 08310-6125A |
スクリユ-,マシン |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 08360-6305B |
スクリユ-,マシン |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 08911-10600 |
ナツト,ヘクサゴン |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 48361-55S00 |
Bolt |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49110-15V00 |
Pump Assy-Power Steering |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49115-43L00 |
Tank Assy-Reservoir |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49180-43L05 |
Tank Assy-Reservoir |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49181-W1700 |
Cap Assy-Pump |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49182-42L00 |
Filter Assy-Pump |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49591-50L88 |
Seal Kit-Power Steering Pump |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49717-10V00 |
Hose Assy-Suction, Power Steering |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49720-65V00 |
Hose Assy-Pressure, Power Steering |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49721-10V00 |
Hose & Tube Assy-Power Steering |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49721-11V00 |
Hose & Tube Assy-Power Steering |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49721-11V01 |
Hose & Tube Assy-Power Steering |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49725-10V00 |
Hose-Return, Power Steering |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49725-11V00 |
Hose-Return, Power Steering |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49725-11V01 |
Hose-Return, Power Steering |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49725-11V02 |
Hose-Return, Power Steering |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49726-11V00 |
Tube Assy-Power Steering |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49726-11V01 |
Tube Assy-Power Steering |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49726-15V00 |
Tube Assy-Power Steering |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49730-11V00 |
Bracket-Tube |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49790-10V05 |
Tube Assy-Power Steering |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49790-11V00 |
Tube Assy-Power Steering |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
| 49791-28E00 |
CLIP |
power steering control (1987-06-01 ~ ; 全体図; VG20E+VG30E#) |
