Search › Model › Y31

Y31

Nissan CEDRIC-GLORIA · 1987 · 6,751 parts · 278 categories

6,751 items

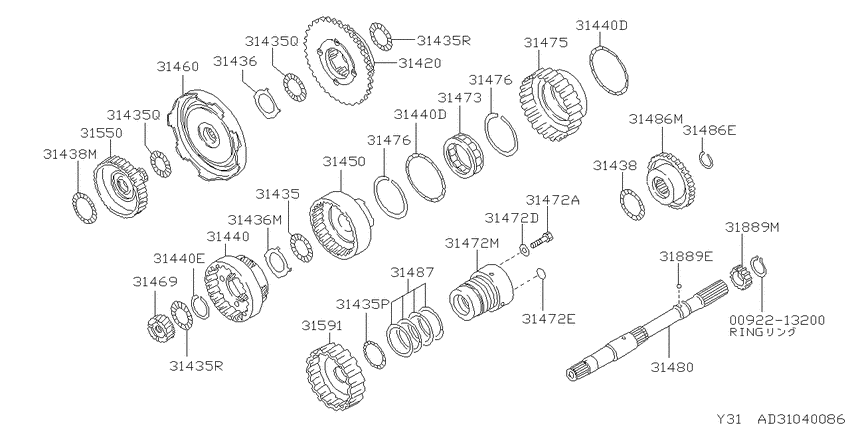

planetary gear (1988-01-01 ~ ; RE4R03A VG30DT) 52

#	OEM	Part name
31420	31420-51X00	Carrier Assy-Front Planet
31435	31407-51X03	Bearing-Needle, Thrust
31435	31435-21X00	Bearing-Needle, Thrust
31435	31407-41X04	Bearing-Needle, Thrust
31435	31407-51X02	Bearing-Needle, Thrust
31435	31407-51X01	Bearing-Needle, Thrust
31435	31407-41X09	Bearing-Needle, Thrust
31435	31455-21X00	Bearing-Needle, Thrust
31436	31435-51X00	Race-Bearing
31436	31464-21X00	Race-Bearing
31436	31435-41X00	Race-Bearing
31436	31435-51X01	Race-Bearing
31438	31438-X0100	Bearing-Needle, Thrust
31440	31440-51X00	Carrier Assy-Rear Planet
31440	31440-51X84	Carrier Assy-Rear Planet
31440	31508-41X00	Washer-Thrust
31440	31506-41X02	Ring-Snap
31450	31450-41X01	Gear Assy-Internal
31450	31450-51X00	Gear Assy-Internal
31460	31460-41X01	Gear Assy-Sun
31460	31460-51X00	Gear Assy-Sun
31469	31469-41X02	Gear-Sun, Rear
31469	31469-51X00	Gear-Sun, Rear
31472	31377-41X01	Bolt
31472	31377-51X03	Bolt
31472	31377-51X05	Bolt
31472	31378-41X00	Washer-Plain
31472	31954-X6100	Seal-Oil
31472	31472-41X00	Race-Inner, One Way Clutch
31472	31472-51X01	Race-Inner, One Way Clutch
31472	31472-51X02	Race-Inner, One Way Clutch
31472	31472-51X03	Race-Inner, One Way Clutch
31473	31484-41X00	Clutch Assy-One Way
31473	31484-51X00	Clutch Assy-One Way
31473	31506-41X03	Ring-Snap, Foward Clutch
31473	31473-41X00	Clutch Assy-Low, One Way
31473	31571-41X26	Clutch assy-low,one way
31473	31473-51X00	Clutch Assy-Low, One Way
31475	31487-41X00	Race-Outer, One Way Clutch
31475	31487-51X00	Race-Outer, One Way Clutch
31476	31506-41X04	Ring-Snap
31476	31506-51X04	Ring-Snap
31480	31480-51X00	Shaft Assy-Output
31486	31506-41X01	Ring-Snap
31486	31486-41X00	Gear-Parking
31487	31525-41X00	Ring-Seal
31550	31550-41X00	Hub-Clutch, High
31550	31550-51X01	Hub-Clutch, High
31591	31591-41X00	Hub-Overrun Clutch
31591	31591-51X00	Hub-Overrun Clutch
31889	32701-03G00	Gear-Drive, Speedometer
92213200	00922-13200	RING SNAP

OEM	Part name	Category
00922-13200	RING SNAP	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31377-41X01	Bolt	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31377-51X03	Bolt	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31377-51X05	Bolt	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31378-41X00	Washer-Plain	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31407-41X04	Bearing-Needle, Thrust	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31407-41X09	Bearing-Needle, Thrust	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31407-51X01	Bearing-Needle, Thrust	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31407-51X02	Bearing-Needle, Thrust	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31407-51X03	Bearing-Needle, Thrust	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31420-51X00	Carrier Assy-Front Planet	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31435-21X00	Bearing-Needle, Thrust	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31435-41X00	Race-Bearing	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31435-51X00	Race-Bearing	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31435-51X01	Race-Bearing	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31438-X0100	Bearing-Needle, Thrust	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31440-51X00	Carrier Assy-Rear Planet	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31440-51X84	Carrier Assy-Rear Planet	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31450-41X01	Gear Assy-Internal	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31450-51X00	Gear Assy-Internal	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31455-21X00	Bearing-Needle, Thrust	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31460-41X01	Gear Assy-Sun	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31460-51X00	Gear Assy-Sun	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31464-21X00	Race-Bearing	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31469-41X02	Gear-Sun, Rear	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31469-51X00	Gear-Sun, Rear	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31472-41X00	Race-Inner, One Way Clutch	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31472-51X01	Race-Inner, One Way Clutch	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31472-51X02	Race-Inner, One Way Clutch	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31472-51X03	Race-Inner, One Way Clutch	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31473-41X00	Clutch Assy-Low, One Way	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31473-51X00	Clutch Assy-Low, One Way	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31480-51X00	Shaft Assy-Output	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31484-41X00	Clutch Assy-One Way	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31484-51X00	Clutch Assy-One Way	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31486-41X00	Gear-Parking	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31487-41X00	Race-Outer, One Way Clutch	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31487-51X00	Race-Outer, One Way Clutch	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31506-41X01	Ring-Snap	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31506-41X02	Ring-Snap	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31506-41X03	Ring-Snap, Foward Clutch	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31506-41X04	Ring-Snap	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31506-51X04	Ring-Snap	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31508-41X00	Washer-Thrust	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31525-41X00	Ring-Seal	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31550-41X00	Hub-Clutch, High	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31550-51X01	Hub-Clutch, High	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31571-41X26	Clutch assy-low,one way	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31591-41X00	Hub-Overrun Clutch	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31591-51X00	Hub-Overrun Clutch	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
31954-X6100	Seal-Oil	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
32701-03G00	Gear-Drive, Speedometer	planetary gear (1988-01-01 ~ ; RE4R03A VG30DT)
