Y12

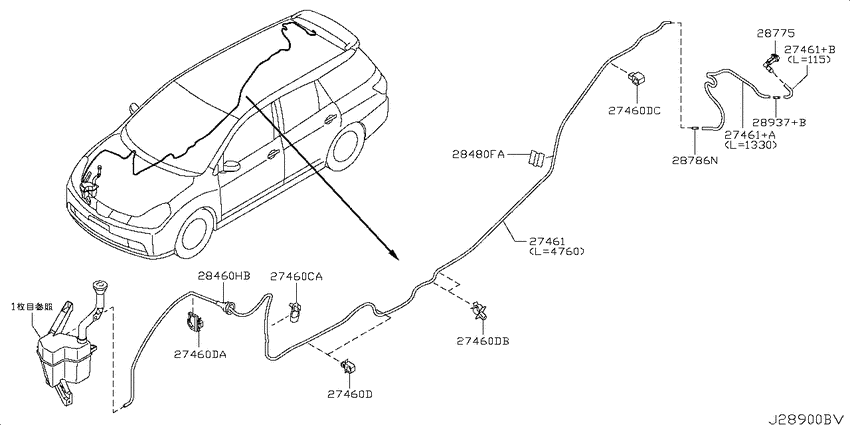

Windshield washer (2006-12-01 ~ 2008-01-01; ﾘｱ; W) 7
| # | OEM | Part name |
|---|---|---|
| 27460 | 24225-3J101 | Clip-Wiring Harness |
| 27460 | 28945-91P00 | Clip |
| 27461 | 28975-CV000 | Hose-Washer |
| 27461 | 28975-CV100 | ホ-ス,ウオツシヤ- |
| 28460 | 28982-ED000 | Grommet |
| 28480 | 24271-N7100 | Protector-Flat Wire |
| 28775 | 28970-CV000 | Nozzle Assy-Rear Window Washer |
| OEM | Part name | Category |
|---|---|---|
| 24225-3J101 | Clip-Wiring Harness | Windshield washer (2006-12-01 ~ 2008-01-01; ﾘｱ; W) |
| 24271-N7100 | Protector-Flat Wire | Windshield washer (2006-12-01 ~ 2008-01-01; ﾘｱ; W) |
| 28945-91P00 | Clip | Windshield washer (2006-12-01 ~ 2008-01-01; ﾘｱ; W) |
| 28970-CV000 | Nozzle Assy-Rear Window Washer | Windshield washer (2006-12-01 ~ 2008-01-01; ﾘｱ; W) |
| 28975-CV000 | Hose-Washer | Windshield washer (2006-12-01 ~ 2008-01-01; ﾘｱ; W) |
| 28975-CV100 | ホ-ス,ウオツシヤ- | Windshield washer (2006-12-01 ~ 2008-01-01; ﾘｱ; W) |
| 28982-ED000 | Grommet | Windshield washer (2006-12-01 ~ 2008-01-01; ﾘｱ; W) |
