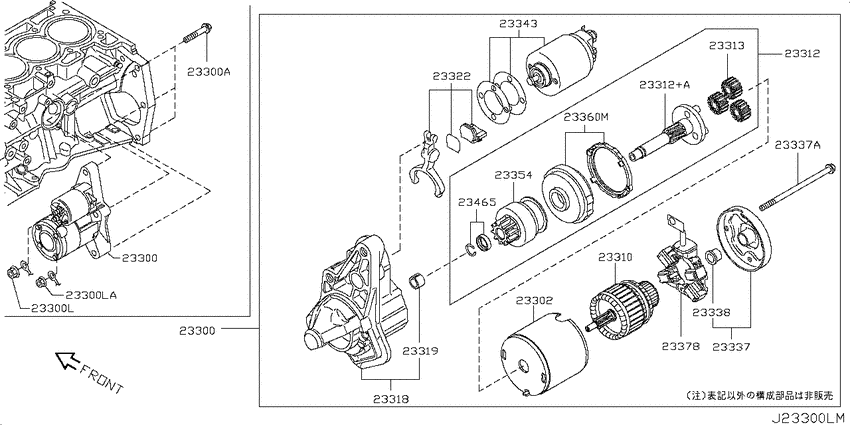

| 23300-BC20A |
Motor Assy-Starter |
Starter motor (2006-12-01 ~ ; HR15DE) |
| 23302-BC20A |
Yoke Assy |
Starter motor (2006-12-01 ~ ; HR15DE) |
| 23310-ED001 |
Armature Assy |
Starter motor (2006-12-01 ~ ; HR15DE) |
| 23312-ED001 |
Pinion Assy |
Starter motor (2006-12-01 ~ ; HR15DE) |
| 23312-ED011 |
Pinion Assy |
Starter motor (2006-12-01 ~ ; HR15DE) |
| 23318-BC200 |
Case Assy-Gear |
Starter motor (2006-12-01 ~ ; HR15DE) |
| 23319-8Y000 |
Metal-Gear Case |
Starter motor (2006-12-01 ~ ; HR15DE) |
| 23322-ED000 |
Lever Set-Shift |
Starter motor (2006-12-01 ~ ; HR15DE) |
| 23337-ET80A |
Cover Assy-Rear |
Starter motor (2006-12-01 ~ ; HR15DE) |
| 23338-8Y000 |
Metal-Rear Cover |
Starter motor (2006-12-01 ~ ; HR15DE) |
| 23340-BC20A |
Bolt-Through |
Starter motor (2006-12-01 ~ ; HR15DE) |
| 23343-BC20A |
Switch Assy-Magnetic |
Starter motor (2006-12-01 ~ ; HR15DE) |
| 23350-8Y000 |
Internal Gear Assy |
Starter motor (2006-12-01 ~ ; HR15DE) |
| 23354-ED000 |
Clutch Assy |
Starter motor (2006-12-01 ~ ; HR15DE) |
| 23361-42L70 |
Planet Gear |
Starter motor (2006-12-01 ~ ; HR15DE) |
| 23378-ED000 |
Holder Assy-Brush |
Starter motor (2006-12-01 ~ ; HR15DE) |
| 23465-42L70 |
Stopper Set-Pinion |
Starter motor (2006-12-01 ~ ; HR15DE) |
