Search › Model › Y12
Y12

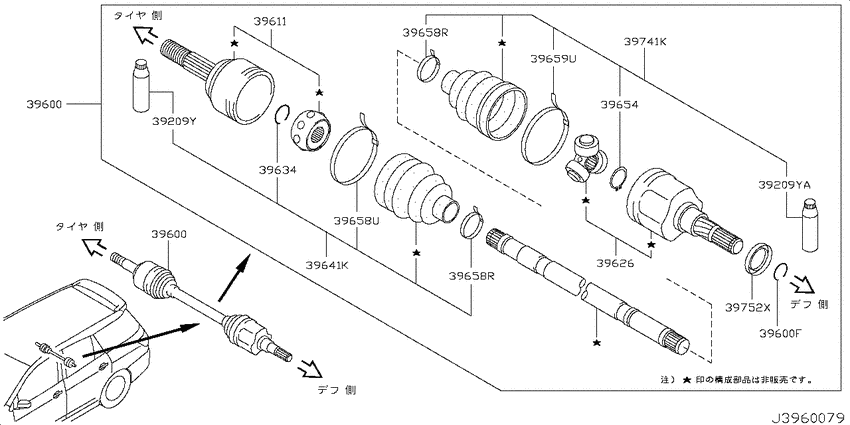

Rear drive shaft (2006-12-01 ~ ; 右側; 4WD.HR15DE) 10
| # | OEM | Part name |
|---|---|---|
| 39600 | 39600-EN100 | Shaft Assy-Rear Drive |
| 39600 | 38225-01B00 | Clip-Drive Shaft |
| 39611 | 39211-EN100 | Joint Assy-Outer |
| 39626 | 39711-2U600 | Joint Assy-Inner |
| 39634 | 39234-2U600 | Seal-Oil |
| 39654 | 39708-AX40A | Ring-Snap, Drive Shaft |
| 39658 | 39242-2U611 | Band-Boot, Drive Shaft Outer |
| 39658 | 39242-2U610 | Band-Boot, Drive Shaft Outer |
| 39659 | 39742-2U610 | Band-Boot Drive Shaft Inner |
| 39741 | 39741-2U626 | Repair Kit-Dust Boot, Rear Drive Shaft |
| OEM | Part name | Category |
|---|---|---|
| 38225-01B00 | Clip-Drive Shaft | Rear drive shaft (2006-12-01 ~ ; 右側; 4WD.HR15DE) |
| 39211-EN100 | Joint Assy-Outer | Rear drive shaft (2006-12-01 ~ ; 右側; 4WD.HR15DE) |
| 39234-2U600 | Seal-Oil | Rear drive shaft (2006-12-01 ~ ; 右側; 4WD.HR15DE) |
| 39242-2U610 | Band-Boot, Drive Shaft Outer | Rear drive shaft (2006-12-01 ~ ; 右側; 4WD.HR15DE) |
| 39242-2U611 | Band-Boot, Drive Shaft Outer | Rear drive shaft (2006-12-01 ~ ; 右側; 4WD.HR15DE) |
| 39600-EN100 | Shaft Assy-Rear Drive | Rear drive shaft (2006-12-01 ~ ; 右側; 4WD.HR15DE) |
| 39708-AX40A | Ring-Snap, Drive Shaft | Rear drive shaft (2006-12-01 ~ ; 右側; 4WD.HR15DE) |
| 39711-2U600 | Joint Assy-Inner | Rear drive shaft (2006-12-01 ~ ; 右側; 4WD.HR15DE) |
| 39741-2U626 | Repair Kit-Dust Boot, Rear Drive Shaft | Rear drive shaft (2006-12-01 ~ ; 右側; 4WD.HR15DE) |
| 39742-2U610 | Band-Boot Drive Shaft Inner | Rear drive shaft (2006-12-01 ~ ; 右側; 4WD.HR15DE) |
