Y12

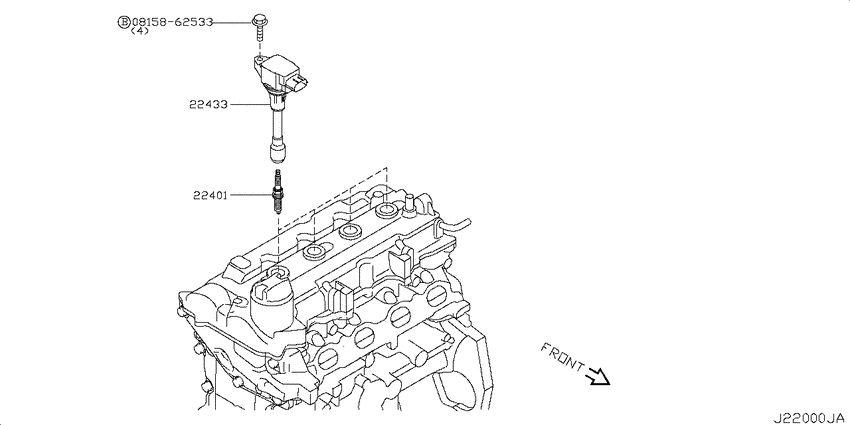

Ignition System (2006-12-01 ~ ; HR15DE) 4
| # | OEM | Part name |
|---|---|---|
| 22401 | 22401-ED715 | Plug-Spark |
| 22433 | 22448-ED000 | Coil Assy-Ignition |
| 22433 | 22448-1KT0A | Ignition Coil Assy |
| 815862533 | 08158-62533 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 08158-62533 | BOLT | Ignition System (2006-12-01 ~ ; HR15DE) |
| 22401-ED715 | Plug-Spark | Ignition System (2006-12-01 ~ ; HR15DE) |
| 22448-1KT0A | Ignition Coil Assy | Ignition System (2006-12-01 ~ ; HR15DE) |
| 22448-ED000 | Coil Assy-Ignition | Ignition System (2006-12-01 ~ ; HR15DE) |
