Y12

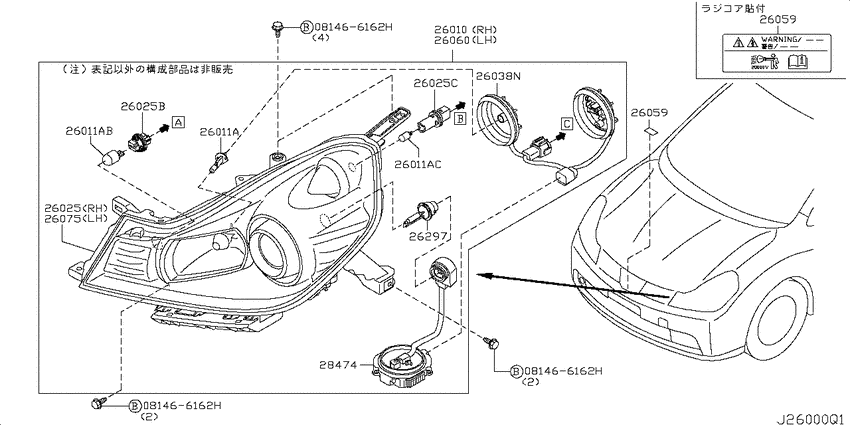

Head lamp (2007-11-01 ~ ; ｷｾﾉﾝ; *W) 8
| # | OEM | Part name |
|---|---|---|
| 26010 | 26010-CV010 | Lamp Assy-Rh |
| 26025 | 26025-CV01A | Housing Assy-Head Lamp, Rh |
| 26038 | 26038-CV00A | Harness Assy-Head Lamp |
| 26038 | 26038-CV01A | Harness Assy-Head Lamp |
| 26060 | 26060-CV010 | Lamp Assy-Lh |
| 26060 | 26060-CV01A | Lamp Assy-Lh |
| 26075 | 26075-CV01A | Housing Assy-Head Lamp, Lh |
| 28474 | 28474-89915 | Control Unit-Xenon Head Lamp |
| OEM | Part name | Category |
|---|---|---|
| 26010-CV010 | Lamp Assy-Rh | Head lamp (2007-11-01 ~ ; ｷｾﾉﾝ; *W) |
| 26025-CV01A | Housing Assy-Head Lamp, Rh | Head lamp (2007-11-01 ~ ; ｷｾﾉﾝ; *W) |
| 26038-CV00A | Harness Assy-Head Lamp | Head lamp (2007-11-01 ~ ; ｷｾﾉﾝ; *W) |
| 26038-CV01A | Harness Assy-Head Lamp | Head lamp (2007-11-01 ~ ; ｷｾﾉﾝ; *W) |
| 26060-CV010 | Lamp Assy-Lh | Head lamp (2007-11-01 ~ ; ｷｾﾉﾝ; *W) |
| 26060-CV01A | Lamp Assy-Lh | Head lamp (2007-11-01 ~ ; ｷｾﾉﾝ; *W) |
| 26075-CV01A | Housing Assy-Head Lamp, Lh | Head lamp (2007-11-01 ~ ; ｷｾﾉﾝ; *W) |
| 28474-89915 | Control Unit-Xenon Head Lamp | Head lamp (2007-11-01 ~ ; ｷｾﾉﾝ; *W) |
