Y10X

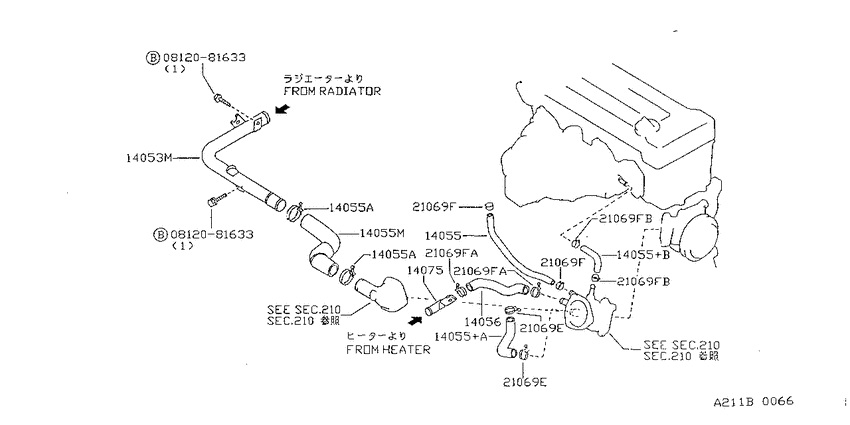

Water hose & piping (1993-07-01 ~ ; GA15DS) 9
| # | OEM | Part name |
|---|---|---|
| 14053 | 21021-53Y00 | Pipe-Water |
| 14053 | 21021-F4110 | Pipe-Water |
| 14055 | 14055-53Y02 | Hose-Water |
| 14055 | 01555-00281 | CLAMP-HOSE |
| 21069 | 01555-00231 | CLAMP |
| 21069 | 16439-42L00 | Clamp-Hose, A |
| 21069 | 16439-V5000 | Clamp-Hose A |
| 21069 | 16439-56S00 | Clamp-Hose |
| 812081633 | 08120-81633 | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 01555-00231 | CLAMP | Water hose & piping (1993-07-01 ~ ; GA15DS) |
| 01555-00281 | CLAMP-HOSE | Water hose & piping (1993-07-01 ~ ; GA15DS) |
| 08120-81633 | Bolt-hexagon | Water hose & piping (1993-07-01 ~ ; GA15DS) |
| 14055-53Y02 | Hose-Water | Water hose & piping (1993-07-01 ~ ; GA15DS) |
| 16439-42L00 | Clamp-Hose, A | Water hose & piping (1993-07-01 ~ ; GA15DS) |
| 16439-56S00 | Clamp-Hose | Water hose & piping (1993-07-01 ~ ; GA15DS) |
| 16439-V5000 | Clamp-Hose A | Water hose & piping (1993-07-01 ~ ; GA15DS) |
| 21021-53Y00 | Pipe-Water | Water hose & piping (1993-07-01 ~ ; GA15DS) |
| 21021-F4110 | Pipe-Water | Water hose & piping (1993-07-01 ~ ; GA15DS) |
