Search › Model › Y10X
Y10X

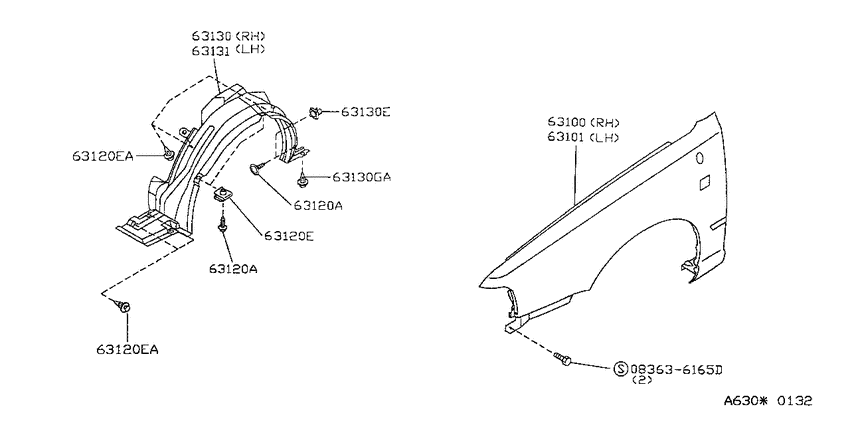

Front fender & fitting (1993-07-01 ~ ; V/4D) 5
| # | OEM | Part name |
|---|---|---|
| 63100 | 63112-F4130 | Fender-Front, Rh |
| 63101 | 63113-F4132 | Fender-Front, Lh |
| 63130 | 63842-60R00 | Protector-Front Fender, Rh |
| 63131 | 63843-60R00 | Protector-Front Fender, Lh |
| 83636165 | 08363-6165D | Rope & Hook |
| OEM | Part name | Category |
|---|---|---|
| 08363-6165D | Rope & Hook | Front fender & fitting (1993-07-01 ~ ; V/4D) |
| 63112-F4130 | Fender-Front, Rh | Front fender & fitting (1993-07-01 ~ ; V/4D) |
| 63113-F4132 | Fender-Front, Lh | Front fender & fitting (1993-07-01 ~ ; V/4D) |
| 63842-60R00 | Protector-Front Fender, Rh | Front fender & fitting (1993-07-01 ~ ; V/4D) |
| 63843-60R00 | Protector-Front Fender, Lh | Front fender & fitting (1993-07-01 ~ ; V/4D) |
