Search › Model › Y10X
Y10X

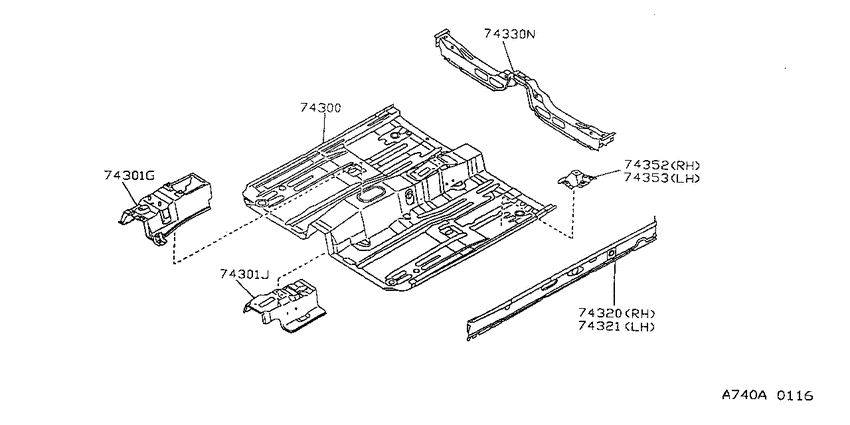

Floor panel (1993-07-01 ~ ; V/4D) 12
| # | OEM | Part name |
|---|---|---|
| 74300 | 74312-F4130 | フロア,フロント |
| 74300 | 01658-00421 | PLUG |
| 74301 | 74370-60R00 | Reinforce-Transmission Control |
| 74301 | 74370-69R30 | レインフオ-ス,トランスミツシヨン コントロ-ル |
| 74301 | 74354-50Y00 | Reinforce-Hand Brake & Seat Belt |
| 74320 | 76450-73R30 | シル,インナ- rh |
| 74320 | 76450-86R00 | Sill-Inner, Rh |
| 74321 | 76451-73R30 | シル,インナ- lh |
| 74321 | 76451-86R00 | Sill-Inner, Lh |
| 74330 | 74330-50Y00 | Member Assy-Cross 2Nd |
| 74352 | 74350-50J00 | Bracket-Front Seat Mounting, Outer Rh |
| 74353 | 74351-50J00 | Bracket-Front Seat Mounting, Outer Lh |
| OEM | Part name | Category |
|---|---|---|
| 01658-00421 | PLUG | Floor panel (1993-07-01 ~ ; V/4D) |
| 74312-F4130 | フロア,フロント | Floor panel (1993-07-01 ~ ; V/4D) |
| 74330-50Y00 | Member Assy-Cross 2Nd | Floor panel (1993-07-01 ~ ; V/4D) |
| 74350-50J00 | Bracket-Front Seat Mounting, Outer Rh | Floor panel (1993-07-01 ~ ; V/4D) |
| 74351-50J00 | Bracket-Front Seat Mounting, Outer Lh | Floor panel (1993-07-01 ~ ; V/4D) |
| 74354-50Y00 | Reinforce-Hand Brake & Seat Belt | Floor panel (1993-07-01 ~ ; V/4D) |
| 74370-60R00 | Reinforce-Transmission Control | Floor panel (1993-07-01 ~ ; V/4D) |
| 74370-69R30 | レインフオ-ス,トランスミツシヨン コントロ-ル | Floor panel (1993-07-01 ~ ; V/4D) |
| 76450-73R30 | シル,インナ- rh | Floor panel (1993-07-01 ~ ; V/4D) |
| 76450-86R00 | Sill-Inner, Rh | Floor panel (1993-07-01 ~ ; V/4D) |
| 76451-73R30 | シル,インナ- lh | Floor panel (1993-07-01 ~ ; V/4D) |
| 76451-86R00 | Sill-Inner, Lh | Floor panel (1993-07-01 ~ ; V/4D) |
